HT 3196 i-FRAME
14Pages

{{requestButtons}}

Catalog excerpts

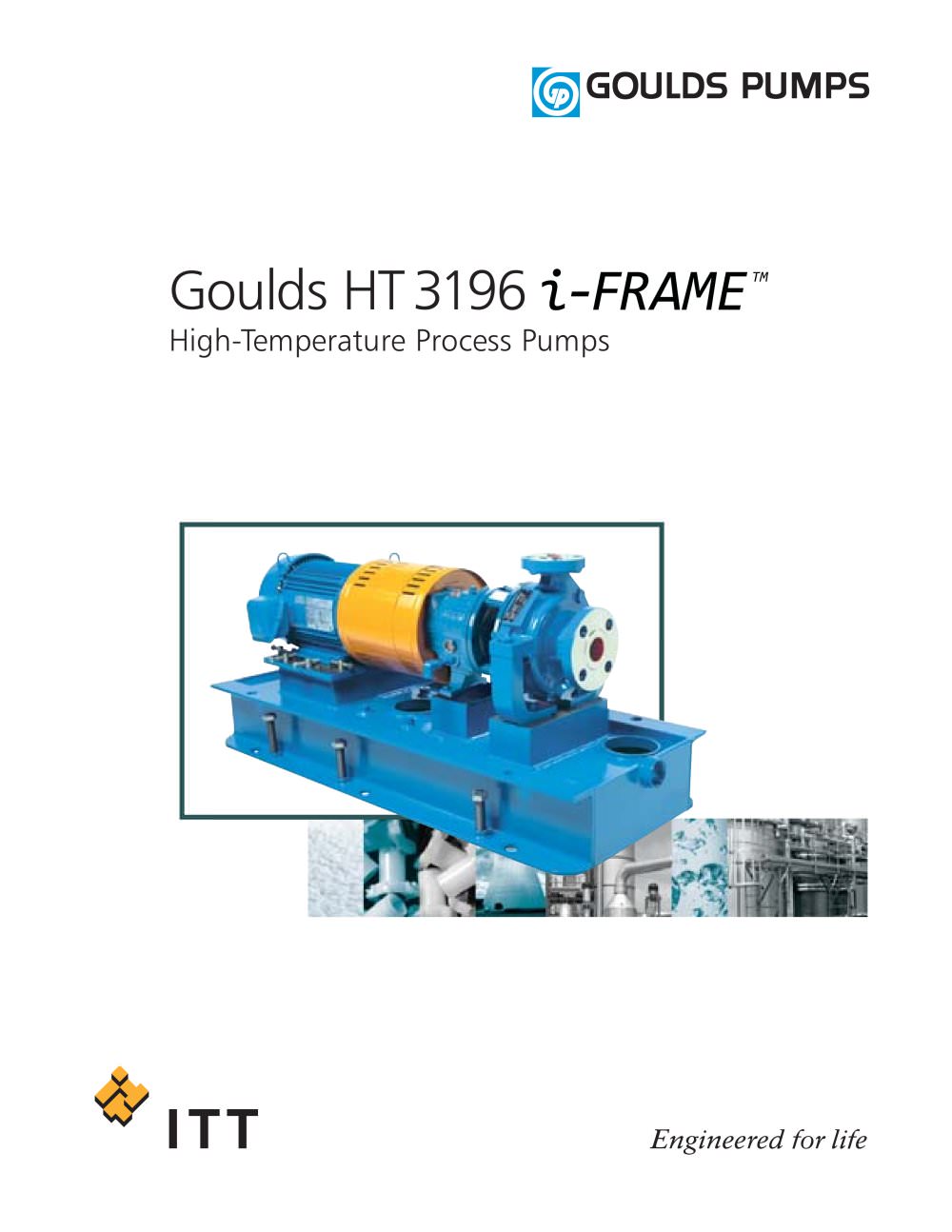

HT 3196 i-FRAME - 1

Goulds HT 3196 High-Temperature Process Pumps

Open the catalog to page 1
HT 3196 i-FRAME - 2

Global ANSI Process Pump Leader Introducing the newest member to the world’s most popular ANSI pump family... HT 3196 Goulds HT 3196 Severe Duty Process Pump Capacities to 4,500 gpm (1,023 m3/hr.) Heads to 925 ft (282m) Temperatures up to 700°F (372°C) Pressures up to 450 Psig (3,102 kPa) Material of Construction • Carbon Steel • Duplex SS (CD4MCu) • Ductile Iron • Alloy 20 • 316SS Stainless Steel • Hastelloy C Performance Features for Extreme Temperatures Extended Pump Life • Centerline mounted design allows bi-directional thermal expansion which maintains shaft alignment for improved seal...

Open the catalog to page 2
HT 3196 i-FRAME - 3

Goulds HT 3196 3 • Centerline-mounted casing • ANSI Class 300 RF flanges • Graphite casing gasket • Graphite impeller O-ring • High temperature bolting • Stainless steel shaft • Finned tube oil cooler Optimized Performance At High Operating Temps Up To 700° F (372° C) The HT 3196 is furnished with the following standard features: The HT 3196 delivers... Thermal expansion due to high temperature process fluids handling is optimally controlled with centerline mounted casings. Centerline mounting minimizes shaft misalignment since the casing can expand bi-directionally. This same feature...

Open the catalog to page 3
HT 3196 i-FRAME - 4

The Model HT 3196 is completely interchangeable dimensionally with the Model 3196. In addition, all internal components are common between models except for the casing. The power end provides common inventory for Models 3196, CV 3196, HT 3196, LF 3196, NM 3196, 3198, 3796, and 3996. Goulds HT 3196 4 High Temperature Oils and Heat Transfer Fluids The use of synthetic heat transfer liquids continues to expand as these liquids offer chemical stability and efficient heat transfer properties. In addition, the use of these liquids allows system pressures to be reduced for added safety and lower...

Open the catalog to page 4
HT 3196 i-FRAME - 5

Single and dual cartridge mechanical seals for moderate temperature applications. Single and dual cartridge mechanical seals for high temperature applications. Big BoreTM Taper BoreTM Plus Goulds HT 3196 5 Options High and Low Temperature Capability Goulds offers users a variety of options to meet specific plant and process requirements. JACKETED SEAL CHAMBER Maintains proper temperature control of sealing environment. Ideal for maintaining temperature for services such as molten sulphur and polymerizing liquids. Available in BigBoreTM and TaperBoreTM designs. CUSTOM FITTED INSULATED FABRIC...

Open the catalog to page 5
HT 3196 i-FRAME - 6

Goulds HT 3196 6 All ANSI B73.1 seal flush and cooling plans are available to control emission levels and meet seal installation requirements. Goulds can also provide other special arrangements of user preference. CPI PLAN 7311 By-pass flush lubricates single seal faces. CPI PLAN 7353 Pressurized circulation lubricates double seal faces. Engineered Seal Chamber Selection Guide SERVICE A C C B C B C C C C C C C A B C A C A C C C B A C C A A A C A — A A C A A C C A A A C — — A A A A A A A A B C A — — C C A C A A A Ideally suited Acceptable Not Recommended A B C Water- Based Liquids with Flush...

Open the catalog to page 6
HT 3196 i-FRAME - 7

Goulds HT 3196 7 Construction Details All dimensions in inches and (mm). Diameter at Impeller .75 (19) 1 (25) 1.25 (32) 1.5 (38) Diameter in Stuffing Box/Seal Chamber (Less Sleeve) 1.375 (35) 1.75 (45) 2.125 (54) 2.5 (64) Shaft (With Sleeve) 1.125 (29) 1.5 (38) 1.875 (48) 2 (51)* Diameter Between Bearings 1.5 (38) 2.125 (54) 2.5 (64) 3.125 (79) Diameter at Coupling .875 (22) 1.125 (29) 1.875 (48) 2.375 (60) Overhang 6.125 (156) 8.375 (213) 8.375 (213) 9.969 (253) Maximum Shaft Deflection 0.002 (0.05) Shaft Deflection Index (L3/D4) (With Sleeve) 143 116 48 62 (Less Sleeve) 64 63 29 25 Sleeve...

Open the catalog to page 7
HT 3196 i-FRAME - 8

RIGID FRAME FOOT Reduces effects of pipe loads on shaft alignment; pump vibration reduced. Especially significant for high process fluid operating temperatures. CONDITION MONITOR (PATENT PENDING) Constantly measures vibration and temperature at the thrust bearing. Colored LED’s indicate general pump health. Provides early warning of improper operation before catastrophic failure occurs. INPRO VBXX-D HYBRID LABYRINTH SEALS Prevents premature bearing failure caused by lubricant contamination or loss of oil. Stainless steel rotors for optimal performance in corrosive environments. CONTINUOUS...

Open the catalog to page 8
HT 3196 i-FRAME - 11

Goulds HT 3196 12 *LTi Power End features Duplex Angular Contact ® Teflon is a registered trademark for Fluoropolymer Resins, Films, Fibers manufactured by DuPont. 112A 136 122 332A 496 555 100 101 412A 184 351 358 239 761B 228 168A 333A 108 370 319 360F 469B 250 418 126 MATERIAL Item Number Part Name Carbon Steel Ductile Iron 316SS CD4MCu Alloy 20 Hastelloy C 100 Casing CS 316SS 316SS CD4MCu Alloy 20 Hastelloy C 101 Impeller Ductile Iron 316SS CD4MCu Alloy 20 Hastelloy C 106 Stuffing Box Packing Graphite 108 Frame Adapter Ductile Iron 112A Thrust Bearing Double Row Angular Contact* 122...

Open the catalog to page 11
HT 3196 i-FRAME - 14

PRO Services® Extending Equipment Life... Product Repair (all types and brands of rotating equipment) • Service Center Repair • Field Service • Parts Supply Reliability Improvement • Inventory Management • Replacement/Exchange • Turnkey Repair/Installation • Training Optimization of Assets • Predictive Analysis/Condition Monitoring • Root Cause Failure Analysis • Pump & System Assessments • Upgrades – Mechanical & Hydraulic • Maintenance Management/Contract Maintenance • Technical Expertise • Factory Trained Service Personnel • Quality • Fast Turnaround • Emergency Service – 24 hours/day, 7...

Open the catalog to page 14
