Goulds Models 5150/VJC Vertical Cantilever Bottom Suction Pumps

Goulds Models 5150/VJC Vertical Cantilever Bottom Suction Pumps
9Pages

Catalog excerpts

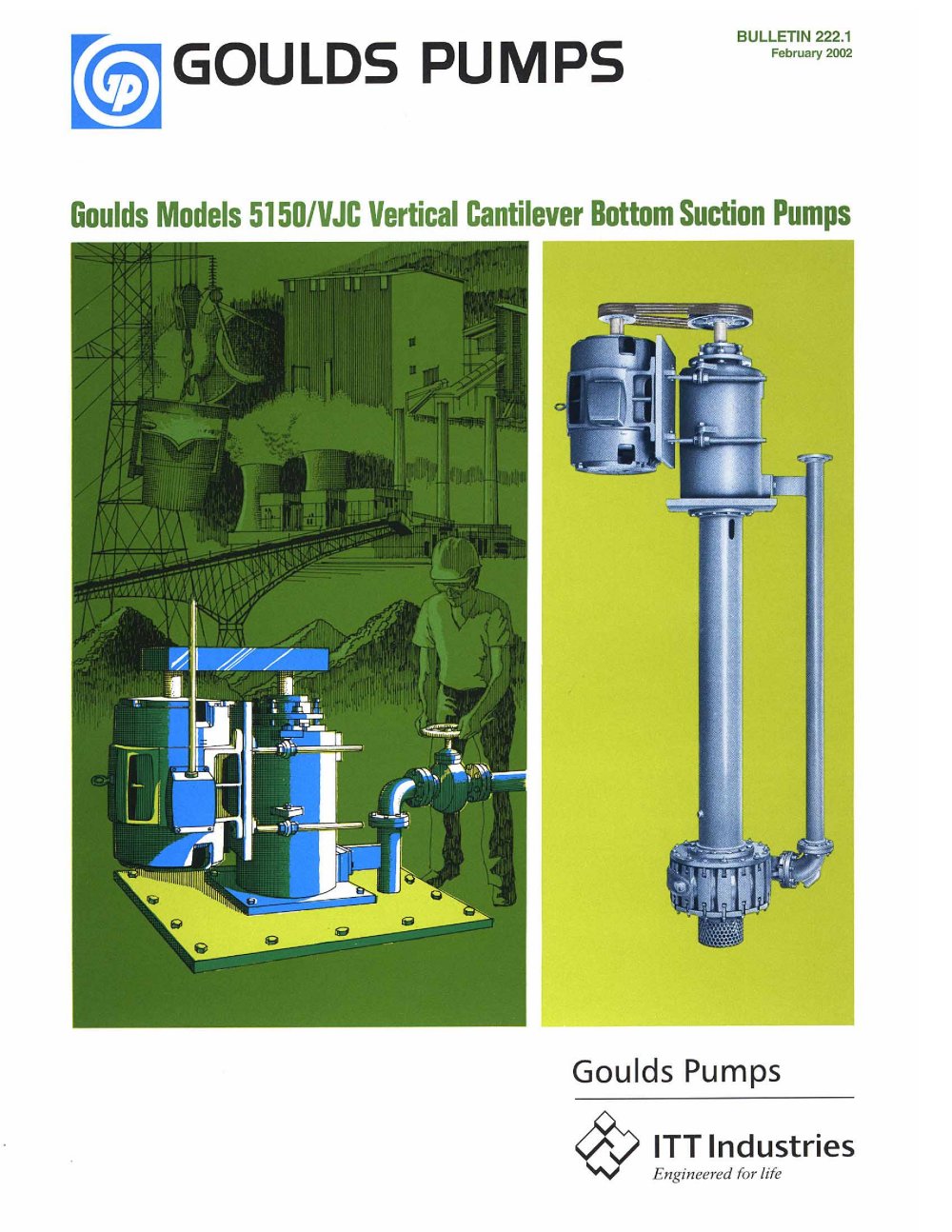

Goulds Models 5150/VJC Vertical Cantilever Bottom Suction Pumps - 1

GOULDS PUMPS Goulds Models 5150/VJC Vertical Cantilever Bottom Suction Pumps Goulds Pumps

Goulds Models 5150/VJC Vertical Cantilever Bottom Suction Pumps - 2

Goulds Models Vertical Cantilever Pumps Designed to Handle Corrosive/ Extremely Abrasive Slurries Design Features Cantilever Design No submerged bearings. External Impeller Adjustment Maintains pump Dual Volute Casing Eliminates radial unbalance; reduces wear. Materials of Construction Available in a wide range of corrosive/abrasive resistant alloys. Heavy-Duty Bearings Bottom Suction Removes solids from sump floor. Removable Suction Liner Maximum Interchangeability Steel Mills Power Plants Alumina Refineries Cement Mills Phosphoric Acid Plants Coal Prep Plants Phosphate Mines Mine Slurry

Open the catalog to page 2

Goulds Models 5150/VJC Vertical Cantilever Bottom Suction Pumps - 3

_ DIRECT OR BELT DRIVE Direct drive offers simplicity, ease costs. V-belt drive allows use of readily available standard speed motors along with full diameter impellers to meet desired operating conditions with greater pump efficiency. Belt drive also provides flexibility to meet changes in head/ capacity requirements. EXTERNAL IMPELLER Permits restoring running clearance after abrasive wear without dis- assembling pump. Maintains pump efficiency and performance over life HEAVY-DUTY BEARINGS Grease-lubricated ball bearings located over floor plate, completely sealed from contamination....

Open the catalog to page 3

Goulds Models 5150/VJC Vertical Cantilever Bottom Suction Pumps - 4

Application Flexibility Direct or Belt Drive Direct drive offers simplicity, ease of installation and minimum maintenance. Optional Floor Plate Optional floor plate enhances removal of pump from the sump. Custom designed floor plates can be provided to fit your sump. Horizontal Pumps Goulds makes a complete line of horizontal abrasive slurry pumps in sizes from 1" to 14" discharge with Pumps are available in side suction

Open the catalog to page 4

Goulds Models 5150/VJC Vertical Cantilever Bottom Suction Pumps - 5

Parts List and Materials of Construction Bearing Frame Bearing Span 1) Outboard bearings are duplex angular contact bearings on frame sizes C2. C3, C4, C5A. & C6A; and are double row tapered roller bearings on the C5 and C6 frames. 2) Inboard bearings are single row deep groove ball bearings on frame sizes C2, C3, C4, C5A, & C6A; and are spherical roller bearings on the C5 and C6 frames.

Open the catalog to page 5

Goulds Models 5150/VJC Vertical Cantilever Bottom Suction Pumps - 6

Sectional View Model VJC

Open the catalog to page 6

Goulds Models 5150/VJC Vertical Cantilever Bottom Suction Pumps - 7

Hydraulic Coverage MODEL 5150 PUMP SELECTION CHART

Open the catalog to page 7

Goulds Models 5150/VJC Vertical Cantilever Bottom Suction Pumps - 8

All dimensions in inches and (mm). Not to be used for construction.

Open the catalog to page 8

Goulds Models 5150/VJC Vertical Cantilever Bottom Suction Pumps - 9

One Cantilever Design—Four Pump Models Model 5100 Model 5150 Model VJC Model VHS Vertical Cantilever Vertical Cantilever Bottom Suction Pump Vertical Cantilever Bottom Suction Pump Vertical Cantilever Recessed Impeller Pump Designed for wide range of abrasive slurry services. Top suction design eliminates air binding, provides ease of maintenance. Handles Hydraulic Coverage abrasive slurry services. Bottom suction removes solids from sump floor. abrasive slurries. Designed to handle large or fibrous solids. Recessed, non-clog impeller — maximum solid size is equal to pump suction. Solids to...
