Goulds HSU, HSUL & JCU Submersible Pumps

Goulds HSU, HSUL & JCU Submersible Pumps
8Pages

Catalog excerpts

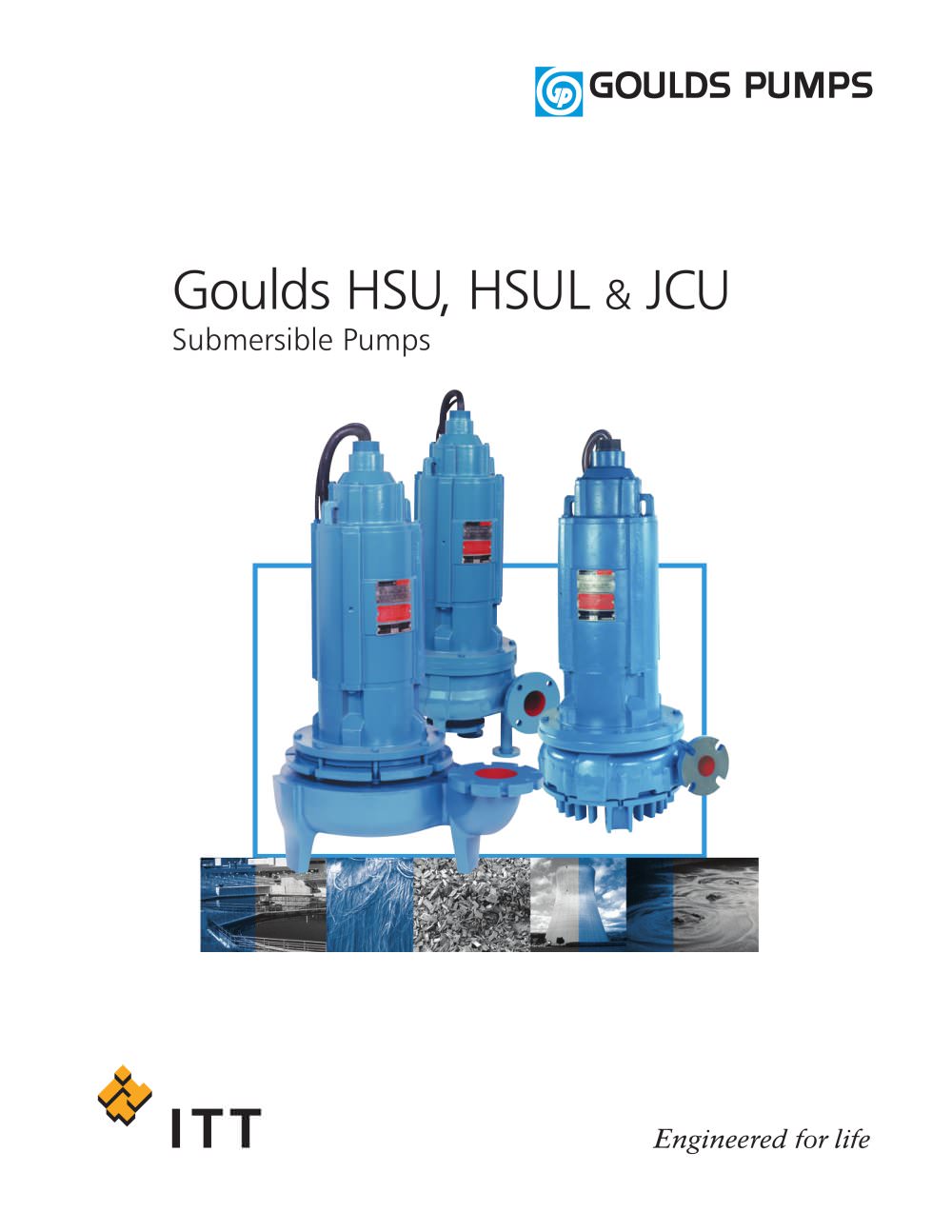

Goulds HSU, HSUL & JCU Submersible Pumps - 1

GOULDS PUMPS Submersible Pumps

Goulds HSU, HSUL & JCU Submersible Pumps - 2

Pump Selection Guide The Best Pump For Your Service Conditions Hydro-solids pumps. Recessed impeller easily accommodates large, stringy and fibrous solids sump application. SOLIDS TYPE Will handle large, stringy, fibrous and abrasive solids. Cast Iron Other Materials Available •Recessed Impeller •Concentric Casing •Integral Support •Heavy Duty Adapter •Integral Discharge Elbow Model HSUL Submersible recessed impeller pumps easily suction/discharge size. Versatile mounting allows SOLIDS TYPE Will handle large, stringy, fibrous, and abrasive solids. Cast Iron Other Materials Available...

Open the catalog to page 2

Goulds HSU, HSUL & JCU Submersible Pumps - 3

Submersible Hydro-Solids Pumps Designed to Handle Large, Fibrous/Stringy and Abrasive Solids Waste Treatment Plants General Service Sumps Fully Recessed Impeller Allows large, stringy or fibrous material to pass through the pump without Concentric Casing Concentric design facilitates flow of pumpage and solids through the pump while minimizing loads. Integral Support Three cast-in legs provide simple, stable support without additional parts. Heavy-Duty Motor Adapter Extra thick in critical areas. Extended shroud encircles impeller and protects casing from wear. Integral Discharge Elbow...

Open the catalog to page 3

Goulds HSU, HSUL & JCU Submersible Pumps - 4

Model HSUL Submersible Hydro-Solids Pumps Designed to Handle Large/Stringy and Abrasive Solids Waste Treatment Plants General Service Sumps Reclaim Sumps Power Plants Industrial Waste Sumps Design Features | Fully Recessed Impeller Allows large, stringy or fibrous material to pass through the pump without Concentric Casing Concentric design facilitates flow of pumpage and solids through the pump while minimizing loads. | Legs Bolt-on legs provide stability on sump floor. | Mounting Flexibility Flanged suction and horizontal discharge allow pump to stand or be mounted on optional slide rail....

Open the catalog to page 4

Goulds HSU, HSUL & JCU Submersible Pumps - 5

Heavy Duty Submersible Slurry Pumps Designed For Abrasive Sump Applications Fly Ash Chemical Waste Sumps Sand and Gravel Dirty Water Sumps Foundry Sand Design Features Heavy Duty Design Extra thick wall sections in high wear areas. Replaceable Suction Liner Easy to replace— protects casing from wear. Suction Cover Bell shaped intake reduces entrance losses and improves suction characteristics. Integral Strainer Suction cover has cast-on vertical tines to prohibit oversized solids from clogging pump. Pump Mounting Three cast-on legs give excellent support and stability. Optional slide rail...

Open the catalog to page 5

Goulds HSU, HSUL & JCU Submersible Pumps - 6

Options For Application Flexibility Slide Rail System Available on Models HSUL and JCU, Goulds slide rail system provides easy removal of pump unit without disturbing discharge piping. Unique slurry design utilizes a locking cam action with locator lugs and a large O-ring for positive sealing (no leakage) while allowing a tangential discharge for high efficiency. This is an important feature when pumping slurries; if a tight seal is not achieved, leakage can cause rapid and excessive wear of the mating flanges resulting in reduction of performance as well as increased maintenance costs....

Open the catalog to page 6

Goulds HSU, HSUL & JCU Submersible Pumps - 7

Submersible Motors Goulds submersible series motors are designed and built specifically for tough slurry pumping. Heavy-duty design features for reliability include: • UL and CSA Approved Explosion Proof • Epoxy encapsulated and butt-spliced cable entry system prevents liquid from entering top of motor and provides non-wicking design. • Permanently lubricated and sealed ball bearings. • F Class insulation and 1.15 service factor standard. • Tandem mechanical seals provide complete protection for motor internals. • Thermal protection standard. • Dual moisture probes provide early warning of...

Open the catalog to page 7

Goulds HSU, HSUL & JCU Submersible Pumps - 8

Dimensions All dimensions in inches and (mm). Not to be used for construction. Pump Size *Dimensions based on largest motor available for the given pump size. Visit our website at www.gouldspumps.com © 2007 Goulds Pumps, Incorporated A subsidiary of ITT Corporation
