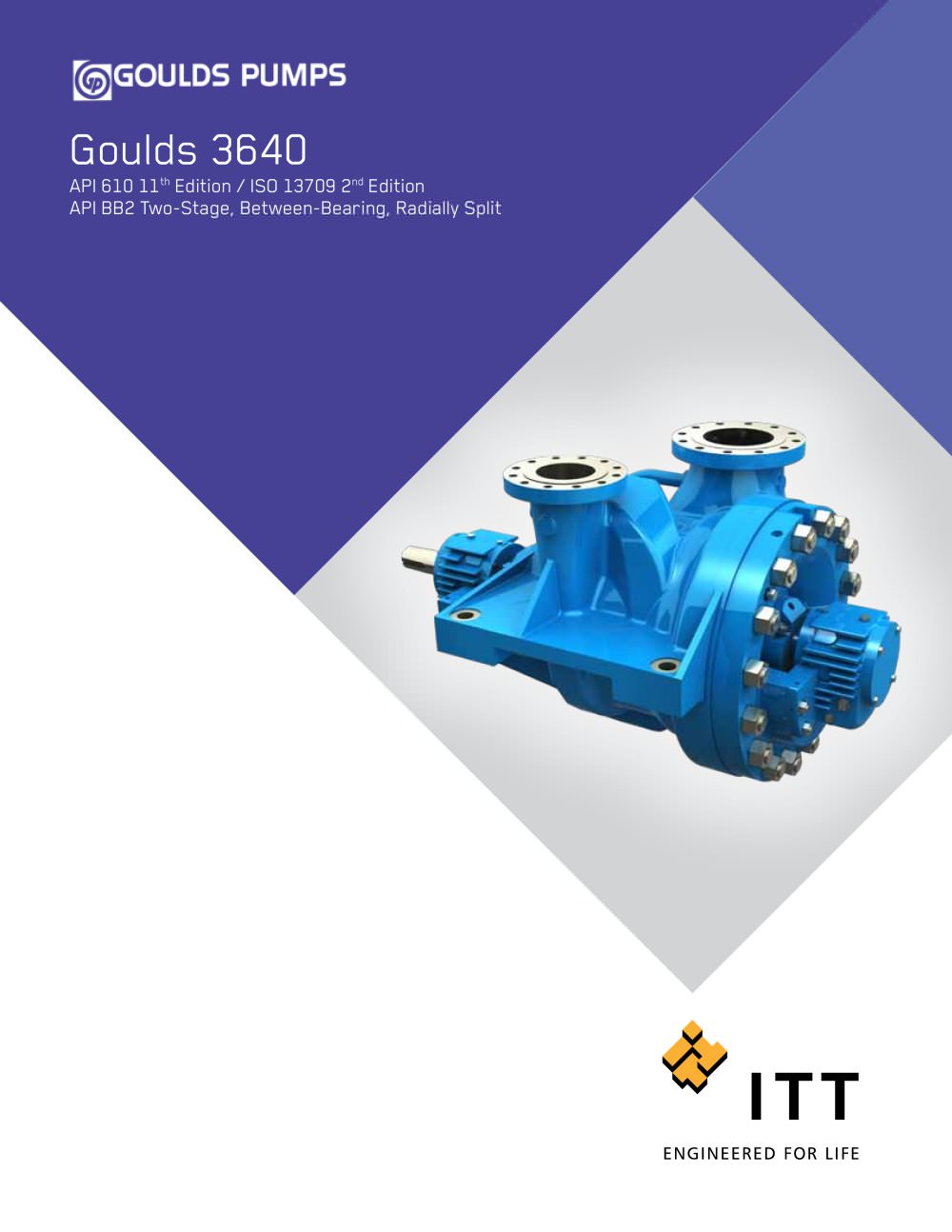

Goulds 3640 API 610 11th Edition / ISO 13709 2nd Edition API BB2 Two-Stage, Between-Bearing, Radially Split

Goulds 3640 A Leader in API Engineered Pump Package Solutions… Proven API Leadership ITT Goulds Pumps is a proven leader in API Pumps • Over 20,000 units installed 8000 HP / 6000 kW Testing Capability • Our expanded test facility can test your pump in the most demanding conditions. • Testing at rated speeds is critical to assess the impact of dynamic conditions including vibration. - Over 3,000 BB1 / BB2 / BB3 pumps • 40+ years of API expertise • Participating member on API 610 and API 682 committees Family of API Pumps ITT Goulds Pumps has a family of proven API pumps: • Overhung pumps •...

Open the catalog to page 2

Goulds 3640 High Temperature and Pressure Process Pumps that Meet or Exceed API 610 11th Edition / ISO 13709 2nd Edition Safety, reliability and versatility are the key words for our 2 stage, centerline mounted, between-bearing (BB2) API 610 process pump. Safety and Reliability We provide engineered solutions with true conformance to the latest API specifications including the stringent emissions containment per API 682. The result is a safe and rugged between-bearing API process pump designed for a 20-year life. Versatility Goulds Model 3640 between-bearings radially split process pumps...

Open the catalog to page 3

Goulds 3640 (API BB2) API 610 11th Edition / ISO 13709 2nd Edition API BB2 Two-Stage, Between-Bearing, Radially Split HEAVY DUTY SHAFT Minimum shaft deflection for extended seal bearing life. Sized to meet deflection and rotor dynamics requirements of API 610 / ISO 13709. RENEWABLE WEAR RINGS API 610 / ISO 13709 running clearances. Positively locked. heavy duty radial bearing standard CENTERLINE MOUNTED CASING Heavy duty mounting extensions accept API 610 / ISO 13709 nozzle loads and maintain pump alignment under extreme service conditions.

Open the catalog to page 4

CLASS 300 RF FLANGES STANDARD Other classes and facings optional. RADIALLY SPLIT CASING Designed specifically for high pressure / high temperature services. Fully confined controlled compression gaskets assure leak-proof sealing. CASING HEAD ON OUTBOARD END Allows removal of rotor without disturbing suction and discharge piping. ENLARGED SEAL CHAMBERS Conform to API 610 / ISO 13709 dimensional requirements. Allows use of wide range of API 682 / ISO 21049 cartridge mechanical seals to meet specific service conditions. HEAVY DUTY THRUST BEARING Duplex 40° angular contact standard. Ring oil...

Open the catalog to page 5

Hydraulic Coverage Flow Capacity – 50 Hz m^3/h 5 2 Pole 4 Pole 6 Pole Flow Capacity – 60 Hz Note: Hydraulics above represent 80% to 110% of best efficiency point (BEP). PRO Services® Engineered Upgrade Example of our PRO Services® Engineered upgrade capability. The following two-stage API BB2 Model 3640 was upgraded from an old edition of API 610 to the lastest (10th) edition of API.

Open the catalog to page 6

Reliability has no quitting time. PRO Services provides an array of services focused on reducing equipment total cost of ownership (TCO) and increasing plant output, including predictive monitoring, maintenance contracts, field service, engineered upgrades, inventory management, and overhauls for pumps and other rotating equipment. Parts & Inventory Operation Performance Repairs & Upgrades PRO Services provides OEM parts for Goulds Pumps, Bornemann Pumps, AC, Morris, Goyne, CB, HVC, UXN and ROV in a timely manner to meet end user requirements. Significant levels of inventory and quick...
