Goulds 3620 API-610 10th Edition/ISO 13709 API BB2 Single-Stage, Between-Bearing, Radially Split
8Pages

{{requestButtons}}

Catalog excerpts

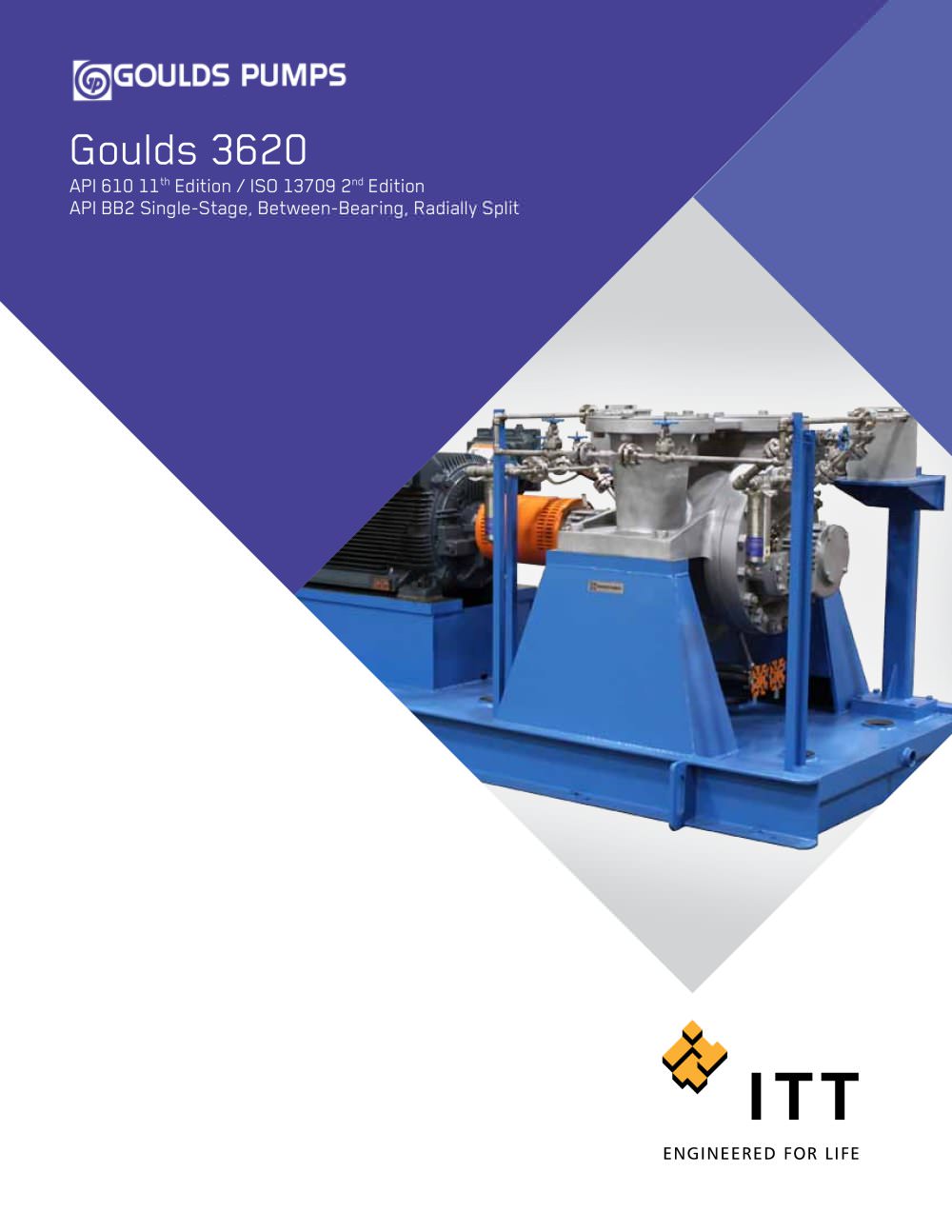

Goulds 3620 API-610 10th Edition/ISO 13709 API BB2 Single-Stage, Between-Bearing, Radially Split - 1

Goulds 3620 API 610 11th Edition / ISO 13709 2nd Edition API BB2 Single-Stage, Between-Bearing, Radially Split

Open the catalog to page 1
Goulds 3620 API-610 10th Edition/ISO 13709 API BB2 Single-Stage, Between-Bearing, Radially Split - 2

Goulds 3620 A Leader in API Engineered Pump Package Solutions… Proven API Leadership ITT Goulds Pumps is a proven leader in API Pumps • Over 20,000 units installed 8000 HP / 6000 kW Testing Capability • Our expanded test facility can test your pump in the most demanding conditions. • Testing at rated speeds is critical to assess the impact of dynamic conditions including vibration. - Over 3,000 BB1 / BB2 / BB3 pumps • 40+ years of API expertise • Participating member on API 610 and API 682 committees Family of API Pumps ITT Goulds Pumps has a family of proven API pumps: • Overhung pumps •...

Open the catalog to page 2
Goulds 3620 API-610 10th Edition/ISO 13709 API BB2 Single-Stage, Between-Bearing, Radially Split - 3

Goulds 3620 High Temperature and Pressure Process Pumps that Meet or Exceed 610 API 11th Edition / ISO 13709 2nd Edition Safety, reliability, and versatility are the key words for our single stage, centerline mounted, between-bearing, radially split API 610 process pump (API BB2). Goulds Model 3620 between-bearings radially split process pumps are designed for smooth, reliable operation and fully meet the specification requirements of ISO 13709 / API-610 to assure extended service life. Safety and Reliability We provide engineered solutions with true conformance to the latest API...

Open the catalog to page 3
Goulds 3620 API-610 10th Edition/ISO 13709 API BB2 Single-Stage, Between-Bearing, Radially Split - 4

Goulds 3620 (API BB2) API 610 11th Edition / ISO 13709 2nd Edition API BB2 Single-Stage, Between-Bearing, Radially Split heavy duty radial bearings standard CLASS 300 RF FLANGES STANDARD Other classes and facings optional. HEAVY DUTY SHAFT Minimum shaft deflection for extended seal and bearing life. Sized to meet deflection and rotordynamics requirements of API 610 / ISO 13709. RENEWABLE WEAR RINGS API 610 / ISO 13709 clearances. Positively locked. Standard feature. CENTERLINE MOUNTED CASING Heavy duty mounting extensions accept API 610 / ISO 13709 nozzle loads and maintain pump alignment...

Open the catalog to page 4
Goulds 3620 API-610 10th Edition/ISO 13709 API BB2 Single-Stage, Between-Bearing, Radially Split - 5

RADIALLY SPLIT CASING Designed specifically for high pressure / high temperature services. Fully confined controlled compression gasket assures leak-proof sealing. ENLARGED SEAL CHAMBERS Conform to API 610 / ISO 13709 dimensional requirements. Allows use of wide range of API 682 / ISO 21049 cartridge mechanical seals to meet specific service conditions. CASING HEAD ON OUTBOARD END Allows removal of rotor without disturbing driver or suction and discharge piping. Single head standard. Double head design optional. HEAVY DUTY THRUST BEARING Duplex 40° angular contact thrust bearings and...

Open the catalog to page 5
Goulds 3620 API-610 10th Edition/ISO 13709 API BB2 Single-Stage, Between-Bearing, Radially Split - 6

Hydraulic Coverage Flow Capacity – 50 Hz m^3/h 1000 Flow Capacity – 60 Hz Note: Hydraulics above represent 80% to 110% of best efficiency point (BEP). Custom Solutions Model 3620 6 ×10-13 custom designed with side-top nozzles for fuel oil service in Saudi Arabia.

Open the catalog to page 6
Goulds 3620 API-610 10th Edition/ISO 13709 API BB2 Single-Stage, Between-Bearing, Radially Split - 7

Reliability has no quitting time. PRO Services provides an array of services focused on reducing equipment total cost of ownership (TCO) and increasing plant output, including predictive monitoring, maintenance contracts, field service, engineered upgrades, inventory management, and overhauls for pumps and other rotating equipment. Parts & Inventory Operation Performance Repairs & Upgrades PRO Services provides OEM parts for Goulds Pumps, Bornemann Pumps, AC, Morris, Goyne, CB, HVC, UXN and ROV in a timely manner to meet end user requirements. Significant levels of inventory and quick...

Open the catalog to page 7
Goulds 3620 API-610 10th Edition/ISO 13709 API BB2 Single-Stage, Between-Bearing, Radially Split - 8

A Leader in API Engineered Pump Package Solutions © 2012 Goulds Pumps, Incorporated
