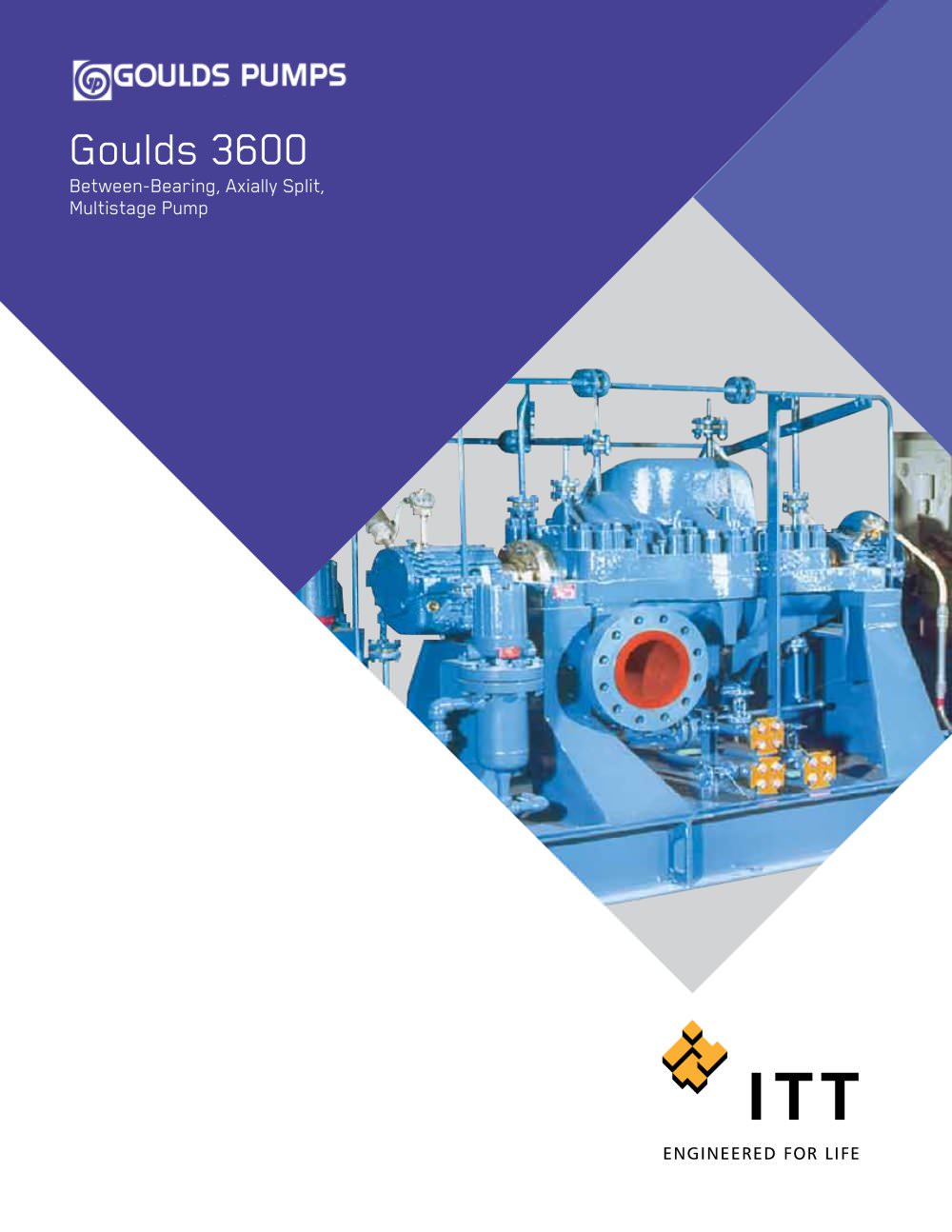

Goulds 3600 Between-Bearing, Axially-Split, Multi-Stage Pumps - 1

Goulds 3600 Between-Bearing, Axially Split, Multistage Pump

Open the catalog to page 1
Goulds 3600 Between-Bearing, Axially-Split, Multi-Stage Pumps - 2

Goulds 3600 A Leader in API Engineered Pump Package Solutions… Proven API Leadership ITT Goulds Pumps is a proven leader in API Pumps • Over 20,000 units installed 8000 HP / 6000 kW Testing Capability • Our expanded test facility can test your pump in the most demanding conditions. • Testing at rated speeds is critical to assess the impact of dynamic conditions including vibration. - Over 3,000 BB1 / BB2 / BB3 pumps • 40+ years of API expertise • Participating member on API 610 and API 682 committees Family of API Pumps ITT Goulds Pumps has a family of proven API pumps: • Overhung pumps •...

Open the catalog to page 2
Goulds 3600 Between-Bearing, Axially-Split, Multi-Stage Pumps - 3

Proven Leadership ITT Goulds Pumps is a proven leader in Multistage and API Pumps with several thousand engineered multistage pumps sold and 40+ years of multistage pump expertise. Heavy-Duty Multistage Pumps Designed for High-Head / High Capacity Services • Capacities to 8,500 GPM (1930 m³/h) • Heads to 9,000 feet (2740 m) • Temperatures to 400° F (205° C) • Pressures to 4,000 PSIG (275 bar) • API 610 API / ISO 13709 Latest Edition (API BB3 Compliance is Available) Design Features • Engineered Hydraulics: dense hydraulic coverage to better match your process for efficiency and reliability....

Open the catalog to page 3
Goulds 3600 Between-Bearing, Axially-Split, Multi-Stage Pumps - 4

Goulds 3600 Design Features for Optimum Reliability Low Vibration / Smooth Performance • Individual impellers and complete rotor assembly dynamically balanced. • Shrink fit of impellers to shaft ensures precise balancing of rotating assembly. • Precision cast impellers have equal volumes between vanes for reduced pressure pulsations. • Impellers are mounted on shaft with vane tips staggered for reduced pressure pulsations. Designed for API 610 11th Edition / ISO 13709 Services • Casing, nozzles and baseplate meet API 610 / ISO 13709 nozzle load requirements. • Impellers are shrink fit to...

Open the catalog to page 4
Goulds 3600 Between-Bearing, Axially-Split, Multi-Stage Pumps - 5

Goulds 3600 Optional Features for Application Flexibility Bearing Arrangements Oil lubricated ball radial and duplex thrust bearings are standard on the Model 3600. Ring oil lubricated sleeve radial and ball thrust or pressure lubricated sleeve radial and tilting pad thrust bearings can be furnished to meet customer or operating requirements. Hydrodynamic bearings offered with pressurized oil lube systems. Double Suction First Stage Impeller Available on 4-inch and larger discharge size pumps for services where NPSHA is limited. Shaft Sealing and Seal Chambers Seal chambers meet API 610 /...

Open the catalog to page 5
Goulds 3600 Between-Bearing, Axially-Split, Multi-Stage Pumps - 6

Model 3600 Between-Bearing, Axially Split, Multistage Pump SINGLE ROW BOLTING All nuts located on top for ease of maintenance. DYNAMICALLY BALANCED IMPELLERS AND ASSEMBLED ROTATING ELEMENT For smooth vibration-free operation. Impellers staggered on shaft to minimize vane-pass vibration. Rotor and impeller balanced to stringent ISO 1940 Grade 1.0 (exceeds API minimum). HEAVY DUTY BEARINGS Oil lubricated ball radial and duplex thrust standard; sleeve radial / ball thrust also available, or pressure lubricated sleeve radial and tilt pad thrust. DOUBLE SUCTION FIRST STAGE IMPELLER Available for...

Open the catalog to page 6
Goulds 3600 Between-Bearing, Axially-Split, Multi-Stage Pumps - 7

COMPACT CROSSOVERS Accept wide range of sealing options including seals conforming to ISO 13709 / API 610, packing, cartridge and conventional mechanical seals. For streamlined fluid flow – minimum friction loss, maximum efficiency. PRECISION CAST IMPELLERS Investment cast impellers yield smooth, dimensionally consistent hydraulic passages which maximize efficiency; double suction first stage available for low NPSH applications. POSITIVELY DRIVEN IMPELLERS Key driven with shrink fit and secured against axial movement in both directions. Allows precise balancing of rotating element. OPPOSED...

Open the catalog to page 7
Goulds 3600 Between-Bearing, Axially-Split, Multi-Stage Pumps - 8

Goulds 3600 Hydraulic Coverage 60 Hz and 50 Hz Flow Capacity - 50 Hz 20 3000 Flow Capacity - 60 Hz Note: Hydraulics above represent 80% to 110% of best efficiency point (BEP). Pump Installations The Goulds Model 3600 is built to handle the toughest services in harsh environments. These pictures show demanding installations in the deserts of the Middle East and Australia.

Open the catalog to page 8
Goulds 3600 Between-Bearing, Axially-Split, Multi-Stage Pumps - 9

Parts List and Materials of Construction Item Part Name Carbon Steel Wear Ring Impeller ** Duplex SS/ S. Duplex Stellite 12 SS/ Stellite 6 Throttle Sleeve Center Sleeve Wear Ring Casing ** Throttle Bushing Stage Pieces (rings Center Bushing * 410 SS on S-6 when temperature exceeds 350°F (175°C) * Not utilized on 3700LF low flow pumps.

Open the catalog to page 9
Goulds 3600 Between-Bearing, Axially-Split, Multi-Stage Pumps - 10

Reliability has no quitting time. PRO Services provides an array of services focused on reducing equipment total cost of ownership (TCO) and increasing plant output, including predictive monitoring, maintenance contracts, field service, engineered upgrades, inventory management, and overhauls for pumps and other rotating equipment. Parts & Inventory Repairs & Upgrades PRO Services provides OEM parts for Goulds Pumps, Bornemann Pumps, AC, Morris, Goyne, CB, HVC, UXN and ROV in a timely manner to meet end user requirements. Significant levels of inventory and quick response capability...

Open the catalog to page 10
Goulds 3600 Between-Bearing, Axially-Split, Multi-Stage Pumps - 12

A Leader in API Engineered Pump Package Solutions © 2012 Goulds Pumps, Incorporated

Open the catalog to page 12
