Goulds Pumps
CV 3196 i-FRAME

CV 3196 i-FRAME

Product catalog summary

Overview: The Goulds CV 3196 is a non-clog process pump designed for handling solids with minimal degradation. It features a recessed impeller and concentric vortex casing, making it suitable for various industrial applications involving solids-laden fluids.

Specifications:

Capacities up to 2700 GPM (610 m3/h)
Heads up to 440 feet (134 m)
Temperatures up to 500°F (260°C)
Pressures up to 285 PSIG (1965 kPa)

Performance Features:

Extended pump life due to non-clog design and reduced wear.
Ease of maintenance with back pull-out design and interchangeable parts with Goulds Model 3196.
Safety features include ANSI B15.1 coupling guard.

Applications: Suitable for handling filter slurries, latex, polystyrene beads, crystal suspensions, and more.

Design and Operation:

Recessed impeller reduces radial loads by up to 85%, optimizing bearing and seal life.
Easy replacement or retrofit with existing ANSI pumps.
Designed to handle liquids with entrained air or gas.

Sealing Options: Offers a variety of sealing arrangements to meet ANSI B73.1M specifications, including packed box, single inside seal, and conventional double seal.

Monitoring and Reliability:

Patented condition monitor measures vibration and temperature, providing early warnings of potential failures.
Inpro VBXX-D hybrid bearing isolators prevent premature bearing failure.

Construction and Materials: Available in materials like ductile iron, CD4MCuN, Alloy 20, and Hastelloy, ensuring durability and resistance to corrosion.

Hydraulic Coverage: Detailed performance curves provided for various pump sizes and configurations.

Baseplate Mounting Options: Offers a range of mounting systems including cast iron, polymer concrete, and fabricated steel to meet different plant reliability requirements.

PRO Services®: Provides services like equipment repair, reliability improvement, and asset optimization to extend equipment life and improve performance.

Advancements in Pump Control: The document discusses advancements in pump control and protection technologies aimed at reducing energy consumption, increasing uptime, and decreasing maintenance costs. The focus is on optimizing pump performance through precise control of speed and torque, which enhances flow economy, reduces heat and vibration, and improves system reliability.

Simplified Pump Control: PumpSmart is designed to optimize pumping applications, capable of controlling a single pump or coordinating multiple pumps without an external controller.

Pump Protection: PumpSmart includes patented sensorless pump protection algorithms to safeguard pumps from upset conditions.

Smart Flow: Features a sensorless flow function for centrifugal pumps, capable of calculating flow within ±5% of the pump's rated flow.

Drive for the DCS: Unlike most VFDs, PumpSmart provides detailed insights into pump operations, enhancing process control and efficiency.

Pump Experts: PumpSmart incorporates pump-specific algorithms and leverages over 150 years of pump knowledge to manage pump systems effectively.

ProSmart Monitoring: ProSmart offers continuous machinery monitoring to preemptively identify issues, using wireless technology and advanced signal processing.

Key Features of ProSmart:

Continuous Data Acquisition: Collects vibration, temperature, and process conditions every five seconds.
Automatic Notification: Alerts users to machine distress, allowing for focused recovery efforts.
Advanced Diagnostic Tools: Provides advanced analysis capabilities beyond simple data collection.
Easy Deployment: Features plug-and-play sensors, wireless connectivity, and a robust enclosure for deployment in various plant areas.

Catalog excerpts

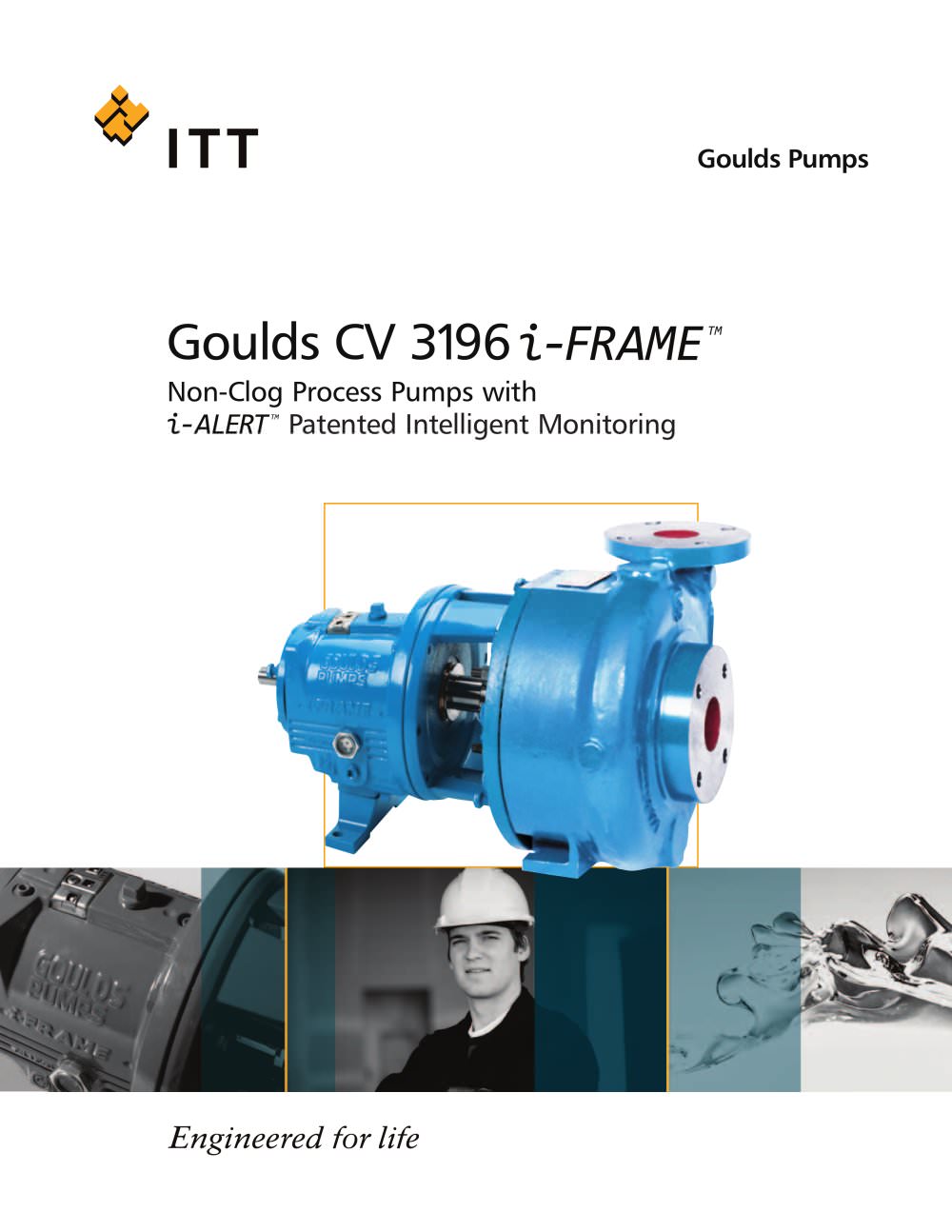

Goulds LF 3196 Goulds Pumps Goulds CV 3196 Non-Clog Process Pumps with Patented Intelligent Monitoring

Open the catalog to page 1

2 Goulds CV 3196 Recessed Impeller Process Pumps Designed for Non-Clog Solids Handling Capacities to 2700 GPM (610m3/h) Heads to 440 feet (134 m) Temperatures to 500°F (260°C) Pressures to 285 PSIG (1965 kPa) Performance Features for Solids Handling Services Extended Pump Life Concentric vortex casing for non-clog, minimum wear Recessed impeller for minimum solids degradation TaperBoreTM/BigBoreTM seal chambers power ends Ease of Maintenance Back pull-out design Parts interchangeable with Goulds Model 3196 External impeller adjustment Easy retrofit Safety ANSI B15.1 coupling guard Ductile iron...

Open the catalog to page 2

A CV 3196 retrofit kit (casing and impeller) easily converts an existing 3196. Reduced Radial Loads Trouble-Free Operation At Low Flows Many users throttle pumps to attain desired low flow performance. Because most pumps are not designed to operate continuously in this range, the resultant higher radial loads and increased shaft deflection lead to premature bearing and mechanical seal failure. An added benefit of recessed impeller pumps is reliable operation at low flows. The CV 3196 uses a concentric casing which reduces radial loads by as much as 85% compared to end suction expanding volute...

Open the catalog to page 3

Goulds CV 3196 5 Maximum Sealing Flexibility To meet ANSI B73.1M specifications, Goulds provides the best choice of stuffing box or seal chamber and a wide range of sealing arrangements. Your Goulds representative will gladly recommend the best sealing solution for your service…some of which are illustrated below. PACKED BOX • Teflon*–Impregnated Fiber Packing • Standard Bore Stuffing Box *E.I. DuPont reg. trademark SINGLE INSIDE SEAL • Flexibly Mounted Seal with Throat Bushing • BigBore™ Seal Chamber (use TaperBore™if throat bushing not required). CONVENTIONAL DOUBLE SEAL • BigBore™ Seal Chamber...

Open the catalog to page 4

6 7 SPREAD ORANGE SUB spread copy OPTIONAL FLUSH AND DRAIN CONNECTIONS Provide capability to clean impeller and casing without disturbing piping. Scheduled maintenance is easy. NON-CLOG CIRCULAR CASING Large open passageways prevent clogging when handling bulky, stringy or fibrous liquids. Circular volute reduces radial loads during low flow operation. DRAIN FLUSH CV 3196 Non Clog Process Pumps Featuring Patented Monitoring CONDITION MONITOR (Patent Pending) Constantly measures vibration and temperature at the thrust bearing. Colored LED’s indicate general pump health. Provides early warning...

Open the catalog to page 5

3196 Process Pumps CV 3196 Non-Clog Process Pumps HT 3196 High Temperature Process Pumps LF 3196 Low Flow ANSI Process Pumps 3198 PFA TEFLON®-Lined Process Pumps 3796 Self-Priming Process Pumps 3996 In-Line Process Pumps Goulds CV 3196 8 Sectional View 496 122 136 332A 228 319 469B 360 100 101 112 168 126 108 333A 250 351 184M Bonus Interchangeability Series Power Ends Fit 7 Different Process Pumps Minimize inventory, reduce downtime. 761B

Open the catalog to page 6

Goulds CV 3196 9 *E.I. DuPont Reg. Trademark **LTX Power End features Duplex Angular Contact Parts List and Materials of Construction Construction Details All dimensions in inches and (mm). Material Item Ductile Iron/ Hastelloy Number Part Name CD4MCuN Trim CD4MCuN Alloy 20 B & C 100 Casing Ductile Iron CD4MCuN Alloy 20 Hastelloy 101 Impeller CD4MCuN CD4MCuN Alloy 20 Hastelloy 105 Lantern Ring (Not Illustrated) Glass-Filled Teflon* 106 Stuffing Box Packing (Not Illustrated) Teflon* Impregnated Fibers 108 Frame Adapter Ductile Iron 112 Thrust Bearing Double Row Angular Contact Conrad** 122 Shaft—Less...

Open the catalog to page 7

Goulds CV 3196 11 Dimensions CV 3196 All dimensions in inches and (mm). Not to be used for construction. 3.75 A B X D Bare Pump Group Size A B D X Weight Lbs. (kg) 2x2-8 15.38 (391) 2.75 (70) 5.25 (133) 6.50 (165) 140 (65) 2x2-10 21.75 (552) 3.50 (89) 8.25 (210) 8.50 (216) 260 (120) 3x3-10 22.50 (572) 4.25 (108) 8.25 (210) 9.00 (229) 280 (125) 2x3-13 22.38 (568) 4.12 (105) 10.00 (254) 10.50 (267) 360 (165) 3x4-13 22.81 (579) 4.12 (105) 10.00 (254) 10.50 (267) 410 (185) 4x6-13 23.13 (588) 4.75 (121) 10.00 (254) 11.50 (292) 430 (194) 6x8-15 32.5 (826) 6.5 (165) 14.5 (368) 14.00 (356) 486 (219)...

Open the catalog to page 9

Goulds L3F1 9381 96 PRO Services® Extending Equipment Life... Product Repair (all types and brands of rotating equipment) • Service Center Repair • Field Service • Parts Supply Reliability Improvement • Inventory Management • Replacement/Exchange • Turnkey Repair/Installation • Training Optimization of Assets • Predictive Analysis/Condition Monitoring • Root Cause Failure Analysis • Pump & System Assessments • Upgrades – Mechanical & Hydraulic • Maintenance Management/Contract Maintenance • Technical Expertise • Factory Trained Service Personnel • Quality • Fast Turnaround • Emergency Service...

Open the catalog to page 11
