ChemBase PLUS™ Polymer Concrete Baseplate


Catalog excerpts

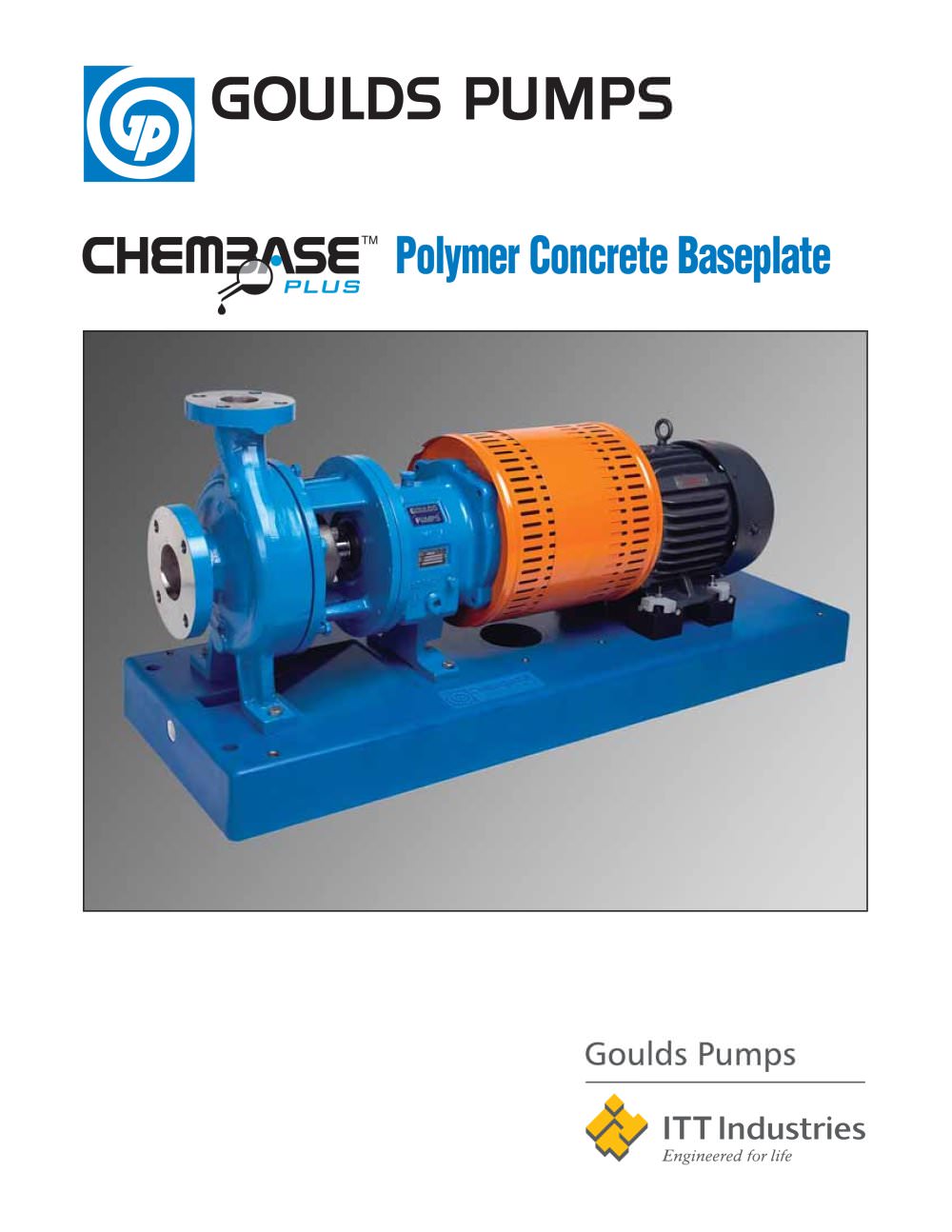

ChemBase PLUS™ Polymer Concrete Baseplate - 1

Polymer Concrete Baseplate TM

Open the catalog to page 1
ChemBase PLUS™ Polymer Concrete Baseplate - 2

Before you buy any baseplate, consider the total installed costs The ChemBase PlusTM Advantage • Flat mounting surfaces to .002 inch per foot for easy, accurate alignment. • High strength proprietary material bonding process ensures highest strength and rigidity of any polymer baseplate on the market today. • Superior resistance to twisting and diaphragming. • Corrosion resistant to most chemicals. • Low risk, low cost installation as it eliminates problems caused by improper grouting. • Most bases supplied standard with multiple inserts for various motor frame sizes. • ASME/ANSI-1991...

Open the catalog to page 2
ChemBase PLUS™ Polymer Concrete Baseplate - 3

Goulds ChemBase PlusTM - The Logical Alternative! Most chemical pumps today run on corrosive services or in highly corrosive environments. When considering the purchase of a new pump don’t overlook the most important item - the baseplate! Without a solid, easy to install, corrosion resistant baseplate you increase the risk of problems on site as well as increase your overall costs! Goulds ChemBase PlusTM baseplates are made from state of the art polymers, which offer exceptional flatness, vibration damping, corrosion resistance and rigidity at a fraction of the cost of a steel base. The...

Open the catalog to page 3
ChemBase PLUS™ Polymer Concrete Baseplate - 4

For more information, call your nearest Goulds sales office or representative, or visit our website at Optional Configurations Form No. BRCHEMBASE 6/05 © copyright 2005 Goulds Pumps, Incorporated, a subsidiary of ITT Industries, Inc. Printed in U.S.A. ChemBase Plus is a Trademark of Goulds Pumps, Inc. • Riser Block Kit • Epoxy/Insert Kit • BiD Adjuster • Close-Coupled • Long-Coupled • Stilt-Mounted ACIDS ALKALINES SOLVENTS, CHEMICALS 1-50% Acetic 1-100% Sodium Hydroxide Acetone 1-10% Chromic 1-20% Ammonium Hydroxide Acetaldehyde 1-100% Hydrochloric 1-50% Potassium...

Open the catalog to page 4
