TIPPING SKIP MULTI-USE GIE

Product catalog summary
Overview: The document provides technical specifications and features of a versatile and maneuverable tipping skip designed for multi-use applications. It includes details on capacity, dimensions, and movement options, as well as safety and operational features.
Specifications:
  • Capacity: Ranges from 480 to 2500 litres.
  • Material: Bin made from 3 and 4 mm sheet metal; rigid tubular chassis from 4 and 5 mm sheet metal.
  • Dimensions: Provided in millimeters for various models, with bin heights of 700 mm, 1000 mm, and 1200 mm.
  • Load Capacity: Up to 1800 kg.
  • Castors: Models include 2 fixed and 2 pivoting aluminum/polyurethane castors with a handrail.
Features:
  • Automatic Release: Unlocks and tips on contact with an anti-slip device; manual tipping lever included.
  • Safety: Includes a safety latch for transport and a safety chain.
  • Design: Non-deformable bearing joints with grease nipples and rubber bumpers to dampen the end of the tipping process.
  • Customization: Fork sleeves aperture and spacing can be modified on request.
  • Options: Available with or without wheels; pedestal-mounted models (except 480 L) can be used with pallet trucks.
Additional Information: The document includes a contact for further inquiries and a video reference for more details.
See more

Catalog excerpts

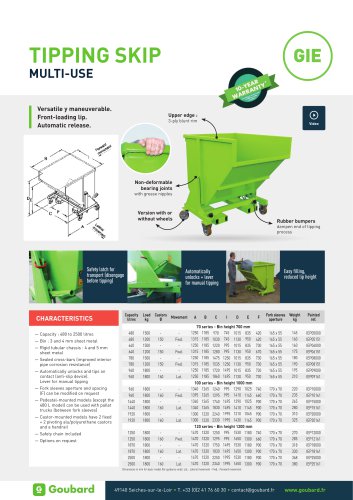

TIPPING SKIP MULTI-USE GIE-1

TIPPING SKIPMULTI-USE I Versatile y maneuverable. Front-loading lip. Automatic release. Non-deformable bearing joints with grease nipples Version with or without wheels Easy filling, reduced lip height Safety latch for transport (disengage before tipping) CHARACTERISTICS — Rigid tubular chassis : 4 and 5 mm sheet metal — Sealed cross-bars (improved interior pipe corrosion resistance) — Automatically unlocks and tips on contact (anti-slip device). Lever for manual tipping — Fork sleeves aperture and spacing (F) can be modified on request — Pedestal-mounted models (except the 480 L model) can be used with pallet trucks (between fork sleeves) — Castor-mounted models have 2 fixed + 2 pivoting alu/polyurethane castors and a handrail — Safety chain included Capacity Load Castors Fork sleeves Weight Painted litres kg 0 Movement A B C ' D E F aperture kgg ref. Dimensions in mm for basic model (for guidance only). Lat. : Lateral movement - Fwd. : Forward movement.

 Open the catalog to page 1
