FRU-SRF

FRU-SRF
1 / 1 PageView full catalog

FRU-SRF

Product catalog summary
Specifications:
  • The maximum extension length (B1) is calculated using the formula: B1 = Length of the original truck forks (B) / 0.6, as per ISO 13284:2022 Standard.
  • Fork extensions feature a sliding insertion mechanism and allow for quick fitting and removal without manual intervention.
  • Station fork centre distance is 800 mm, and the station sleeve section measures 170 x 70 mm.
  • Extensions are custom-made and include patented innovations recognized by the Concours Lépine.
Procedures:
  • Fork insertion is achieved through a sliding action, facilitating easy storage and handling.
  • Extensions are equipped with sleeves for manual handling or transport by forklift truck.
Norms and Standards:
  • Fully compliant with ISO 13284:2022 Standard, which includes additional requirements for steel strength since 2022.
  • GOUBARD is noted as one of the few manufacturers offering fully compliant products.
Product Characteristics:
  • Automatic locking mechanism and open underneath design for fork extensions.
  • Available in various sizes and weights, with specific painted references for each model.
  • 10-year warranty available under terms and conditions of sale.
Key Data from Tables:
  • Max fork dimensions and extension sleeve aperture are specified for different models, with lengths ranging from 1500 mm to 1900 mm and weights from 39 kg to 64 kg.
  • Load capacities range from 1440 kg to 1690 kg, with front width consistently at 980 mm and side height varying between 1200 mm and 1300 mm.
Additional Information:
  • Contact details for GOUBARD are provided for further inquiries.
See more

Catalog excerpts

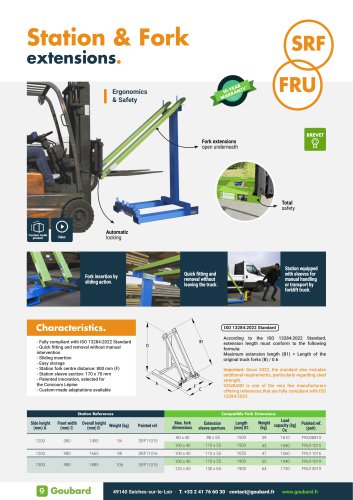

FRU-SRF-1

Ergonomics & Safety Automatic Fork extensions open underneath Fork insertion by sliding action. Station equipped with sleeves for manual handling or transport by forklift truck. Characteristics. - Fully compliant with ISO 13284:2022 Standard - Quick fitting and removal without manual intervention - Sliding insertion - Easy storage - Station fork centre distance: 800 mm (F) - Station sleeve section: 170 x 70 mm - Patented innovation, selected for the Concours Lepine - Custom-made adaptations available (ISO 13284:2022 Standard") According to the ISO 13284:2022 Standard, extension length must conform to the following formula: Maximum extension length (B1) = Length of the original truck forks (B) / 0.6 Important: Since 2022, the standard also includes additional requirements, particularly regarding steel strength. GOUBARD is one of the very few manufacturers offering references that are fully compliant with ISO 13284:2022. Goubard 49140 Seiches-sur-le-Loir ■ T. +33 2 41 76 60 30 ■ [email protected] www.goubard.fr

 Open the catalog to page 1
