Catalog excerpts

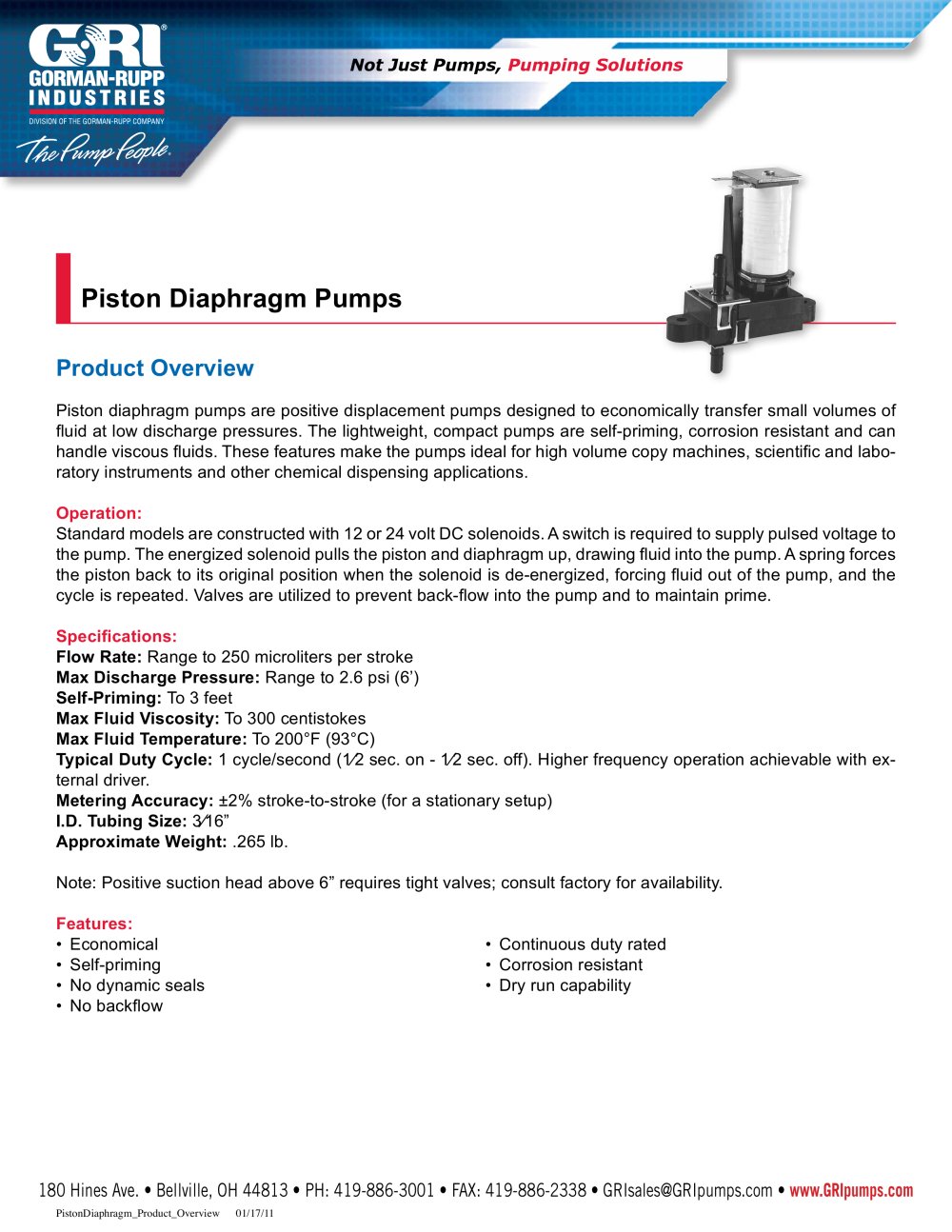

PistonDiaphragm_Product_Overview 01/17/11 180 Hines Ave. • Bellville, OH 44813 • PH: 419-886-3001 • FAX: 419-886-2338 • GRIsales@GRIpumps.com • www.GRIpumps.com Piston Diaphragm Pumps Product Overview Piston diaphragm pumps are positive displacement pumps designed to economically transfer small volumes of fluid at low discharge pressures. The lightweight, compact pumps are self-priming, corrosion resistant and can handle viscous fluids. These features make the pumps ideal for high volume copy machines, scientific and laboratory instruments and other chemical dispensing applications. Operation: Standard models are constructed with 12 or 24 volt DC solenoids. A switch is required to supply pulsed voltage to the pump. The energized solenoid pulls the piston and diaphragm up, drawing fluid into the pump. A spring forces the piston back to its original position when the solenoid is de-energized, forcing fluid out of the pump, and the cycle is repeated. Valves are utilized to prevent back-flow into the pump and to maintain prime. Specifications: Flow Rate: Range to 250 microliters per stroke Max Discharge Pressure: Range to 2.6 psi (6’) Self-Priming: To 3 feet Max Fluid Viscosity: To 300 centistokes Max Fluid Temperature: To 200°F (93°C) Typical Duty Cycle: 1 cycle/second (12 sec. on - 12 sec. off). Higher frequency operation achievable with external driver. Metering Accuracy: ±2% stroke-to-stroke (for a stationary setup) I.D. Tubing Size: 316” Approximate Weight: .265 lb. Note: Positive suction head above 6” requires tight valves; consult factory for availability. Features: • Economical • Self-priming • No dynamic seals • No backflow • Continuous duty rated • Corrosion resistant • Dry run capability

Open the catalog to page 1

PistonDiaphragm_Product_Overview 01/17/11 180 Hines Ave. • Bellville, OH 44813 • PH: 419-886-3001 • FAX: 419-886-2338 • GRIsales@GRIpumps.com • www.GRIpumps.com • Fixed flow up to 500 microliters per stroke for low heads • Fixed flow can be down to 100 microliters per stroke • Field adjustability with screw and locking nut • Alternate materials of construction • Stepper linear actuator can replace solenoid • Various solenoid voltages • Better repeatability OEM Options: To meet OEM specifications, the following features can be added: Contact Us Online Inquiry Dimensions in Inches (Dimensions...
