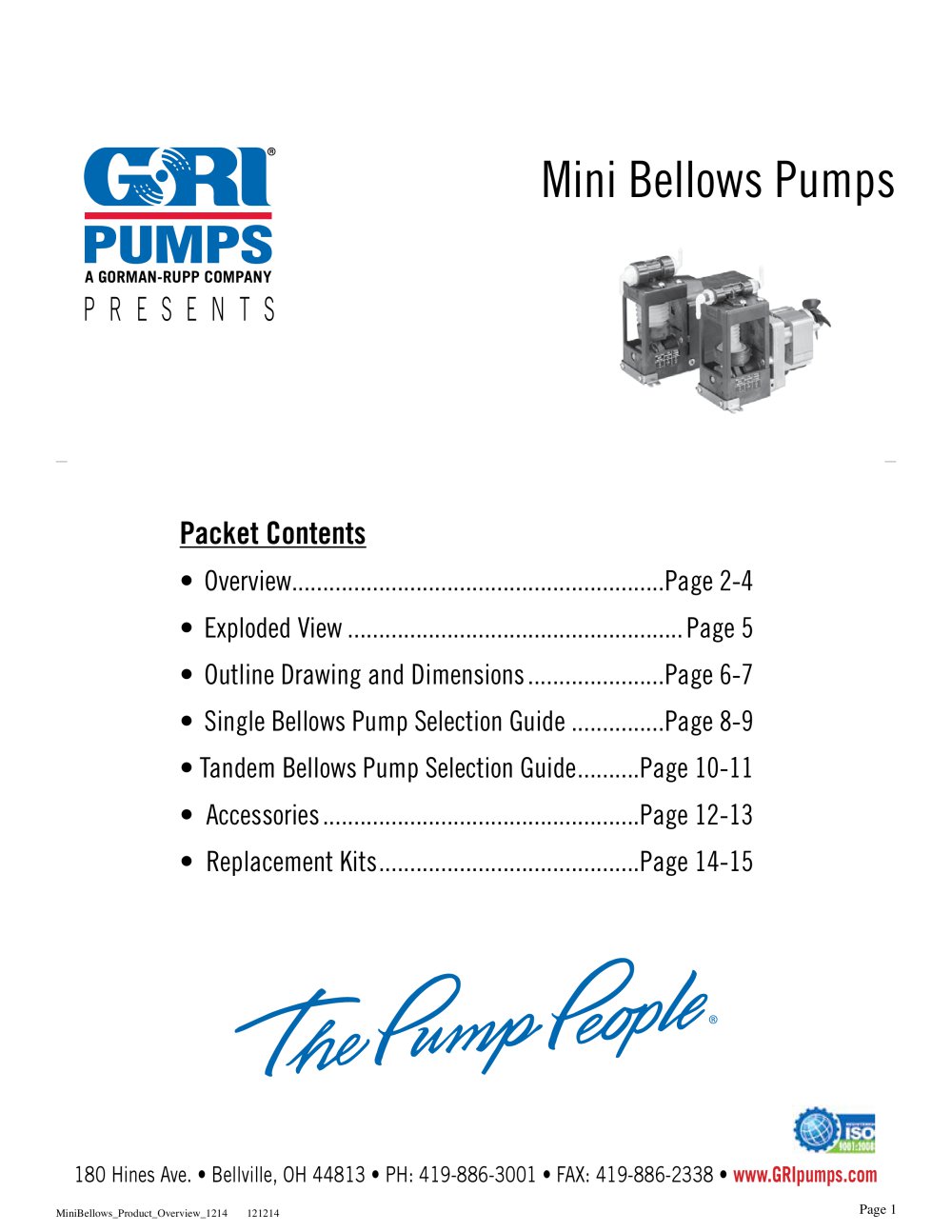

Mini Bellows Pumps A GORMAN-RUPP COMPANY 180 Hines Ave. • Bellville, OH 44813 • PH: 419-886-3001 • FAX: 419-886-2338 • www.GRIpumps.com MiniBellows_Product_Overview_1214

Mini Bellows Metering Pumps Product Overview Mini Bellows Metering Pumps are ideal for low flow, low pressure metering applications. The pump is constructed entirely of plastic and uses GRI’s time-proven bellows technology to provide an accurate chemically-resistant metering pump with a long life, at an economical price. Mini Bellows Metering Pump Operation: The Mini Bellows Metering Pumps operate on a positive displacement principle. The rotation of the motor shaft is transmitted into an up and down linear motion through an adjustable concentric crank mechanism. This motion provides a continuous...

Flow Adjustment: The ½” and ¾” bellows modules can be adjusted to 20% of maximum stroke length, while 1”, 1-1/2” and 2” bellows modules can be adjusted down to 10% of maximum stroke. Note: Best priming and metering accuracy occurs when the stroke length is 50% or greater. Standard Crank — Adjustment cannot be made while pump is operating. An adjusting screw changes the stroke length of an eccentric crank. Compact Bellows Metering Pump Specifications: Average Repeatability — From stroke-to-stroke ± 0.75% Flow Rates — Range to 270 ml/min, Tandem models range to 432 ml/min Max Discharge Pressure...

Features • Average repeatability from stroke-to-stroke, ±0.75% • Self-priming • Superior corrosion resistance • Simple flow adjustment • Dry run capability • No dynamic seals • Economical OEM Options GRI’s goal is to meet your special needs, whether it’s modifying a current product or designing a new pump according to your exact specifications. Our technical sales staff and engineering department are uniquely structured to quickly evaluate your application and create a solution specific to your pumping needs. GRI does not just build pumps, we build pumping solutions. Please contact us to discuss...

EXPLODED VIEW – MINI BELLOWS METERING PUMP TO ORDER REPLACEMENT PUMPS, OR KITS, CALL YOUR LOCAL GRI DISTRIBUTOR. 180 Hines Ave. • Bellville, OH 44813 • PH: 419-886-3001 • FAX: 419-886-2338 • www.GRIpumps.com MiniBellows_Product_Overview_1214

Single Model Weight of single mini bellows pump: 0.67 lb. ALTERNATIVE MOUNTING Single T-Head Model SUCTION PORT Dimensions in Inches (Dimensions in Millimeters) 180 Hines Ave. • Bellville, OH 44813 • PH: 419-886-3001 • FAX: 419-886-2338 • www.GRIpumps.com MiniBellows_Product_Overview_1214

Weight of 2-tandem mini bellows pump: 1.0 lb. Weight of 2-tandem mini bellows pump: 1.0 lb. BARBED COMPRESSION CONNECTORS .10 (2.54) I.D. .19 (4.83) WIDE MTG. SLOT 4-PLS. Dimensions in Inches (Dimensions in Millimeters) 180 Hines Ave. • Bellville, OH 44813 • PH: 419-886-3001 • FAX: 419-886-2338 • www.GRIpumps.com MiniBellows_Product_Overview_1214

Single Mini Bellows Pumps Pump Selection Guide A GORMAN-RUPP COMPANY p r e s e n t s Single Mini Bellows Pumps Selection Overview Select a bellows size that meets your pressure requirements. Select a model with the bellows size that provides your required flow while operating closest to full stroke capacity. Best metering accuracy occurs when bellows modules operate at 50% or more of maximum output. For 24 hour continuous duty service, use one of the heavy-duty models. Select a valve and O-ring combination and tubing connectors for each bellows from the selection charts. Specify duckbill valves...

Continued from previous page 3. Using Tubing Connector Chart G, select one T-code. CHART E SELECTED SINGLE MINI BELLOWS PUMPS Model Number Bellows Size For Elastomeric Tubing Size Connector Type Bellows Module Size Barbed Compression Barbed Compression Barbed Compression Barbed Compression Elbow Swivel, Barbed Elbow Swivel, Barbed Elbow Swivel, Barbed Elbow Swivel, Barbed Elbow Swivel, Barbed For flows of 1800 ml/mn and above. 1/2” I.D. tubing connectors recommended. *Use of 4mm connector is limited by flow rate; please contact factory with specifications. **Cost added for connector. Tubing Connectors...

Tandem Mini Bellows Pumps Pump Selection Guide A GORMAN-RUPP COMPANY p r e s e n t s Tandem Mini Bellows Pumps Selection Overview Select a bellows size that meets your pressure requirements. Select a model with the bellows size that provides your required flow while operating closest to full stroke capacity. Best metering accuracy occurs when bellows modules operate at 50% or more of maximum output. For 24 hour continuous duty service, use one of the heavy-duty models. Select a valve and O-ring combination and tubing connectors for each bellows from the selection charts. Specify duckbill valves...

Continued from previous page 3. Using Tubing Connector Chart G, select one T-code for each X-code chosen from Chart D. CHART F SELECTED TANDEM MINI BELLOWS PUMPS Model Number Bellows Size Barbed Compression Barbed Compression Bellows Module Size Connector Type For Elastomeric Tubing Size Barbed Compression Barbed Compression Elbow Swivel, Barbed Elbow Swivel, Barbed Elbow Swivel, Barbed Elbow Swivel, Barbed Elbow Swivel, Barbed For flows of 1800 ml/mn and above. 1/2” I.D. tubing connectors recommended. *Use of 4mm connector is limited by flow rate; please contact factory with specifications....

Bellows Pump MINI BELLOWS PUMPS Check and Foot Valves Check and foot valves are used to maintain a pump’s prime or to prevent backflow through a pump in applications with long suction lengths. Check valves can be positioned in-line on the suction or discharge side of the pump; foot valves on the suction side only. To order, refer to the chart on this page. Single Check Valve Opening Pressure: 1 psi (spring loaded) Materials in Contact with Solution: Body, valve seat, connectors, screen (149 Micron) — Polypropylene O-rings — EPT/EPDM, Viton®/Fluoroelastomer Spring — Hastelloy® C Options: 1⁄2"...
