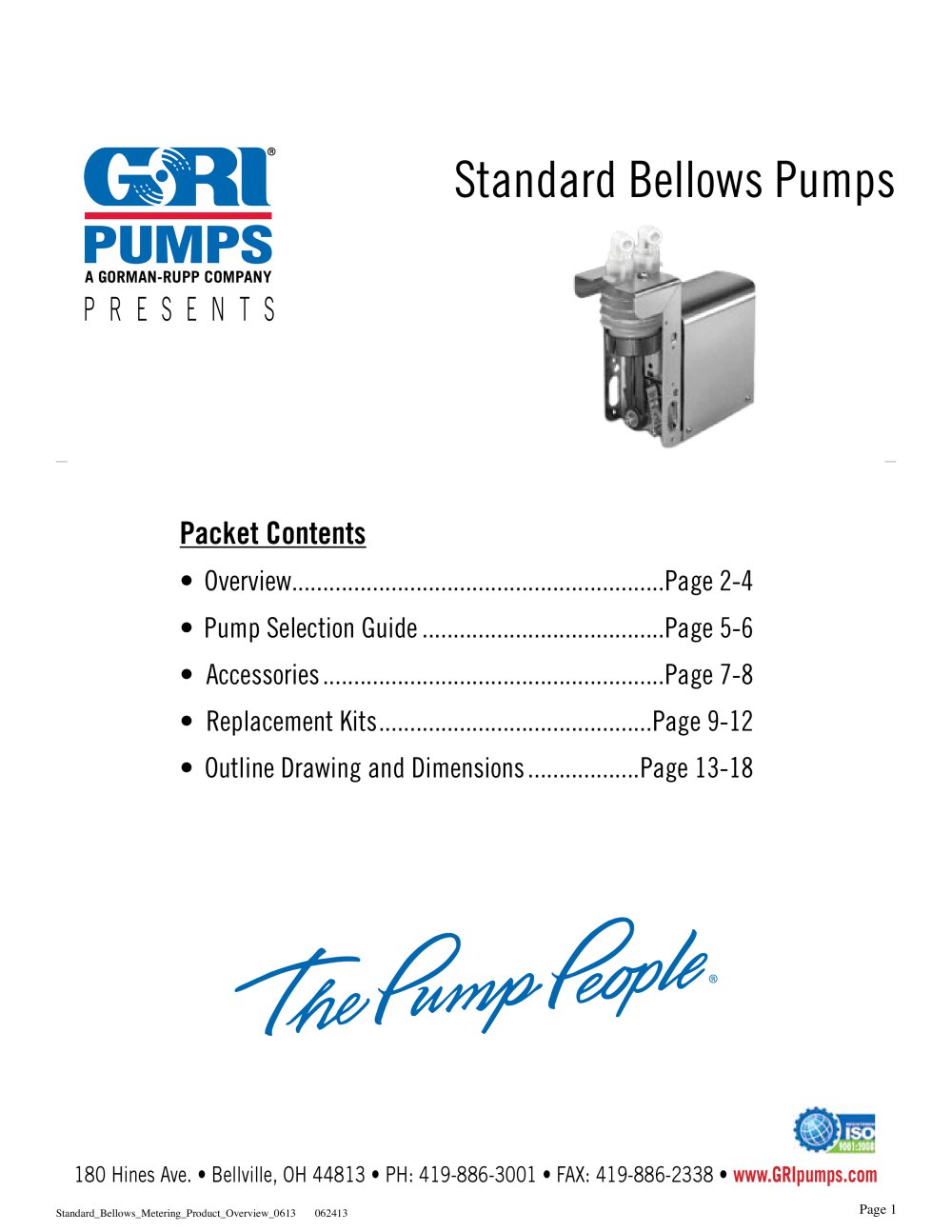

Standard Bellows Pumps A GORMAN-RUPP COMPANY 180 Hines Ave. • Bellville, OH 44813 • PH: 419-886-3001 • FAX: 419-886-2338 • www.GRIpumps.com Standard_Bellows_Metering_Product_Overview_0613

Standard Bellows Metering Pumps Overview Bellows metering pumps operate on a positive displacement principle. Pumps are designed to displace both corrosive and noncorrosive fluids. Accurate to ± 0.5% from stroke to stroke, when pump is set 50% to 100% of full stroke. Discharge pressure is maintained over the entire flow range of the pump. Poppet valves are used to prevent back flow; and springs are available to provide a positive shutoff, preventing siphoning through the pump in applications where a positive suction head exists. Typical applications include film and x-ray processors, silver recovery...

Bellows Metering Pump Specifications: Flow Rates — Range from 3.9 ml/min to 3000 ml/min, depending on pump configuration, gearmotor speed and stroke length. Max Discharge Pressures — Range from 5 to 50 psi depending on bellows size. Max Fluid Temperature — To 140°F (60°C)Note: Reduce pressure rating by 50% for fluid temperatures over 120°F (49°C). Note: Reduce pressure rating by 50% for fluid temperatures over 120°F (49°C). Viscosity/Slurries — Maximum fluid viscosity is 5,000 centistokes. Poppet valves can handle fine slurries. Duckbill valves are recommended for heavy slurries or fibrous materials....

• Superior corrosion resistance • Simple flow adjustment OEM Options GRI specializes in the design and manufacturing of customized pumps for the OEM market. If you are unable to find the pump for your needs, please contact us and a technical sales member with discuss with you your requirements and all available OEM options. Motors Standard Model Voltages Available: • 115V AC, 50/60 Hz • 230V AC, 50/60 Hz OEM Optional Model Voltages Available: • 12, 24V DC Speeds Standard motor speeds are 39, 60, 90 and 165 RPM at 60 Hz. Gearmotors can be supplied in virtually any speed up to165 RPM. Voltages...

Part Selection BELLOWS METERING PUMPS Tubing Connectors Order Notes: One “X” and one “T” code for each bellows module is required. (When ordering tandem pumps, the largest bellows module is nearest the gearmotor.) Example: 13726-014 (11⁄2" x 11⁄2" two tandem standard model) with EPT/EPDM poppet valves and O-rings and 3⁄8" elbow connectors would be ordered as a 13726-014 X-112 T-008 X-112 T-008. T-CODES T-Code For Elastomeric Tubing Size Connector Type Barbed Compression Barbed Compression Bellows Module Size ⁄2" ⁄2" Barbed Compression Barbed Compression Elbow Swivel, Barbed Elbow Swivel, Barbed...

BELLOWS METERING PUMPS – PART SELECTION Poppet Valves and O-Rings Duckbill Valves and O-Rings (Valve extension required only on suction port.) *EPT/EPDM Hydrin *EPT/EPDM Hydrin *Viton®/ Fluoroelastomer **Viton®/ Fluoroelastomer * ndicates stocked elastomer **Cost added or material * ndicates stocked elastomer **Cost added or material 180 Hines Ave. • Bellville, OH 44813 • PH: 419-886-3001 • FAX: 419-886-2338 • www.GRIpumps.com ©2013 Gorman-Rupp Industr es www.gr pumps.com Page 6

Bellows Pump BELLOWS METERING PUMPS Single Check Valve Check and Foot Valves Opening Pressure: 1 psi (spring loaded) Check and foot valves are used to maintain a pump’s prime or to prevent backflow through a pump in applications with long suction lengths. Check valves can be positioned in-line on the suction or discharge side of the pump; foot valves on the suction side only. To order, refer to the chart on this page. Materials in Contact with Solution: Body, valve seat, connectors, screen (149 Micron) — Polypropylene ® O-rings — EPT/EPDM, Viton®/Fluoroelastomer Spring — Hastelloy® C Options:...

BELLOWS METERING PUMPS – ACCESSORIES Anti-Siphon Spring Kits Anti-siphon springs are available to springload poppet valves. Use of these springs produces more positive shutoff of poppet valves and permits use of the pump where there is a positive pressure on the suction side. Available for the 1", 11⁄2" and 21⁄2" models. To order, select the proper spring material and O-ring by referring to the Chemical Resistance Section. The appropriate kit can then be chosen based on the blow-off pressure (PSI) required. (Va ve extens on requ red on y on suct on port.) O-Ring (Elastomer) Material Spring Ki...

Replacement BELLOWS METERING PUMPS Notes: (1) Bellows module kits include connecting rod assembly, bellows module, displacement cup, screws and O-rings. (2) Standard crank kit includes lock nut, flat washer and crank assembly. (3) BEL O JUST® crank kit includes rod bushing, bearing, bearing bushing, drive arm, set screw, bushing, crank, control arm and retaining ring. (4) Motor kit includes motor, fan, mounting screws, felt pad and ground screw. To order, refer to Replacement Kit charts on following pages. ©2010 Gorman-Rupp Industries

SINGLE BELLOWS METERING PUMPS - REPLACEMENT KITS Bellows Module Replacement Kits Crank Assembly Replacement Kits vIIUII /riuuru

SINGLE BELLOWS METERING PUMPS – REPLACEMENT KITS Model Number Crank Assembly Replacement Kits Bellows Module Replacement Kits Butyl Viton /Fluor oelastomer Motor Replacement Kits Inner Module Outer Module SIDE-BY-SIDE BELLOWS PUMPS – REPLACEMENT KITS 13191-043 TWO TANDEM BELLOWS PUMPS – REPLACEMENT KITS THREE TANDEM BELLOWS PUMPS – REPLACEMENT KITS 13700-009 180 Hines Ave. • Bellville, OH 44813 • PH: 419-886-3001 • FAX: 419-886-2338 • www.GRIpumps.com ©2010 Gorman-Rupp Industries

BELLOWS METERING PUMPS Replacement Kits (continued) Notes: (5) Poppet valve kit includes 2 poppet valves and 2 O-rings. (6) Duckbill valve kit includes 2 duckbill valves, 2 seal washers, 1 valve extension and 1 O-ring. (7) Tubing connector kit includes 2 connectors and 2 connector nuts. POPPET VALVE AND O-RING KITS Bellows Size Materials Kel-F® TUBING CONNECTOR KITS Bellows Size DUCKBILL VALVE AND O-RING KITS
