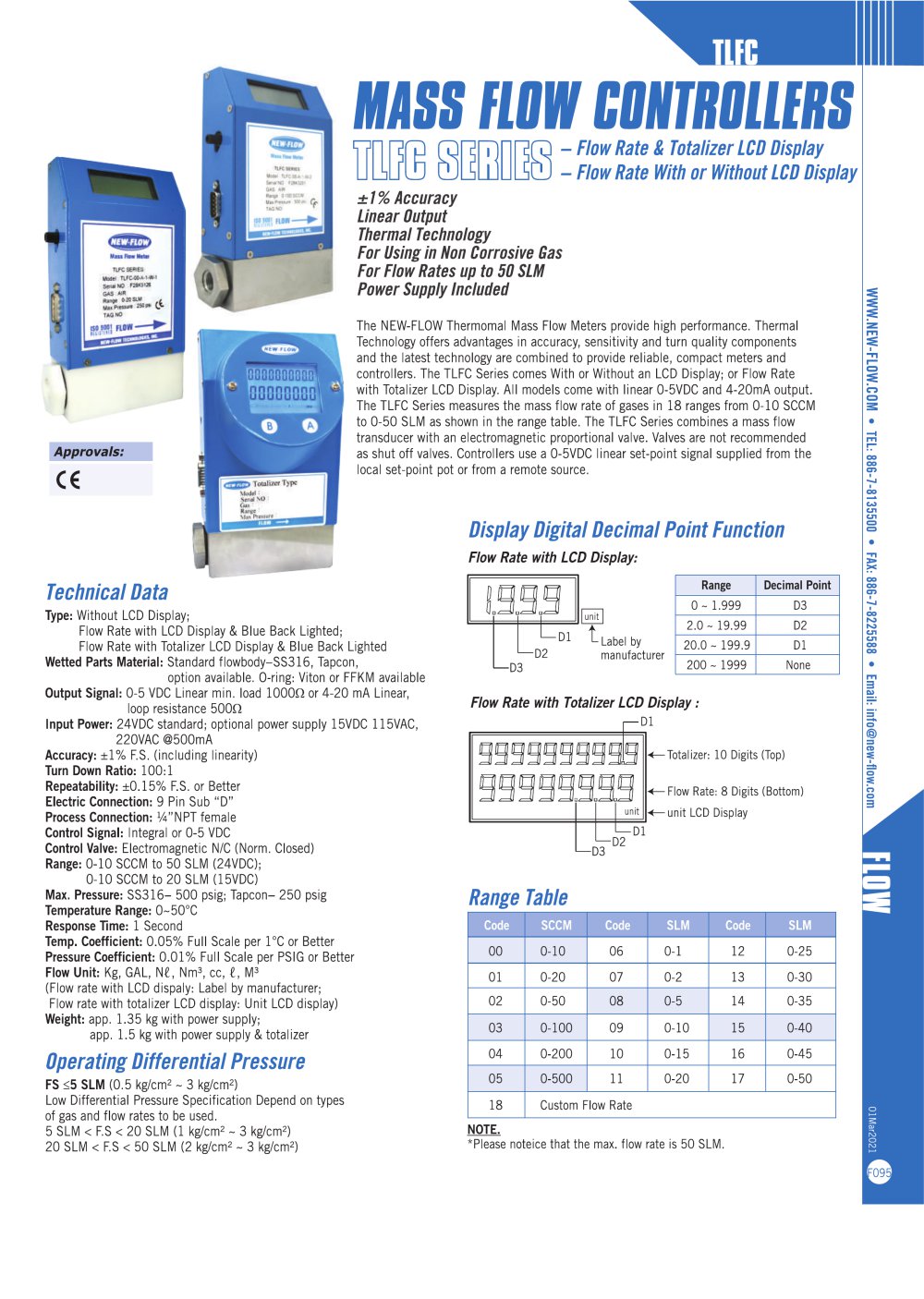

MASS HOW COHTOOIUOS Approvals: C€ nn nrn nnnnnn _ Flow Rate & Totalizer LCD Display - Flow Rate With or Without LCD Display Linear Output Thermal Technology Power Supply Included The NEW-FLOWThermomal Mass Flow Meters provide high performance. Thermal Technology offers advantages in accuracy, sensitivity and turn quality components and the latest technology are combined to provide reliable, compact meters and controllers. The TLFC Series comes With or Without an LCD Display; or Flow Rate with Totalizer LCD Display. All models come with linear 0-5VDC and 4-20mA output. The TLFC Series measures the mass flow rate of gases in 18 ranges from 0-10 SCCM to 0-50 SLM as shown in the range table. The TLFC Series combines a mass flow transducer with an electromagnetic proportional valve. Valves are not recommended as shut off valves. Controllers use a 0-5VDC linear set-point signal supplied from the local set-point pot or from a remote source. Display Digital Decimal Point Function Flow Rate with LCD Display: Technical Data Type: Without LCD Display; Flow Rate with LCD Display & Blue Back Lighted; Flow Rate with Totalizer LCD Display & Blue Back Lighted Wetted Parts Material: Standard flowbody-SS316, Tapcon, option available. 0-ring: Viton or FFKM available Output Signal: 0-5 VDC Linear min. load 1000G or 4-20 mA Linear, loop resistance 500ft Input Power: 24VDC standard; optional power supply 15VDC 115VAC, 220VAC @500mA Accuracy: ±1% F.S. (including linearity) Turn Down Ratio: 100:1 Repeatability: ±0.15% F.S. or Better Electric Connection: 9 Pin Sub "D” Process Connection: V4”NPT female Control Signal: Integral or 0-5 VDC Control Valve: Electromagnetic N/C (Norm. Closed) Max. Pressure: SS316- 500 psig; Tapcon- 250 psig Temperature Range: 0~50°C Response Time: 1 Second Temp. Coefficient: 0.05% Full Scale per 1°C or Better Pressure Coefficient: 0.01% Full Scale per PSIG or Better Flow Unit: Kg, GAL, Nl, Nm3, cc, l, M3 (Flow rate with LCD dispaly: Label by manufacturer; Flow rate with totalizer LCD display: Unit LCD display) Weight: app. 1.35 kg with power supply; app. 1.5 kg with power supply & totalizer Low Differential Pressure Specification Depend on types of gas and flow rates to be used. Range Table Label by manufacturer WWW.NEW-FLOW.COM • TEL: 886-7-8135500 • FAX: 886-7-8225588 • Email: [email protected] *Please noteice that the max. flow rate is 50 SLM.

Dimensions oiMar202i WWW.NEW-FLOW.COM • TEL: 886-7-8135500 • FAX: 886-7-8225588 • Email: [email protected] Ordering Information TLFC Code 00-17 Flow Range Please refer to the measure range table. 18 ‘Custom range (please directly fill in the requested range) Code Wetted Parts Material Code Process Connection Code Display Flow Rate wtih LCD Display & Blue Back Lighted Flow Rate with Totalizer LCD Display & Blue Back Lighted Code Output Signal Code Control Signal Integral (manual operating by set point) 0-5 VDC (from a remote source) Code Input Power Complete Ordering Code Flow Direction
