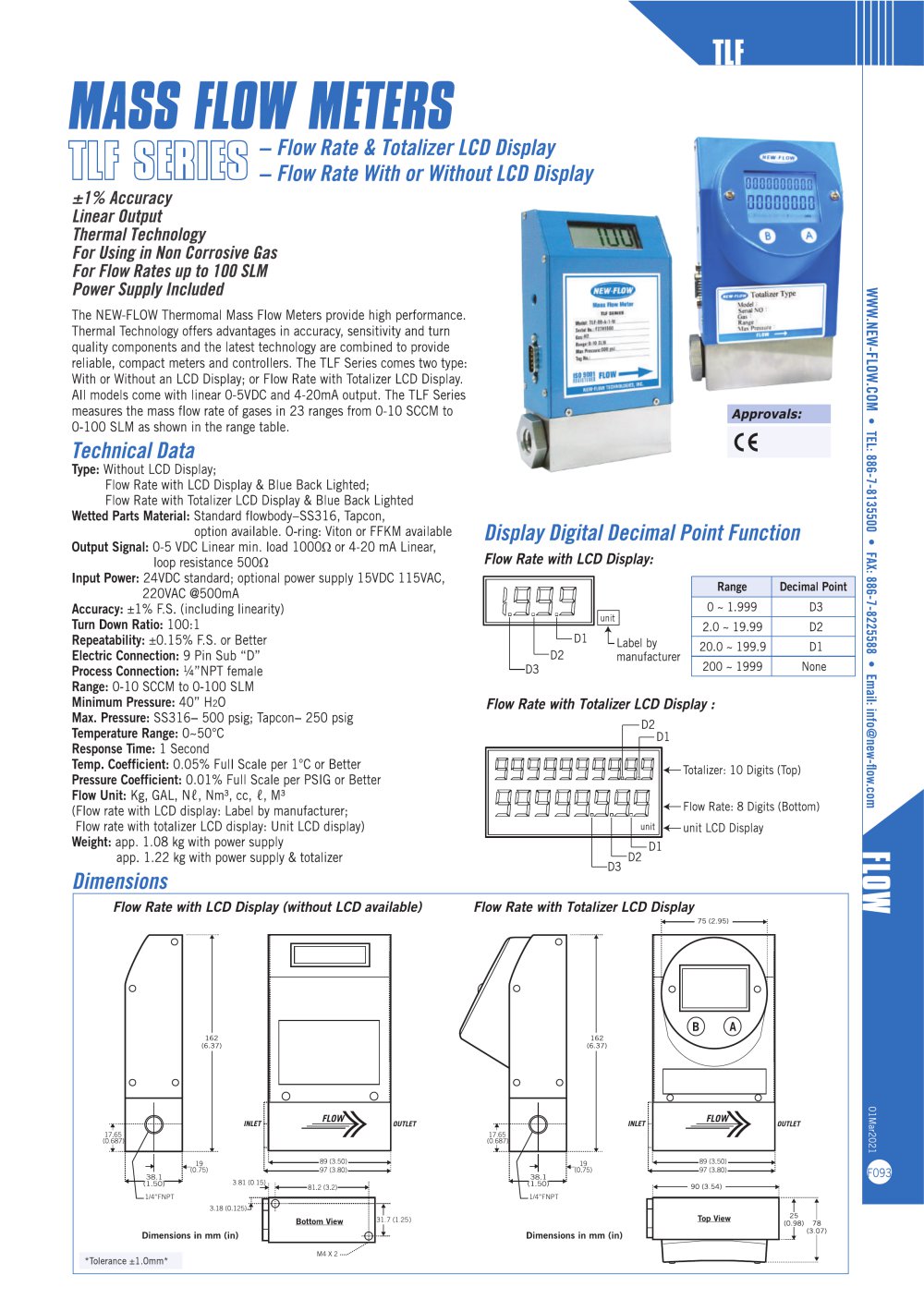

- Flow Rate & Totalizer LCD Display - Flow Rate With or Without LCD Display Linear Output Thermal Technology Power Supply Included The NEW-FLOW Thermomal Mass Flow Meters provide high performance. Thermal Technology offers advantages in accuracy, sensitivity and turn quality components and the latest technology are combined to provide reliable, compact meters and controllers. The TLF Series comes two type: With or Without an LCD Display; or Flow Rate with Totalizer LCD Display. All models come with linear 0-5VDC and 4-20mA output. The TLF Series measures the mass flow rate of gases in 23 ranges from 0-10 SCCM to 0-100 SLM as shown in the range table. Technical Data Type: Without LCD Display; Flow Rate with LCD Display & Blue Back Lighted; Flow Rate with Totalizer LCD Display & Blue Back Lighted Wetted Parts Material: Standard flowbody-SS316, Tapcon, option available. O-ring: Viton or FFKM available Output Signal: 0-5 VDC Linear min. load 1000ft or 4-20 mA Linear, loop resistance 500ft Input Power: 24VDC standard; optional power supply 15VDC115VAC, 220VAC @500mA Accuracy: ±1% F.S. (including linearity) Turn Down Ratio: 100:1 Repeatability: ±0.15% F.S. or Better Electric Connection: 9 Pin Sub “D” Process Connection: WNPT female Max. Pressure: SS316- 500 psig; Tapcon- 250 psig Response Time: 1 Second Temp. Coefficient: 0.05% Full Scale per 1°C or Better Pressure Coefficient: 0.01% Full Scale per PSIG or Better Flow Unit: Kg, GAL, Ni, Nm3, cc, «, M3 (Flow rate with LCD display: Label by manufacturer; Flow rate with totalizer LCD display: Unit LCD display) Weight: app. 1.08 kg with power supply app. 1.22 kg with power supply & totalizer C€ Display Digital Decimal Point Function Flow Rate with LCD Display: Flow Rate with Totalizer LCD Display : WWW.NEW-FLOW.COM • TEL: 886-7-8135500 • FAX: 886-7-8225588 • Email: [email protected] Flow Rate with Totalizer LCD Display

Range Table oiMar202i WWW.NEW-FLOW.COM • TEL: 886-7-8135500 • FAX: 886-7-8225588 • Email: [email protected] *Please noteice that the max. flow rate is 100 SLM. Flow Direction ■ Please follow the direction of arrow “+■" on the label to install. (As shown on the left is the standard installation.)
