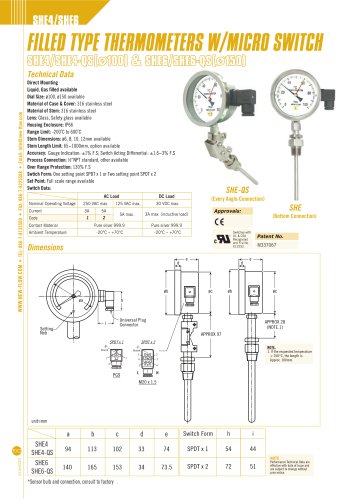

0iJan2023 It* WWW.NEW-FLOW.COM • TEL: 886-7-8135500 • FAX: 886-7-8225588 • Email: [email protected] Technical Data Direct Mounting Liquid, Gas filled available Dial Size: 0100,0150 available Material of Case & Cover: 316 stainless steel Material of Stem: 316 stainless steel Lens: Glass, Safety glass available Stem Dimensions: 06,8,10,12mm available Stem Length Limit: 65~1000mm, option available Accuracy: Gauge Indication: ±1% F.S; Switch Acting Differential: ±1.6~3% F.S Process Connection: J4"NPT standard, other available Over Range Protection: 130% F.S Swtich Form: One setting point SPOT x 1 or Two setting point SPOT x 2 Set Point: Full scale range available Switch Data: (Every Angle Connection) Approvals: SHE(Bottom Connection) Dimensions Switches with Performance Technical Data are effective with date of issue and are subject to change without prior notice. Sensor bulb and connection, consult to factory .

Connection Type Table for Range and Insertion (B) Rotary Thread Type (Male thread) (C) Slide Thread Type (Length "£" changed available.) (D) Rotary Thread Type (Female thread) Liquid Filled Type Minimum Stem Length 1. Please note the minimum insertion length is not including the thread. 2. Special Range / Scale / Stem Diameter / Length are available upon request. E: Stop plate for (rotary & rotation style)

ouan2023 ^ WWW.NEW-FLOW.COM • TEL: 886-7-8135500 • FAX: 886-7-8225588 • Email: [email protected] Stem Length Refer to the Table for Range and Insertion, directly fill in request length(mm) Ordering Information Model Process Connection
