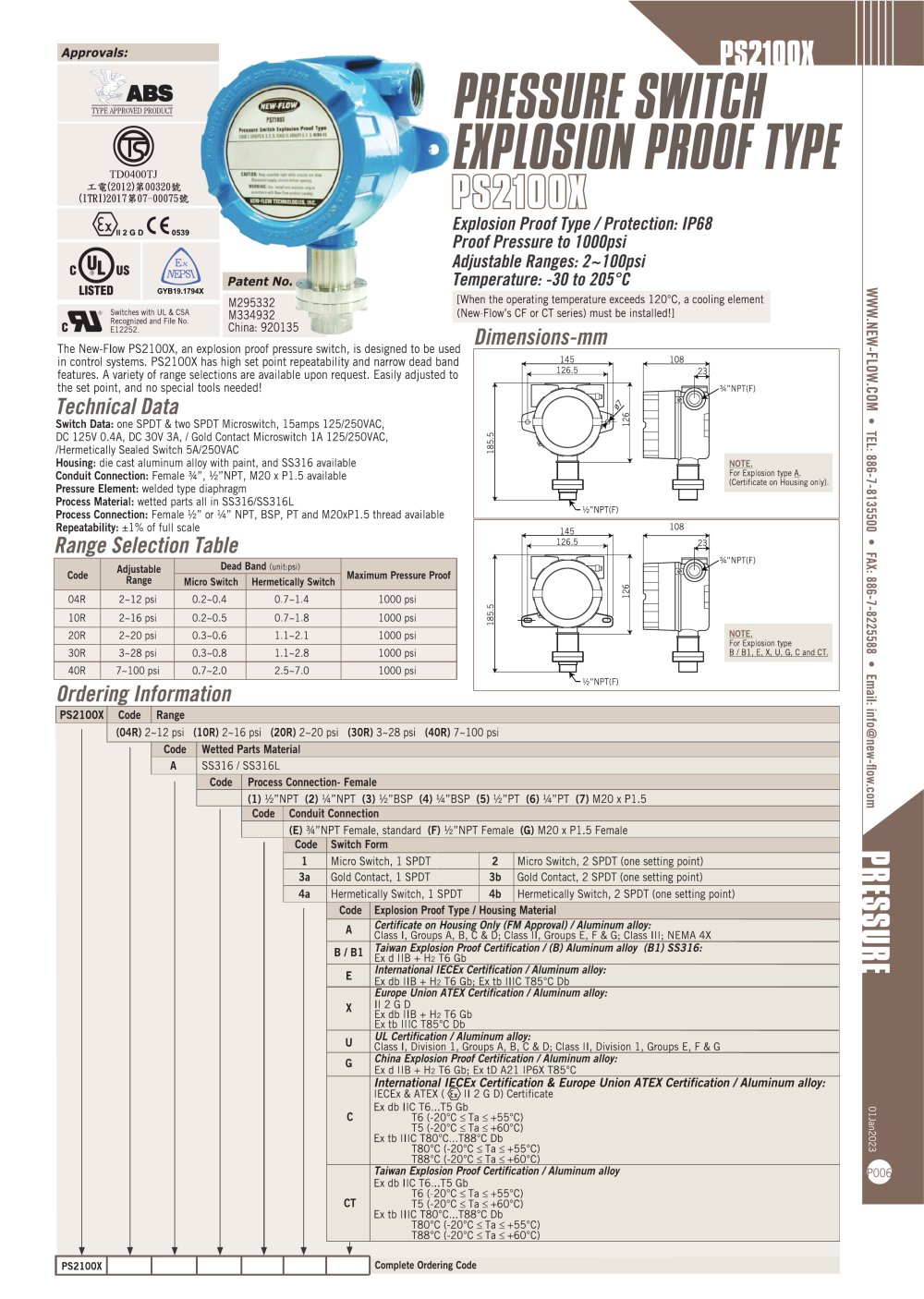

pmsm swijehM mom proof mi Explosion Proof Type /Protection: IP68 Proof Pressure to WOOpsi Adjustable Ranges: 2~ lOOpsi Temperature: -30 to 205°C [When the operating temperature exceeds 120°C, a cooling element (New-Flow's CF or CT series) must be installed!] The New-Flow PS2100X, an explosion proof pressure switch, is designed to be used in control systems. PS21Q0X has high set point repeatability and narrow dead band features. A variety of range selections are available upon request. Easily adjusted to the set point, and no special tools needed! Switch Data: one SPDT & two SPDT Microswitch, 15amps 125/250VAC, /Hermetically Sealed Switch 5A/250VAC Housing: die cast aluminum alloy with paint, and SS316 available Conduit Connection: Female 44", %”NPT, M20 x P1.5 available Pressure Element: welded type diaphragm Process Material: wetted parts all in SS316/SS316L Process Connection: Female W or W NPT, BSP, PT and M20xP1.5 thread available Repeatability: ±1% of full scale Dimensions-mm Code Code Range Wetted Parts Material Code Conduit Connection WWW.NEW-FLOW.COM • TEL: 886-7-8135500 • FAX: 886-7-8225588 • Email: [email protected] (E) 44”NPT Female, standard (F) Vfe"NPT Female (G) M20x P1.5 Female Switch Form Micro Switch, 1 SPDT Micro Switch, 2 SPDT (one setting point) Gold Contact, 1 SPDT Gold Contact, 2 SPDT (one setting point) Hermetically Switch, 1 SPDT 4b Hermetically Switch, 2 SPDT (one setting point) Explosion Proof Type / Housing Material Certificate on Housing Only (FM Approval) /Aluminum alloy: Class I, Groups A, B, C & D; ClassTC Groups E, F & G; Class Hi; NEMA 4X B/Bl Taiwan Explosion Proof Certification /(B) Aluminum alloy (Bl) SS316: International lECEx Certification /Aluminum alloy: Europe Union ATEX Certification /Aluminum alloy: Class I, Division 1, Groups A, B, C & D; Class II, Division 1, Groups E, F & G China Explosion Proof Certification l Aluminum alloy: International lECEx Certification & Europe Union ATEX Certification/Aluminum alloy: lECEx & ATEX (© II 2 G D) Certificate Exdb IICT6...T5Gb Taiwan Explosion Proof Certification /Aluminum alloy Exdb IICT6...T5Gb Complete Ordering Code
