Catalog excerpts

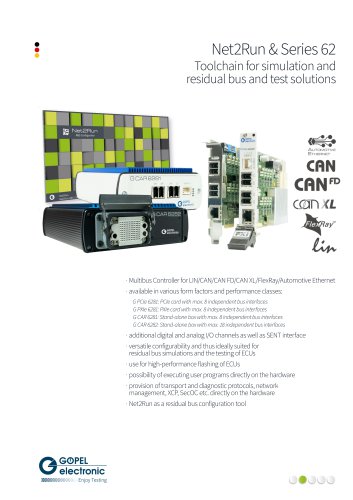

• Multibus Controller for LIN/CAN/CAN FD/CAN XL/FlexRay/Automotive Ethernet • available in various form factors and performance classes: G PCIe 6281: PCIe card with max. 8 independent bus interfaces G PXIe 6281: PXIe card with max. 8 independent bus interfaces G CAR 6281: Stand-alone box with max. 8 independent bus interfaces G CAR 6282: Stand-alone box with max. 18 independent bus interfaces • additional digital and analog I/O channels as well as SENT interface • versatile configurability and thus ideally suited for residual bus simulations and the testing of ECUs • use for high-performance flashing of ECUs • possibility of executing user programs directly on the hardware • provision of transport and diagnostic protocols, network management, XCP, SecOC etc. directly on the hardware • Net2Run as a residual bus configuration tool OGQPEL electronic
Open the catalog to page 1
Series 62 ■ Communication Controller simulation of complex, heterogeneous vehicle networks and gateways high-performance flashing of control units • use of state-of-the-art technologies (MPSoC) • IP-based communication controllers • use of a real-time operating system • optional: execution of user code directly on the hardware • transport and diagnostic protocols • network management • flexibly configurable according to the requirements of the test item • upgrade of units already in the field possible without problems Application connectors G PCIe 6281 G PXIe 6281 G CAR 6281 with ODU-Mac...
Open the catalog to page 2
User software x (sendState) { case G CAM CYCLIC ME, parameters.Mode = break; case G_CAN_CYCLIC_MSGE paiameters.Mode = . break; default: 05. Core Temperature OG. Board Temperature 13. Link Capability Lanes the efficient solution for creating complex signal-based residual bus simulations for heterogeneous vehicle networks Is Included Description Init Value 0.249023 Invalid Value notavailabl Invalid Value Raw not availald El BrakeOI.PeriodicTFI El BrakeOI_OnDemand_MM EM XCF_Replacer42_BACAD fexCF NonUn_03 vX- URE1_1176_LE_BLACK_GA IN UREM176J.E_BLACKJNPIIT_DB W UREI_1176_LE_BLACK_OUTPUT_DB...
Open the catalog to page 3
Series 62 • Communication Controller Configuration & AccessoriesConfiguration possibilitiesG PXIe 6281 G PCIe 6281 G CAR 6281 G CAR 6282 Article number: 2055-000 Type and maximum number of available communication interfaces per unit* * For technical reasons, not any mixed configuration of communication interfaces is possible. ** via optional I/O modul Accessories Transceiver module Automotive Ethernet, LIN, CAN FD, FlexRay OGQPEL electronic GOPEL electronic GmbH ISO 9001 certified ^ ats.sales@goepel.co.uk @ ats.sales@goepelusa.com ats.sales@goepel.asia • ats.sales@goepel.in
Open the catalog to page 4All GÖPEL electronic GmbH catalogs and technical brochures
-

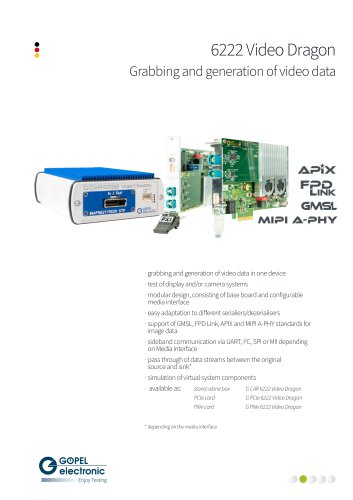

6222 Video Dragon
3 Pages
-

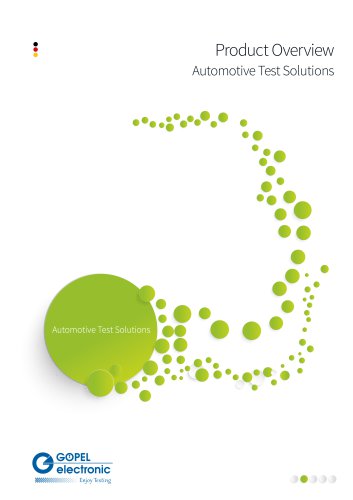

Automotive Test Solutions
17 Pages
-

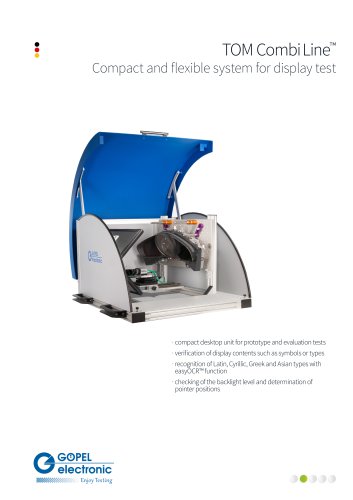

TOM Combi Line™
2 Pages
-

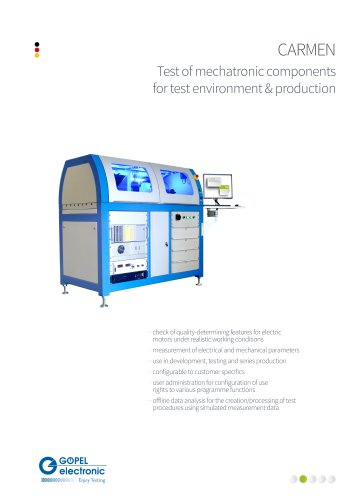

CARMEN
