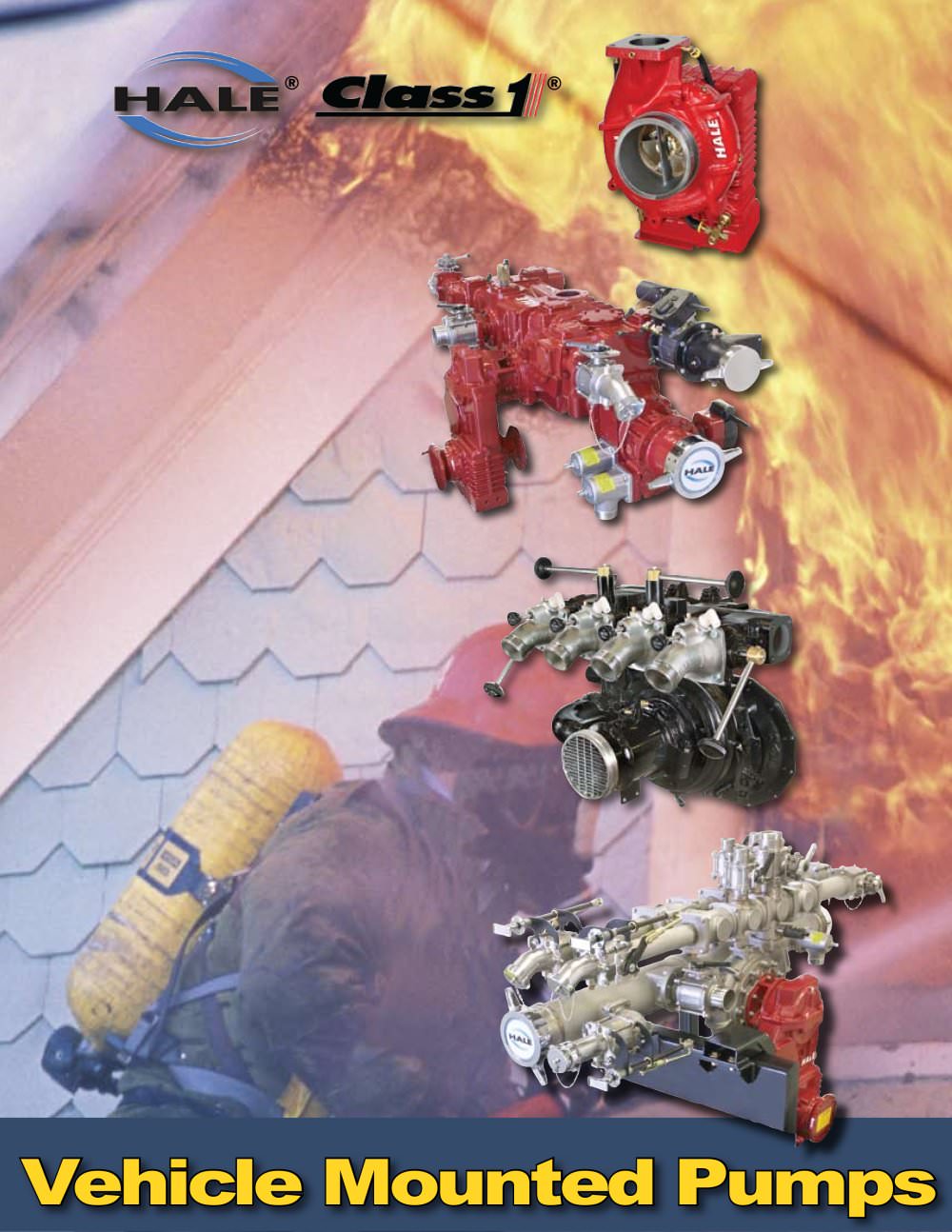

Pump Brochure
24Pages

NFPA ratings to 2250 US GPM; Maximum flows to over 2600 US GPM > 1750 NFPA rating from an appropriate 330 HP engine. Computer designed and tested for maximum performance. > Tough single piece body, 600 PSI hydrostatic tests, simple, durable construction Step up to a Qmax pump for maximum flow to knock down fires fast. When you need big water, you need Hales Qmax pump. > The industry standard җ made to exceed 2600 GPM from a sufficient positive pressure water source and an appropriate engine. Extraordinary reliability and high performance you can count on. Designed specifi- cally to increase...

Compact design for a shorter pump box and increased compartment room for water tanks or personnel. NFPA 1901 750, 1000 or 1250 GPM ratings Single Stage Midship Split Drive Line Pump The most compact of our midship pumps, the Qpak fits into a pump box size as small as 24ה depend- ing on the plumbing configurations. Compact design results in shorter pump box and increased room for water tanks, equipment or personnel. NFPA 1901 500, 750, or 1000 GPM ratings Single Stage Midship Split Drive Line Pump > Pumper ח Aerial Tower Rescue Pumper Pumper Tanker > Pumper Rescue Pumper Tankers/Tender...

Optional maintenance free mechanical seal and one- piece pump body minimizes routine maintenance. NFPA 1901 1000 or 1250 GPM ratings Single Stage Midship Split Drive Line Pump Powerful two stage pump can exceed 2000 GPM NFPA rating and may exceed up to 2600 GPM from a sufficient water source or in relay mode. NFPA 1901 ח 1000, 1250, 1500, 1750, or 2000 GPM ratings Two StageMidship Split Drive Line Pump > umper Aerial ח TankerRescue Pumper Pumper Tanker > umper Aerial ח TankerRescue Pumper Pumper Tanker Ratios: Ratios: L, R, & S Box: 1.58, 1.71, 1.86, 2.05 or 2.28 X Box: 1.96, 2.13, 2.32 or...

Revolutionary fire pump constructed of high strength stainless steel resulting in reduced maintenance and extraordinary performance. NFPA 1901 1000, 1250, or 1500 GPM ratings Single StageMidship Split Drive Line Pump Compact design with seven pump ratios for opti-mum performance. Ideal for smaller truck chassis NFPA 1901 ח 500 GPM ratings Single Stage Midship Split Drive Line Pump > Rescue Pumper Pumper Tanker Rural/Urban Interface Initial Attack > umper Aerial ח TankerRescue Pumper Pumper Tanker Ratios: X Box: 1.96, 2.13, or 2.32 > Transmission: Options: Air shift, manual shift override,...

Compact design with seven pump ratios for optimum performance. Pump weight is less that 300 pounds. NFPA 1901 500, 750, or 1000 GPM ratings Single StageMidship Split Drive Line Pump Compact Stainless Max > ׮ pump constructed of high strength stainless steel for reduced maintenance. NFPA 1901 1000 , 1250 or 1500 GPM ratings Single Stage Midship Split Drive Line Pump > Rescue PumperPumper Tanker Rural/Urban Interface Initial Attack Pumper ח Aerial Tower Rescue Pumper Tankers/Tenders Pumper Tanker > Discharge: Ratios: 1.00, 1.27, 1.71, 1.92, 2.18, 2.67, or 3.00 4ה Flange Discharge: Ratios: X...

Compact midship pump designed for easy maintenance. NFPA 1901 750, 1000, 1250, or 1500* GPM ratings Single StageMidship Split Drive Line Pump Highest flows available in a production mobile fire service pump. Tuned for flows in excess of 3000 GPM in industrial applications NFPA 1901 ח 2500, 2750, or 3000 GPM ratings Single Stage Midship Split Drive Line Pump > Pumper Aerial ח TowerRescue Pumper Tankers/Tenders Pumper Tanker > Discharge: Ratios: Options: L & R Series Gearbox 1.58, 1.71, 1.86, 2.05, or 2.28 Air shift, manual shift override, P Series Relief Valve, TPM, Anodes, TRV, ESP, SPVR,...

Highest flows available in a production mobile fire service pump. NFPA 1901 1500, 1750, 2000, 2250, 2500, 2750, or 3000 GPM ratings Single Stage Midship Split Drive Line Pump Front mount compact pump for pump and roll capability with full NFPA 1901 compliance. NFPA 1901 ח 500, 1000, or 1250 GPM ratings Single StageFront Engine PTO Pump > Pumper Tanker/Tender Rural/Urban Interface Pumper Tanker Water Supply Apparatus > Pumper Aerial ח Tower Pumper Tanker Industrial Apparatus > Discharge: Ratios: X Series Gearbox 1.96, 2.13 or 2.32 6 Flange Discharge: 4Ԕ Flange Suction: Transmission: Options:...

Front mount manifolded pump with single stage design for ease of operation. NFPA 1901 750, 1000, or 1250 GPM ratings Single StageFront Engine PTO Pump Compact high volume attack pumps, AP/APS pumps can handle most fires before the big pumper arrives. Available with optional suction and discharge mani- folding to minimize piping requirements. APS Silent Series has new improved heavy-duty heli- cal gearbox. NFPA 1901 - 250, 350, 450, or 500 GPM rating Single Stage PTO Driven Pump Engine or opposite engine rotation > Pumper Tanker/Tender Rural/Urban Interface Pumper Tanker Water Supply...

Applications High on performance and low on power and mainte-nance requirements. Driven by the truck transmission power take-off, the 2CBP is designed to save wear on your midship pump when high pressure at low flow is required. Can be used as a stand alone high pressure pump. Pressures to 1000 PSI on two or more booster lines simultaneously. Two Stage High Pressure PTO Driven PumpEngine or opposite engine rotation Heavy duty performance in a lightweight pack-age. Driven by your truck transmission power take off, it can save wear and tear on your midship pumps. Can also perform as a pump in...

Efficient direct drive rear mount pump with a big diameter impeller for slow drive line speed. NFPA 1901 - 500, 750, or 1000 GPM rating Single Stage PTO Driven Rear Mount Pump NFP A S in g P T O > Pumper Tanker; Rescue Pumper P u m Discharge: D i s c 4 Flange Suction: S u ct 5Ԕ Flange > Pump: Options: Pm Alloy cast iron volute and heads (bronze optional), bronze impeller and wear rings, 17-4PH stainless pump shaft, mechanical seal P Series Relief Valve, TPM, Anodes, TRV, ESP, SPVR. Cast dis-charge manifolds and valves are also available. > Efficient direct drive rear mount pump with large...
