Prima P2_ Data Sheet

Product catalog summary

Overview: The Godiva Prima is a versatile, multi-pressure fire pump designed for rear or midship vehicle mounting. It features a two-stage centrifugal design with both low and high-pressure impellers on a single stainless steel shaft, allowing for simultaneous multi-pressure operation.

Key Features:

Compact design with modular discharge manifold.
Standard mounting platform for easy installation.
Available in light alloy and gunmetal options for enhanced corrosion resistance.
Complies with EN1028:1 standards.
Auto/manual priming options and a new suction tube design.

Benefits:

Increased installation flexibility and reduced whole life costs.
Improved operational flexibility and installation ease.
Enhanced material selection for long life and reliability.

Performance Data:

Priming performance range up to 7.5m with a recommended speed of 2500 rpm.
Maximum suction pressure of 12 bar and maximum recommended speed of 3600 rpm.
Maximum outlet pressure: 17 bar (low pressure), 54.5 bar (high pressure).
Maximum flow rates: 3400 to 7750 l/min (low pressure), 770 l/min (high pressure).
Weight varies from 105 kg to 145.5 kg depending on the model and material.

Options:

Round the pump low and high-pressure foam systems.
Pneumatically operated hi-lo pressure selector valve.
Various gearbox ratios and positions available.
Water ring primer and control panel options.

Contact Information: Godiva Ltd., a Unit of IDEX Corporation, Charles St, Warwick CV34 5LR, United Kingdom. Tel: +44 (0)1926 623600, Fax: +44 (0)1926 623666, Web: www.godiva.co.uk, Email: [email protected]

Catalog excerpts

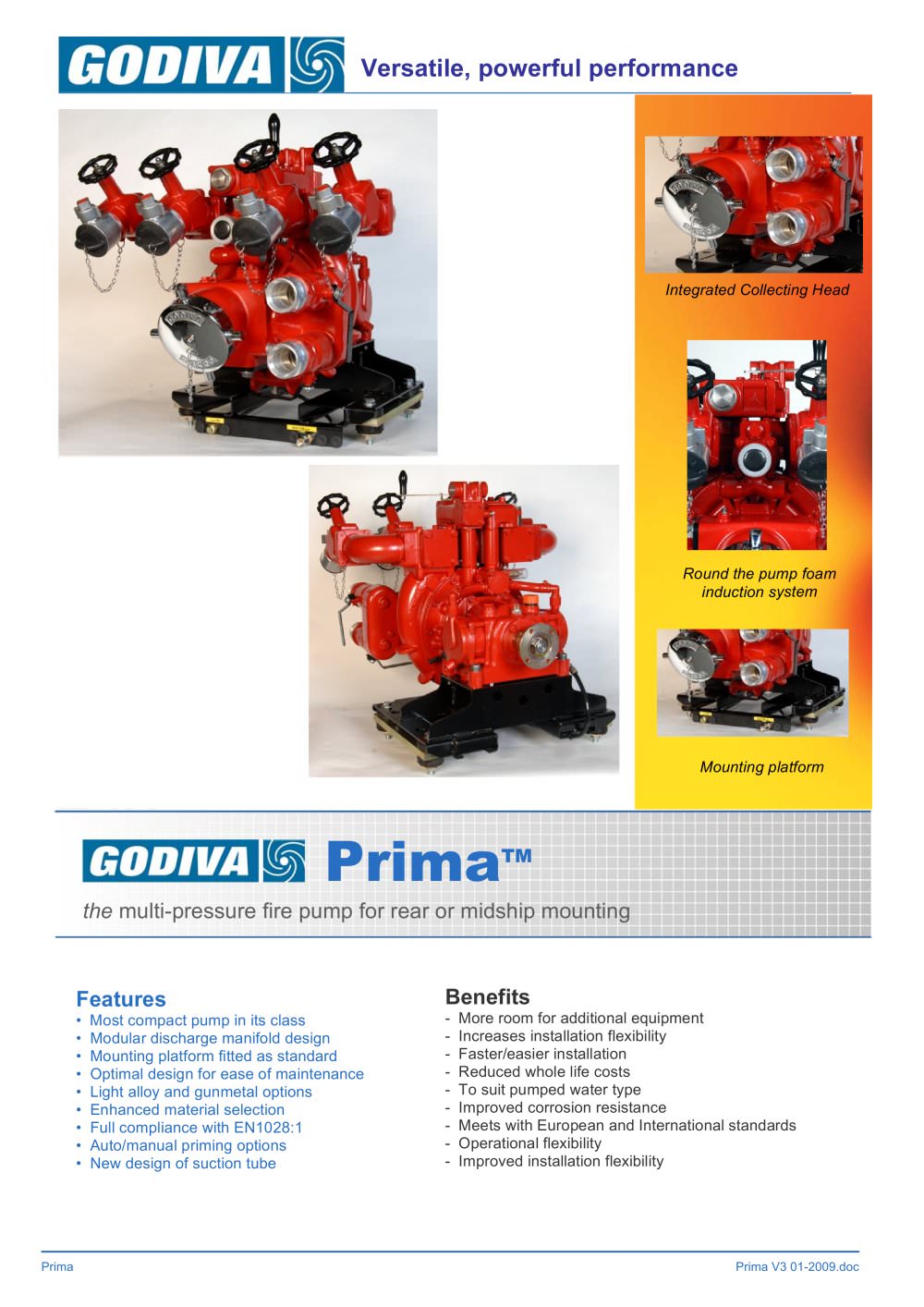

Prima Prima V3 01-2009.doc Integrated Collecting Head Round the pump foam induction system Mounting platform PrimaTM the multi-pressure fire pump for rear or midship mounting Features • Most compact pump in its class • Modular discharge manifold design • Mounting platform fitted as standard • Optimal design for ease of maintenance • Light alloy and gunmetal options • Enhanced material selection • Full compliance with EN1028:1 • Auto/manual priming options • New design of suction tube Benefits - More room for additional equipment - Increases installation flexibility - Faster/easier installation - Reduced whole life costs - To suit pumped water type - Improved corrosion resistance - Meets with European and International standards - Operational flexibility - Improved installation flexibility

Open the catalog to page 1

The Godiva Prima is designed for midship or rear vehicle mounting. It is a two stage centrifugal design, featuring both low and high pressure impellers on one stainless steel shaft to provide simultaneous multi-pressure operation. The pump is supplied with a ready-to-use mounting platform for ease of installation. The platform incorporates all necessary pump drainage connections and lifting points for forklift use. The modular low pressure delivery manifold allows for flexibility of installation configurations. In addition the high pressure discharge allows various configurations. Enhanced material...
