Prima P1

Product catalog summary

Overview: The Godiva Prima is a single-stage centrifugal fire pump designed for midship or rear vehicle mounting. It is compact, versatile, and compliant with EN1028:1 standards, offering both auto and manual priming options.

Features:

Compact design with a modular discharge manifold for flexible installation.
Standard mounting platform for easy installation and maintenance.
Available in light alloy and gunmetal for improved corrosion resistance.
Reverse rotation capability and multiple suction and delivery connection options.

Benefits:

Space-saving design allows for additional equipment.
Flexible installation options reduce costs and enhance operational flexibility.
Enhanced material selection ensures durability and reliability.

Performance Data:

Priming performance up to 7.5m with a recommended speed of 2500 rpm.
Maximum suction pressure of 12 bar and outlet pressure of 17 bar.
Flow rates range from 3400 l/min to 7750 l/min depending on the model.
Weight varies from 85 kg to 125.5 kg based on the model and material.

Options:

Low and high-pressure foam systems.
Water ring primer and gearbox options.
Control panel availability.

Contact Information: Godiva Ltd., a Unit of IDEX Corporation, Charles St, Warwick CV34 5LR, United Kingdom. Tel: +44 (0)1926 623600, Fax: +44 (0)1926 623666, Web: www.godiva.co.uk, Email: [email protected]

Catalog excerpts

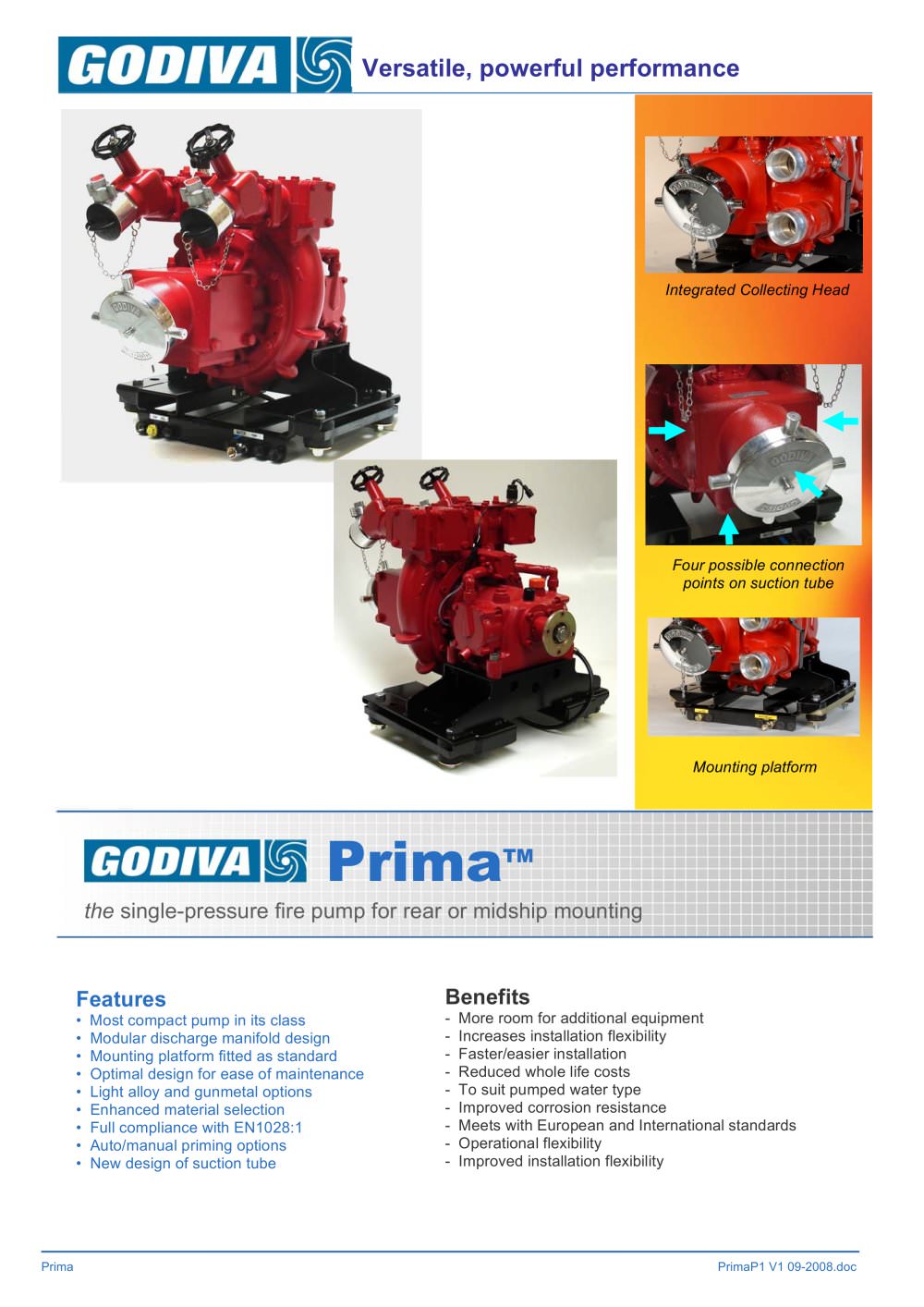

Prima PrimaP1 V1 09-2008.doc Mounting platform Integrated Collecting Head Four possible connection points on suction tube PrimaTM the single-pressure fire pump for rear or midship mounting Features • Most compact pump in its class • Modular discharge manifold design • Mounting platform fitted as standard • Optimal design for ease of maintenance • Light alloy and gunmetal options • Enhanced material selection • Full compliance with EN1028:1 • Auto/manual priming options • New design of suction tube Benefits - More room for additional equipment - Increases installation flexibility - Faster/easier installation - Reduced whole life costs - To suit pumped water type - Improved corrosion resistance - Meets with European and International standards - Operational flexibility - Improved installation flexibility

Open the catalog to page 1

The Godiva Prima is a single stage centrifugal pump designed for midship or rear vehicle mounting. The pump is supplied with a ready-to-use mounting platform for ease of installation. The platform incorporates all necessary pump drainage connections and lifting points for forklift use. The modular low pressure delivery manifold allows for flexibility of installation configurations. The suction tube provides three possible tank-to-pump connection points and an integrated collecting head option further enhances the installation flexibility. Enhanced material selection ensures long life and reliability....
