PPV Fans - Petrol Range

Product catalog summary

Overview
The document describes the Typhoon® petrol range of Positive Pressure Ventilation (PPV) fans by Hale, designed to enhance firefighting operations by effectively removing heat, smoke, and toxic gases. These fans are noted for their visibility, reliability, and efficiency in critical rescue situations.

Key Features

Quick tilting mechanism for ease of use.
Electro-polished stainless steel frame for durability.
Retractable handle and pneumatic tyres for easy maneuverability.
Strong thermoplastic shroud for protection.

Specifications

Model	Air Volume (AMCA210)	Air Volume (AMCA240)	Fan Diameter	Motor	Dimensions (h x w x d)	Weight
18H5	10,803m3/h	22,686m3/h	18inch (457mm)	Honda 5.5hp, Air cooled, 4-stroke, recoil start	610mm x 560mm x 530mm	38kg
21H5	14,511m3/h	31,924m3/h	21inch (533mm)	Honda 5.5hp, Air cooled, 4-stroke, recoil start	650mm x 625mm x 530mm	41kg
24H5	18,246m3/h	34,667m3/h	24inch (610mm)	Honda 5.5hp, Air cooled, 4-stroke, recoil start	790mm x 705mm x 530mm	43kg
27T10	26,857m3/h	51,028m3/h	27inch (686mm)	Tecumseh 10hp, Air cooled, 4-stroke, recoil start	830mm x 790mm x 530mm	53kg

Options

Hard-wearing vinyl cover available.

Operational Guidelines
In typical PPV applications, the fan is positioned 1.2m to 2.4m from the external doorway of a burning structure. This setup helps build air pressure inside, allowing smoke and gases to escape through a ventilation opening, replaced by cooler air.

Company Information
Hale Products Europe, a unit of IDEX Corporation, is committed to continuous development and reserves the right to amend specifications without notice. Contact details and further information are available on their website.

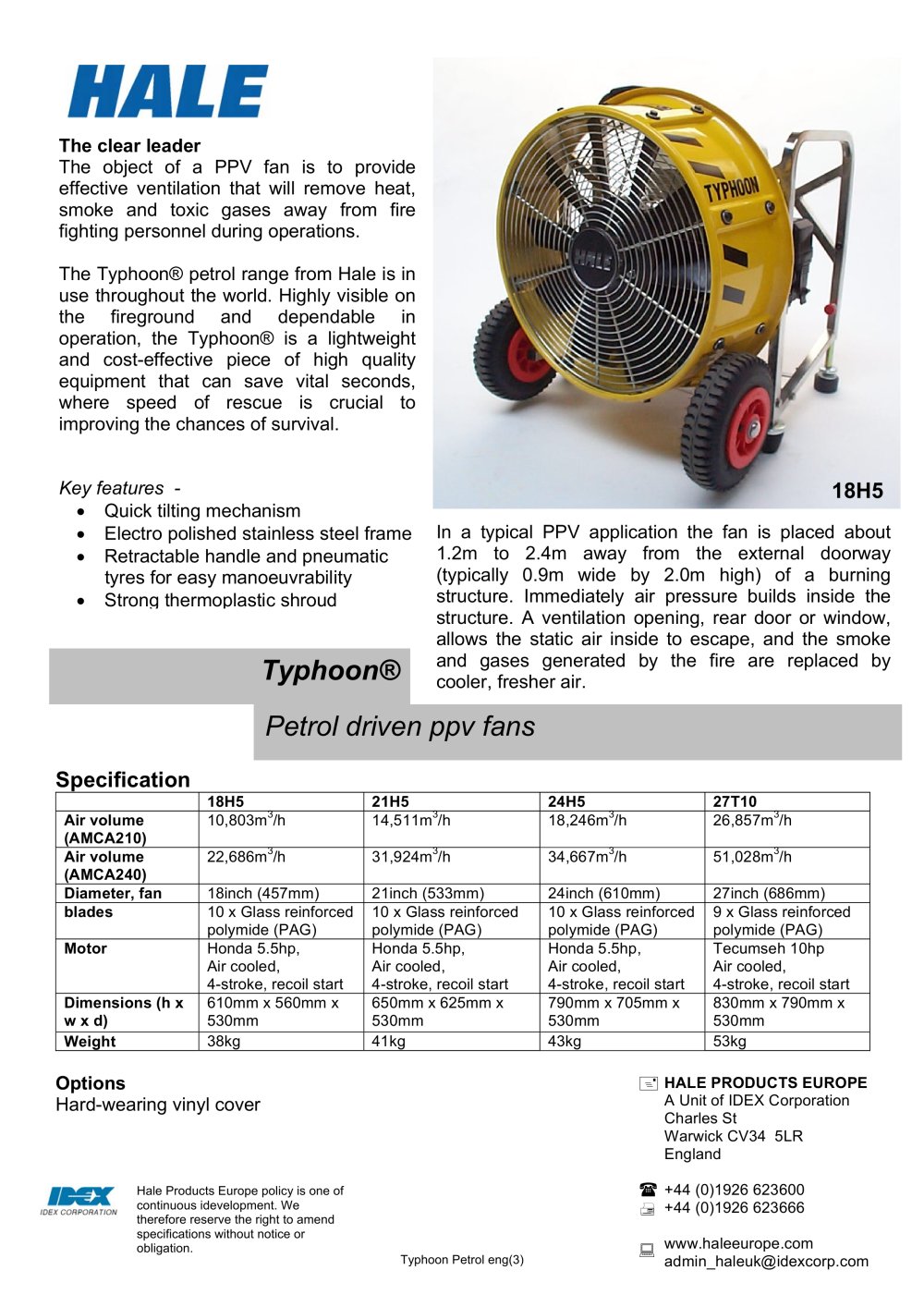

Catalog excerpts

Petrol driven ppv fans Typhoon® The clear leader The object of a PPV fan is to provide effective ventilation that will remove heat, smoke and toxic gases away from fire fighting personnel during operations. The Typhoon® petrol range from Hale is in use throughout the world. Highly visible on the fireground and dependable in operation, the Typhoon® is a lightweight and cost-effective piece of high quality equipment that can save vital seconds, where speed of rescue is crucial to improving the chances of survival. Key features - • Quick tilting mechanism • Electro polished stainless steel frame • Retractable handle and pneumatic tyres for easy manoeuvrability • Strong thermoplastic shroud In a typical PPV application the fan is placed about 1.2m to 2.4m away from the external doorway (typically 0.9m wideby 2.0m high) of a burning structure. Immediately air pressure builds inside the structure. A ventilation opening, rear door or window, allows the static air inside to escape, and the smoke and gases generated by the fire are replaced by cooler, fresher air. 18H5 Typhoon Petrol eng(3) Specification 18H5 21H5 24H5 27T10 Air volume (AMCA210) 10,803m3/h 14,511m3/h 18,246m3/h 26,857m3/h Air volume (AMCA240) 22,686m3/h 31,924m3/h 34,667m3/h 51,028m3/h Diameter, fan 18inch (457mm) 21inch (533mm) 24inch (610mm) 27inch (686mm) blades 10 x Glass reinforced polymide (PAG) 10 x Glass reinforced polymide (PAG) 10 x Glass reinforced polymide (PAG) 9 x Glass reinforced polymide (PAG) Motor Honda 5.5hp, Air cooled, 4-stroke, recoil start Honda 5.5hp, Air cooled, 4-stroke, recoil start Honda 5.5hp, Air cooled, 4-stroke, recoil start Tecumseh 10hp Air cooled, 4-stroke, recoil start Dimensions (h x w x d) 610mm x 560mm x 530mm 650mm x 625mm x 530mm 790mm x 705mm x 530mm 830mm x 790mm x 530mm Weight 38kg 41kg 43kg 53kg Options Hard-wearing vinyl cover HALE PRODUCTS EUROPE A Unit of IDEX Corporation Charles St Warwick CV34 5LR England +44 (0)1926 623600 +44 (0)1926 623666 www.haleeurope.com [email protected] .. .. .. .. Hale Products Europe policy is one of continuous idevelopment. We therefore reserve the right to amend specifications without notice or obligation.
