Powerflow 8/5 Complete Range

Product catalog summary

Overview
The PowerFlow 8/5 Compact Portable Fire Pump is designed for high performance and portability, featuring both single and twin discharge models. It is equipped with a Briggs & Stratton 18HP engine, offering a flow rate of 1400 litres at 3 bar and 800 litres at 5 bar. The pump is noted for its compact size, lightweight design, and low noise emissions.

Specifications
- Engine: Briggs & Stratton 18HP Vanguard, air-cooled, horizontal shaft
- Flow Rate: 1400 litres/min at 3 bar
- Maximum Outlet Pressure: 8.2 bar
- Weight: Single discharge model: 62 Kg dry, 70 Kg wet; Twin discharge model: 63.5 Kg dry, 71.5 Kg wet
- Dimensions: Single: 555 x 490 x 584 mm; Twin: 555 x 500 x 584 mm
- Fuel Capacity: 8.5 litres, allowing 1½ hours of operation
- Priming: Exhaust gas ejector priming or hand priming

Features
- Compact and lightweight design
- Low noise emission for quieter operation
- Large capacity fuel tank for extended use
- Stainless steel wraparound frame for durability
- Electric starting with manual start backup
- 180° swivel discharge valve for flexible hose layout

Options and Benefits
- Lighting mast for improved night-time operation
- Designed for cooler, cleaner engine operation, extending engine life
- Faster and more efficient priming process
- Suitable for various operational requirements

Performance Data
The pump is designed to provide reliable performance with a maximum priming lift of 6m for exhaust priming models and 7.5m for hand priming models. It includes a combined electrical socket for battery charging and lighting mast extension.

Manufacturer Information
Hale Products Europe, a unit of IDEX Corporation, is committed to continuous development and reserves the right to amend specifications without notice. For more information, visit their website or contact them directly.

Catalog excerpts

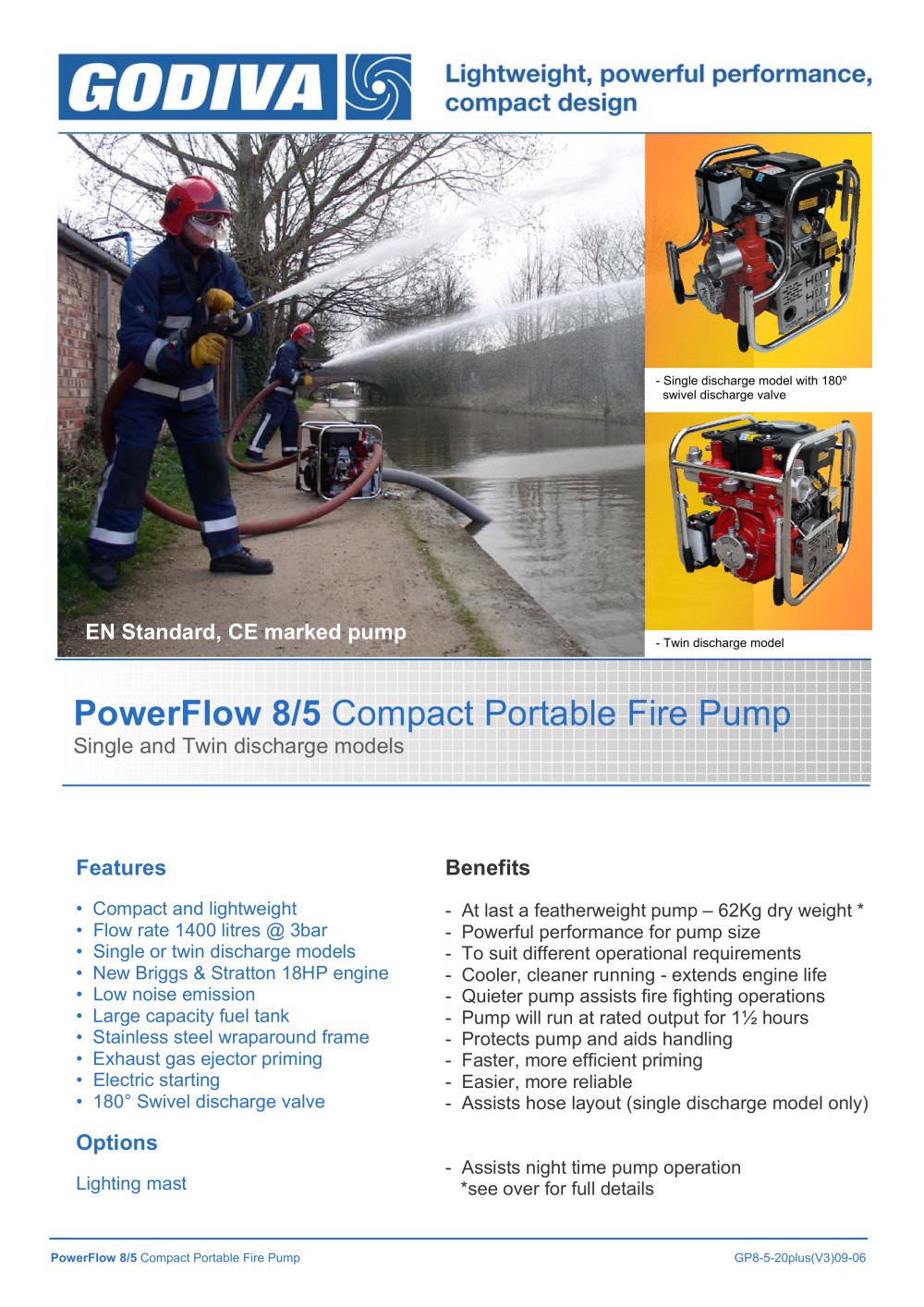

- Single discharge model with 180º swivel discharge valve - Twin discharge model EN Standard, CE marked pump PowerFlow 8/5 Compact Portable Fire Pump Single and Twin discharge models Features • Compact and lightweight • Flow rate 1400 litres @ 3bar • Single or twin discharge models • New Briggs & Stratton 18HP engine • Low noise emission • Large capacity fuel tank • Stainless steel wraparound frame • Exhaust gas ejector priming • Electric starting • 180° Swivel discharge valve Options Lighting mast Benefits - At last a featherweight pump – 62Kg dry weight * - Powerful performance for pump size - To suit different operational requirements - Cooler, cleaner running - extends engine life - Quieter pump assists fire fighting operations - Pump will run at rated output for 1½ hours - Protects pump and aids handling - Faster, more efficient priming - Easier, more reliable - Assists hose layout (single discharge model only) - Assists night time pump operation *see over for full details PowerFlow 8/5 Compact Portable Fire Pump GP8-5-20plus(V3)09-06

Open the catalog to page 1

The latest version of the PowerFlow 8/5 Compact is now the highest performing yet most compact portable pump in its class. It now includes the latest version of the Briggs and Stratton 18HP Vanguard engine -a cooler, cleaner more efficient engine. It is also one of the quietest pumps available. Designed to provide 800l/min at 5 bar and over 1400l/min at 3 bar, every detail and feature of the PowerFlow 8/5 has been carefully designed and built with evaluation and tests carried out with the help of our customers and professional fire personnel to provide a lifetime of dependable operation. This...
