Powerflow 10/10

Product catalog summary

Overview: The Godiva PowerFlow 10/10 is a compact and powerful portable fire pump designed for high performance and reliability. It delivers a continuous performance of 1000 liters per minute at 10 bar with a 3-meter lift, making it the smallest and most compact pump of its type globally. It has been extensively evaluated and approved by professional firefighters.

Key Features:

Protective stainless steel frame and aluminum pump.
Comprehensive instrumentation and closed circuit cooling system with heat exchanger.
Powered by a 3-cylinder vertical shaft 4-stroke Honda engine with electronic ignition and overspeed protection.
Automatic slow down protection system for high water temperature or low oil pressure, with warning lights.
No external belts and a rotationally molded 14-liter fuel tank for 1-hour operation.
Remote fuel tank connection, exhaust gas ejection priming system, and integral wheels for maneuverability.
Optional features include a lighting mast, suction and discharge couplings, and extending handles.

Performance Data:

Maximum recommended speed: 6000 rpm.
Maximum outlet pressure: 16 bar.
Maximum flow: 2100 liters/min.
Weight (dry): 97 kg.
Dimensions: 675 x 496 x 606 mm.
Priming time to 7.2 m: 24 seconds.
Coolant capacity: 6 liters; Oil capacity: 2.2 liters; Fuel capacity: 14 liters.

Instrumentation:

Throttle, compound gauge (-1.0 to 16 bar), pressure gauge (25 bar), and gauge illumination.
High water temperature and low oil pressure warning lights.
Choke control, on/off switch, start button, and hours counter.

Options:

Telescopic 55w floodlight.
Separate fuel tank with quick release connector.
Extending handles.

Contact Information: Hale Products Europe, a unit of IDEX Corporation, located at Charles St, Warwick, CV34 5LR. Phone: +44 (0)1926 623600, Email: [email protected], Website: www.haleeurope.com.

Catalog excerpts

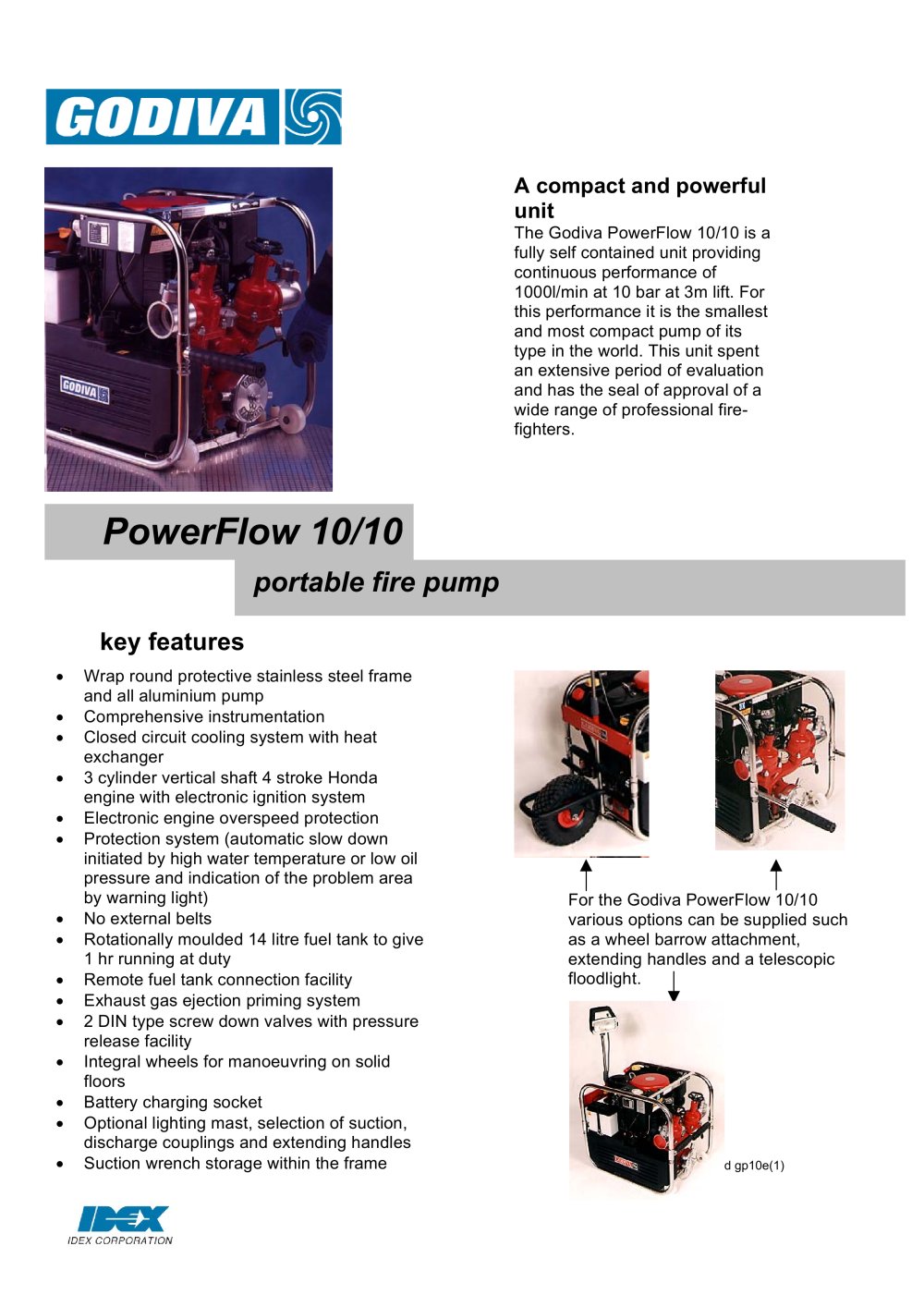

A compact and powerful unit The Godiva PowerFlow 10/10 is a fully self contained unit providing continuous performance of 1000l/min at 10 bar at 3m lift. For this performance it is the smallest and most compact pump of its type in the world. This unit spent an extensive period of evaluation and has the seal of approval of a wide range of professional fire-fighters. portable fire pump PowerFlow 10/10 2sided gp10e(1) key features • • • • • • • • • • • • • • • Wrap round protective stainless steel frame and all aluminium pump Comprehensive instrumentation Closed circuit cooling system with heat exchanger 3 cylinder vertical shaft 4 stroke Honda engine with electronic ignition system Electronic engine overspeed protection Protection system (automatic slow down initiated by high water temperature or low oil pressure and indication of the problem area by warning light) No external belts Rotationally moulded 14 litre fuel tank to give 1 hr running at duty Remote fuel tank connection facility Exhaust gas ejection priming system 2 DIN type screw down valves with pressure release facility Integral wheels for manoeuvring on solid floors Battery charging socket Optional lighting mast, selection of suction, discharge couplings and extending handles Suction wrench storage within the frame For the Godiva PowerFlow 10/10 various options can be supplied such as a wheel barrow attachment, extending handles and a telescopic floodlight.

Open the catalog to page 1

Performance Data Maximum Recommended Speed 6000 rpm Maximum Outlet Pressure 16 bar Maximum Flow 2100 litres/min Weight (dry) 97 kg Typical Dimensions (L x W x H) 675 x 496 x 606 mm Priming Times to 7.2 m 24 sec Coolant Capacity 6 litres Oil Capacity 2.2 litres Fuel Capacity 14 litres (1 hour running) Basis of Data: GP10/10 light alloy pump with 4" suction; 2 x 2½" delivery valves PowerFlow 10/10 portable fire pump Hale Products Europe policy is one of continuous development. We therefore reserve the right to amend specifications without notice or obligation. Instruments • • • • • • • • • • Throttle...

Open the catalog to page 2
