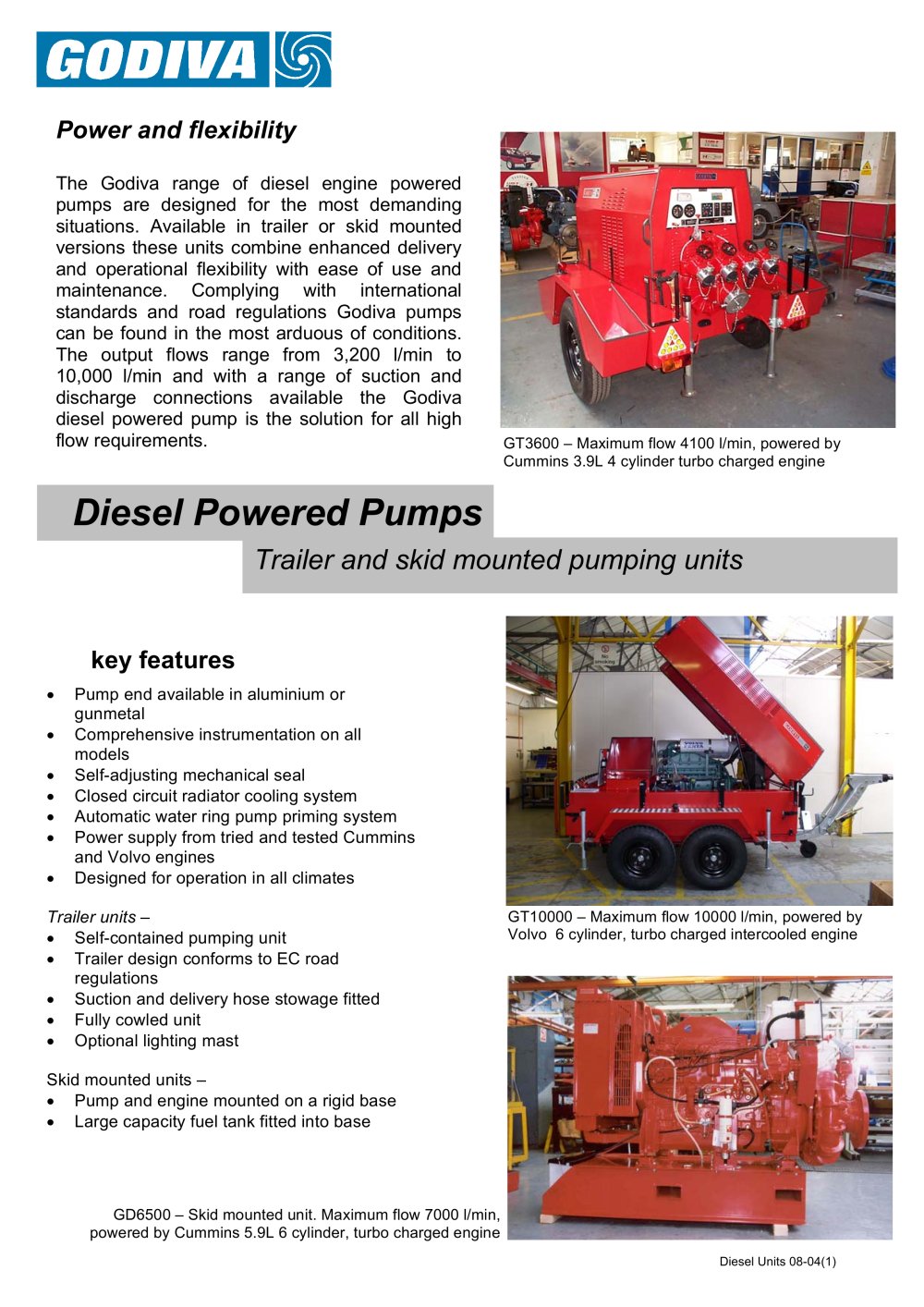

Power and flexibility The Godiva range of diesel engine powered pumps are designed for the most demanding situations. Available in trailer or skid mounted versions these units combine enhanced delivery and operational flexibility with ease of use and maintenance. Complying with international standards and road regulations Godiva pumps can be found in the most arduous of conditions. The output flows range from 3,200 l/min to 10,000 l/min and with a range of suction and discharge connections available the Godiva diesel powered pump is the solution for all high flow requirements. GT3600 – Maximum flow 4100 l/min, powered by Cummins 3.9L 4 cylinder turbo charged engine Diesel Powered Pumps Trailer and skid mounted pumping units GD6500 – Skid mounted unit. Maximum flow 7000 l/min,powered by Cummins 5.9L 6 cylinder, turbo charged engine key features • • • • • • • • • • • • • • Pump end available in aluminium or gunmetal Comprehensive instrumentation on all models Self-adjusting mechanical seal Closed circuit radiator cooling system Automatic water ring pump priming system Power supply from tried and tested Cummins and Volvo engines Designed for operation in all climates Trailer units – Self-contained pumping unit Trailer design conforms to EC road regulations Suction and delivery hose stowage fitted Fully cowled unit Optional lighting mast Skid mounted units – Pump and engine mounted on a rigid base Large capacity fuel tank fitted into base GT10000 – Maximum flow 10000 l/min, powered by Volvo 6 cylinder, turbo charged intercooled engine Diesel Units 08-04(1)

Specification Data Trailer - GT Bedplate - GD GT2700 GD2700 GT3600 GD3600 GT5300 GD5300 GD5410 GT6500 GD6500 GT10000 GD10000 Priming Performance Range To 8m (26') To 8m (26') To 8m (26') To 8m (26') To 8m (26') To 8m (26') Maximum Outlet Pressure 14bar 13bar 13bar 13bar 17.5bar 18bar Maximum Flow 3200l/min 4100l/min 5700l/min 5300l/min 7000l/min 9500l/min Godiva Performance Curve DS371 DS424 DS531 DS363/3 DS372 DS408-2 Trailer - Dimensions (l x w x h) 3450mm x 1850mm x 1610mm 3450mm x 1850mm x 1610mm 3450mm x 1850mm x 1610mm N/A 3450mm x 1850mm x 1610mm 4500mm x 2240mm x 1900mm Dry Weight...
