Godiva Prima Series - vehicle mounted series

Product catalog summary

Overview: The Godiva Prima is a versatile, multi-pressure fire pump designed for rear or midship mounting on vehicles. It features a two-stage centrifugal design with both low and high-pressure impellers on a single stainless steel shaft, allowing for simultaneous multi-pressure operation.

Features:

Compact design for space efficiency.
Modular discharge manifold for flexible installation.
Standard mounting platform for ease of installation.
Light alloy and gunmetal material options for improved corrosion resistance.
Compliance with EN1028:1 standards.
Twin high-efficiency piston primers with auto/manual options.
New suction tube design for enhanced installation flexibility.

Benefits:

Increased room for additional equipment.
Faster and easier installation process.
Reduced whole life costs due to enhanced material selection.
Operational flexibility with quicker water delivery.

Performance Data:

Priming performance range up to 7.5m with a recommended speed of 2500 rpm.
Maximum suction pressure of 12 bar and maximum recommended speed of 3600 rpm.
Maximum outlet pressure: 17 bar (low pressure) and 54.5 bar (high pressure).
Maximum flow rates: 3400 to 7750 l/min (low pressure) and 770 l/min (high pressure).
Weight varies based on material, approximately 105 to 145.5 kg.
Typical dimensions range from 748 x 580 x 782 mm to 806 x 764 x 817 mm.

Options:

Round the pump low and high-pressure foam systems.
Water ring primer and control panel.
Two and three-way collecting head options.

Additional Information: The pump is designed for easy maintenance and reduced whole life costs. Godiva Ltd. reserves the right to amend specifications without notice.

Catalog excerpts

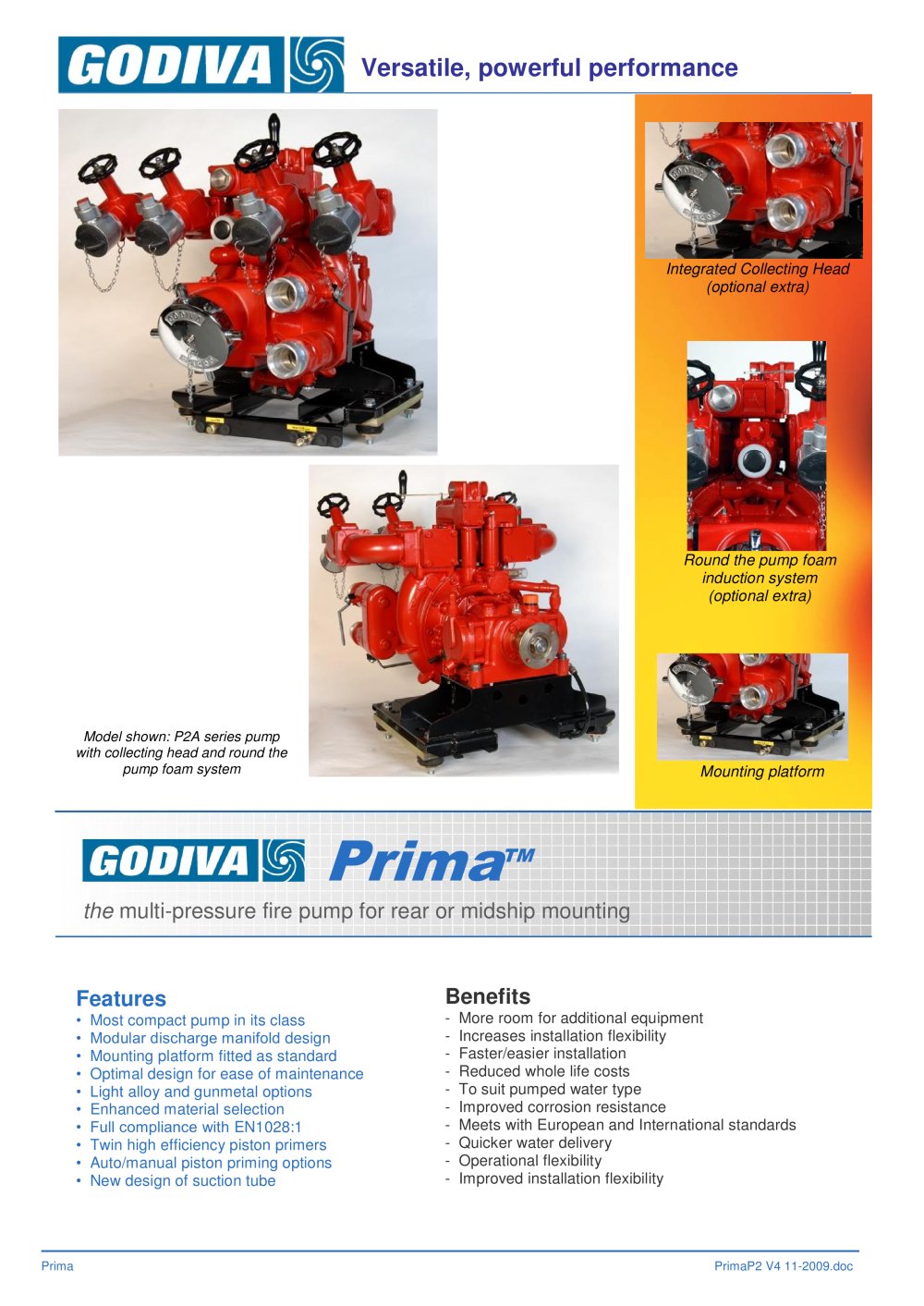

Godiva Prima Series - vehicle mounted series-1

Prima PrimaP2 V4 11-2009.doc Versatile, powerful performance Features • Most compact pump in its class • Modular discharge manifold design • Mounting platform fitted as standard • Optimal design for ease of maintenance • Light alloy and gunmetal options • Enhanced material selection • Full compliance with EN1028:1 • Twin high efficiency piston primers • Auto/manual piston priming options • New design of suction tube Benefits - More room for additional equipment - Increases installation flexibility - Faster/easier installation - Reduced whole life costs - To suit pumped water type - Improved corrosion resistance - Meets with European and International standards - Quicker water delivery - Operational flexibility - Improved installation flexibility PrimaTM the multi-pressure fire pump for rear or midship mounting Mounting platform Integrated Collecting Head (optional extra) Round the pump foam induction system (optional extra) Model shown: P2A series pump with collecting head and round the pump foam system

Open the catalog to page 1

Godiva Prima Series - vehicle mounted series-2

The Godiva Prima is designed for midship or rear vehicle mounting. It is a two stage centrifugal design, featuring both low and high pressure impellers on one stainless steel shaft to provide simultaneous multi-pressure operation. The pump is supplied with a ready-to-use mounting platform for ease of installation. The platform incorporates all necessary pump drainage connections and lifting points for forklift use. The suction tube provides three possible tank-to-pump connection points and integrated collecting head options further enhance the installation flexibility. The modular low pressure...
