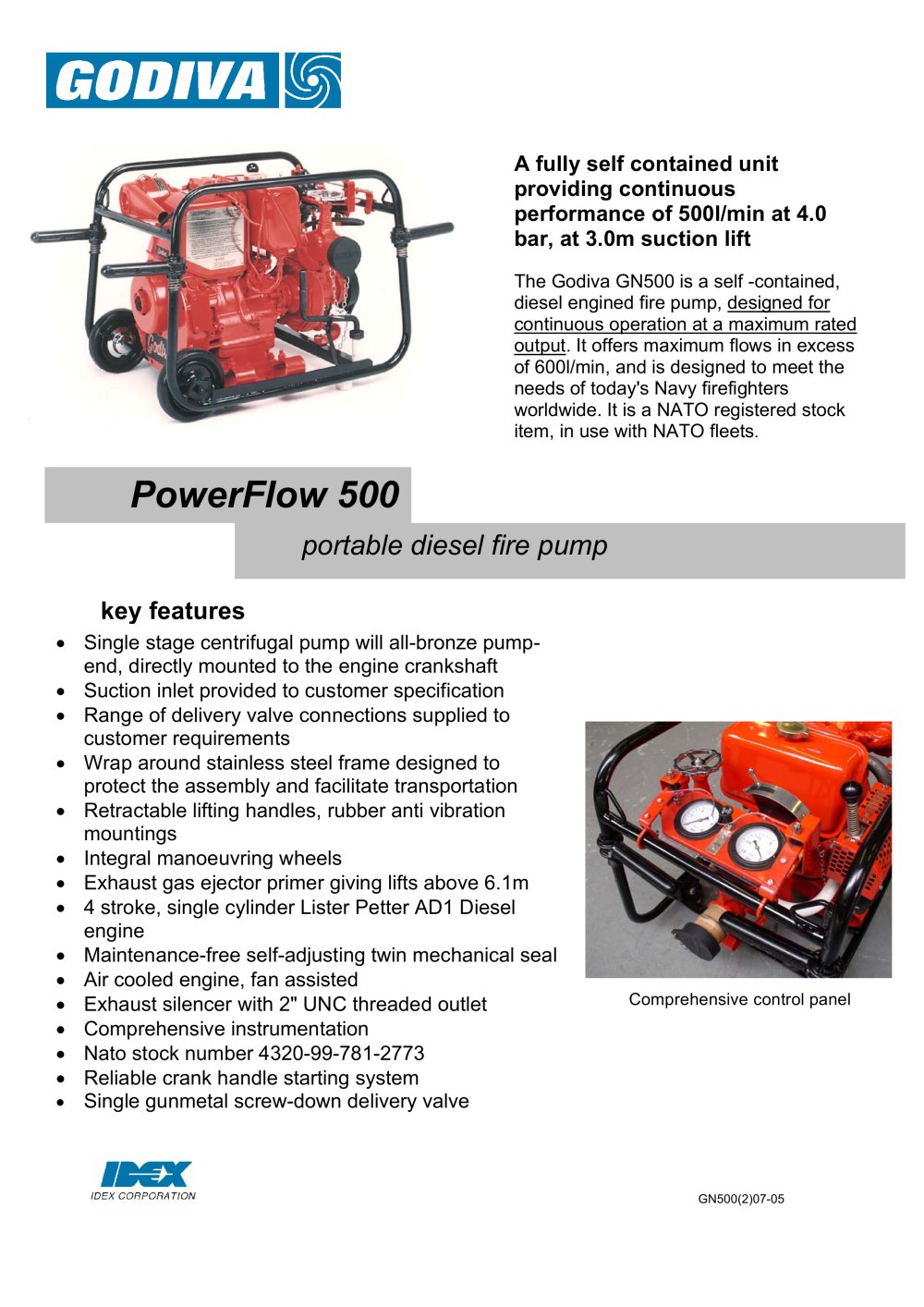

A fully self contained unit providing continuous performance of 500l/min at 4.0 bar, at 3.0m suction lift The Godiva GN500 is a self -contained, diesel engined fire pump, designed for continuous operation at a maximum rated output. It offers maximum flows in excess of 600l/min, and is designed to meet the needs of today's Navy firefighters worldwide. It is a NATO registered stock item, in use with NATO fleets. portable diesel fire pump PowerFlow 500 GN500(2)07-05 key features • • • • • • • • • • • • • • • Single stage centrifugal pump will all-bronze pump-end, directly mounted to the engine crankshaft Suction inlet provided to customer specification Range of delivery valve connections supplied to customer requirements Wrap around stainless steel frame designed to protect the assembly and facilitate transportation Retractable lifting handles, rubber anti vibration mountings Integral manoeuvring wheels Exhaust gas ejector primer giving lifts above 6.1m 4 stroke, single cylinder Lister Petter AD1 Diesel engine Maintenance-free self-adjusting twin mechanical seal Air cooled engine, fan assisted Exhaust silencer with 2" UNC threaded outlet Comprehensive instrumentation Nato stock number 4320-99-781-2773 Reliable crank handle starting system Single gunmetal screw-down delivery valve Comprehensive control panel

Performance Data Maximum Recommended Speed 3600rpm Maximum Outlet Pressure 6 bar Maximum Flow 650 litres/min Weight (dry) 113 kg Weight (wet) 119 kg Dimensions (L x W x H) 750 x 540 x 584 mm Fuel Capacity 5.1 litres (2 hours running at duty) Basis of Data: Pump fitted with 3" hose tail inlet, 2.5" inst. outlet PowerFlow 500 portable diesel fire pump Hale Products Europe policy is one of continuous development. We therefore reserve the right to amend specifications without notice or obligation. Controls & Instrumentation • • • • • Vacuum gauge: 0 to -1bar Pressure gauge: 0 to10bar Speed control...
