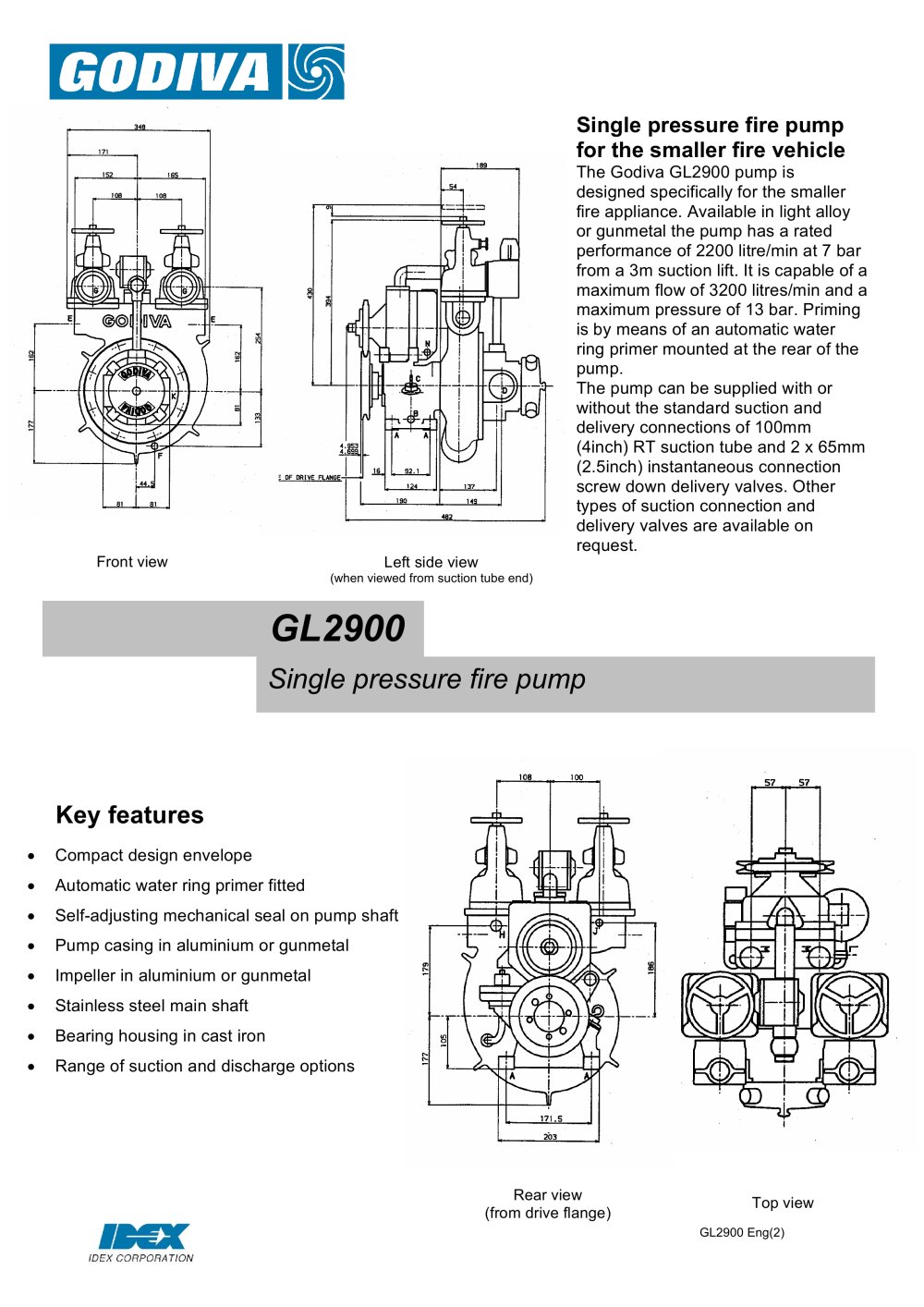

Single pressure fire pump for the smaller fire vehicle The Godiva GL2900 pump is designed specifically for the smaller fire appliance. Available in light alloy or gunmetal the pump has a rated performance of 2200 litre/min at 7 bar from a 3m suction lift. It is capable of a maximum flow of 3200 litres/min and a maximum pressure of 13 bar. Priming is by means of an automatic water ring primer mounted at the rear of the pump. The pump can be supplied with or without the standard suction and delivery connections of 100mm (4inch) RT suction tube and 2 x 65mm (2.5inch) instantaneous connection screw down delivery valves. Other types of suction connection and delivery valves are available on request. Front view Left side view (when viewed from suction tube end) Single pressure fire pump GL2900 Key features Compact design envelope Automatic water ring primer fitted Self-adjusting mechanical seal on pump shaft Pump casing in aluminium or gunmetal Impeller in aluminium or gunmetal Stainless steel main shaft Bearing housing in cast iron Range of suction and discharge options • • • • • • • • Rear view (from drive flange) Top view GL2900 Eng(2)

Open the catalog to page 1

Single pressure fire pump GL2900 Performance Data GL2900 Rated performance 2200 litre/min At 7 bar 3m lift Maximum Flow 3200 litre/min Maximum Pressure 13 bar Typical Dimensions (L x W x H mm) less suction tube and delivery valves 313 x 350 x 505 Typical Dimensions (L x W x H mm) 4 inch suction tube and 2 x delivery valves 485 x 350 x 610 Direction of Pump Rotation Clockwise (viewed on drive flange) .. .. .. .. HALE PRODUCTS EUROPE A Unit of IDEX Corporation Charles St Warwick CV34 5LR England +44 (0)1926 623600 +44 (0)1926 623666 www.haleeurope.com admin_haleuk@idexcorp.com Options • •...
