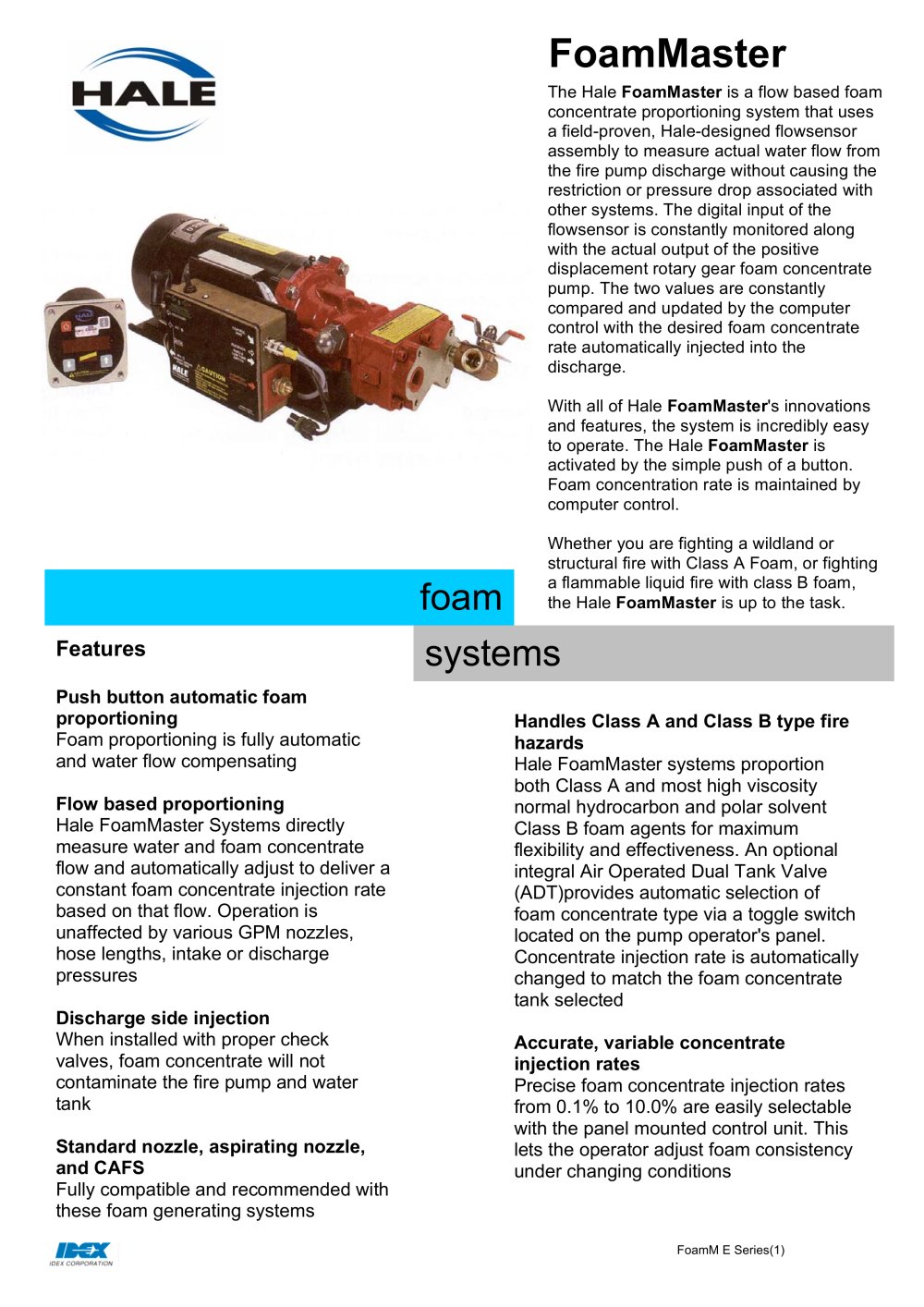

FoamMaster The Hale FoamMaster is a flow based foam concentrate proportioning system that uses a field-proven, Hale-designed flowsensor assembly to measure actual water flow from the fire pump discharge without causing the restriction or pressure drop associated with other systems. The digital input of the flowsensor is constantly monitored along with the actual output of the positive displacement rotary gear foam concentrate pump. The two values are constantly compared and updated by the computer control with the desired foam concentrate rate automatically injected into the discharge. With all of Hale FoamMaster's innovations and features, the system is incredibly easy to operate. The Hale FoamMaster is activated by the simple push of a button. Foam concentration rate is maintained by computer control. Whether you are fighting a wildland or structural fire with Class A Foam, or fighting a flammable liquid fire with class B foam, the Hale FoamMaster is up to the task. systems foam Features Push button automatic foam proportioning Foam proportioning is fully automatic and water flow compensating Flow based proportioning Hale FoamMaster Systems directly measure water and foam concentrate flow and automatically adjust to deliver a constant foam concentrate injection rate based on that flow. Operation is unaffected by various GPM nozzles, hose lengths, intake or discharge pressures Discharge side injection When installed with proper check valves, foam concentrate will not contaminate the fire pump and water tank Standard nozzle, aspirating nozzle, and CAFS Fully compatible and recommended with these foam generating systems Handles Class A and Class B type fire hazards Hale FoamMaster systems proportion both Class A and most high viscosity normal hydrocarbon and polar solvent Class B foam agents for maximum flexibility and effectiveness. An optional integral Air Operated Dual Tank Valve (ADT)provides automatic selection of foam concentrate type via a toggle switch located on the pump operator's panel. Concentrate injection rate is automatically changed to match the foam concentrate tank selected Accurate, variable concentrate injection rates Precise foam concentrate injection rates from 0.1% to 10.0% are easily selectable with the panel mounted control unit. This lets the operator adjust foam consistency under changing conditions FoamM E Series(1)

FoamMaster FoamM E Series(1) MODEL 3.3 System Specifications Foam Pump Rotary Gear Foam Output 12 l/min (3.3USG/min) System Operating Pressure 10 bar (150psi) Max. Operating Pressure 28 bar (400 psi) Max. Operating Temperature 71°C (160°F) Pump Motor 12V DC 3/4 hp (.5Kw) Operating Amp draw 20 A Max. Amp draw 60 A system capacity0100020003000400050000.30.5136foam concentration %water flow -l/min MODEL 5.0 System Specifications Foam Pump Rotary Gear Foam Output 19 l/min (5.0USG/min) System Operating Pressure 9 bar (125 psi) Max. Operating Pressure 17 bar (250 psi) Max. Operating Temperature...
