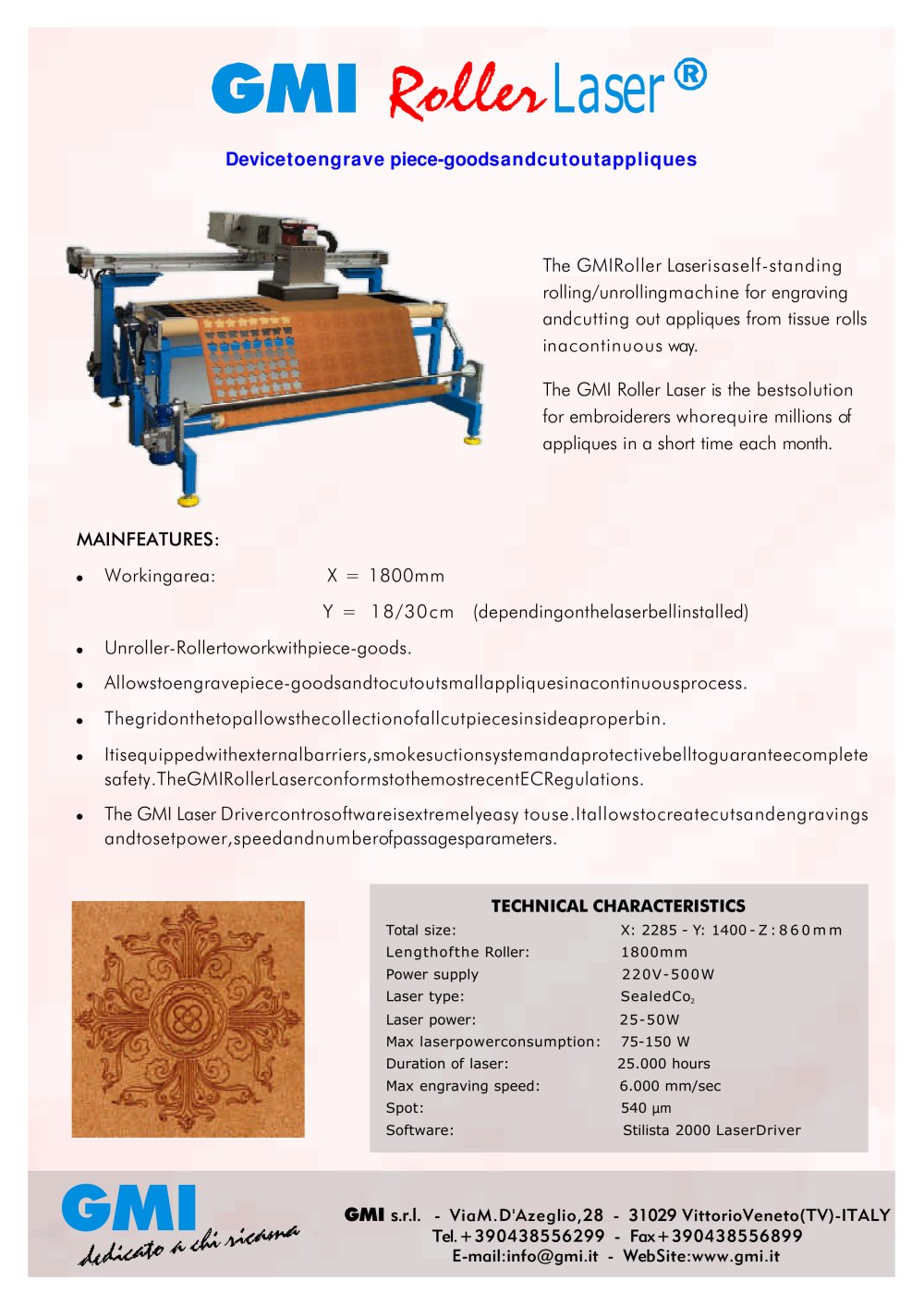

GMI RollerLaser
Product catalog summary
Main Features:
- The GMI Roller Laser is a self-standing machine designed for continuous engraving and cutting of appliques from tissue rolls, ideal for high-volume embroidery needs.
- Working area dimensions are X = 1800mm and Y = 18/30cm, depending on the installed laser bell.
- Equipped with an unroller-roller system to handle piece-goods, allowing for continuous processing of small appliques.
- A top grid facilitates the collection of cut pieces into a designated bin.
- Safety features include external barriers, a smoke suction system, and a protective bell, ensuring compliance with the latest EC Regulations.
- The GMI Laser Driver control software is user-friendly, enabling the creation of cuts and engravings with adjustable power, speed, and passage parameters.
- Total machine size: X: 2285mm, Y: 1400mm, Z: 860mm.
- Roller length: 1800mm.
- Power supply requirements: 220V-500W.
- Laser type: Sealed CO2 laser with power ranging from 25-50W.
- Maximum laser power consumption: 75-150W.
- Laser lifespan: 25,000 hours.
- Maximum engraving speed: 6,000 mm/sec.
- Spot size: 540 µm.
- Software used: Stilista 2000 Laser Driver.
