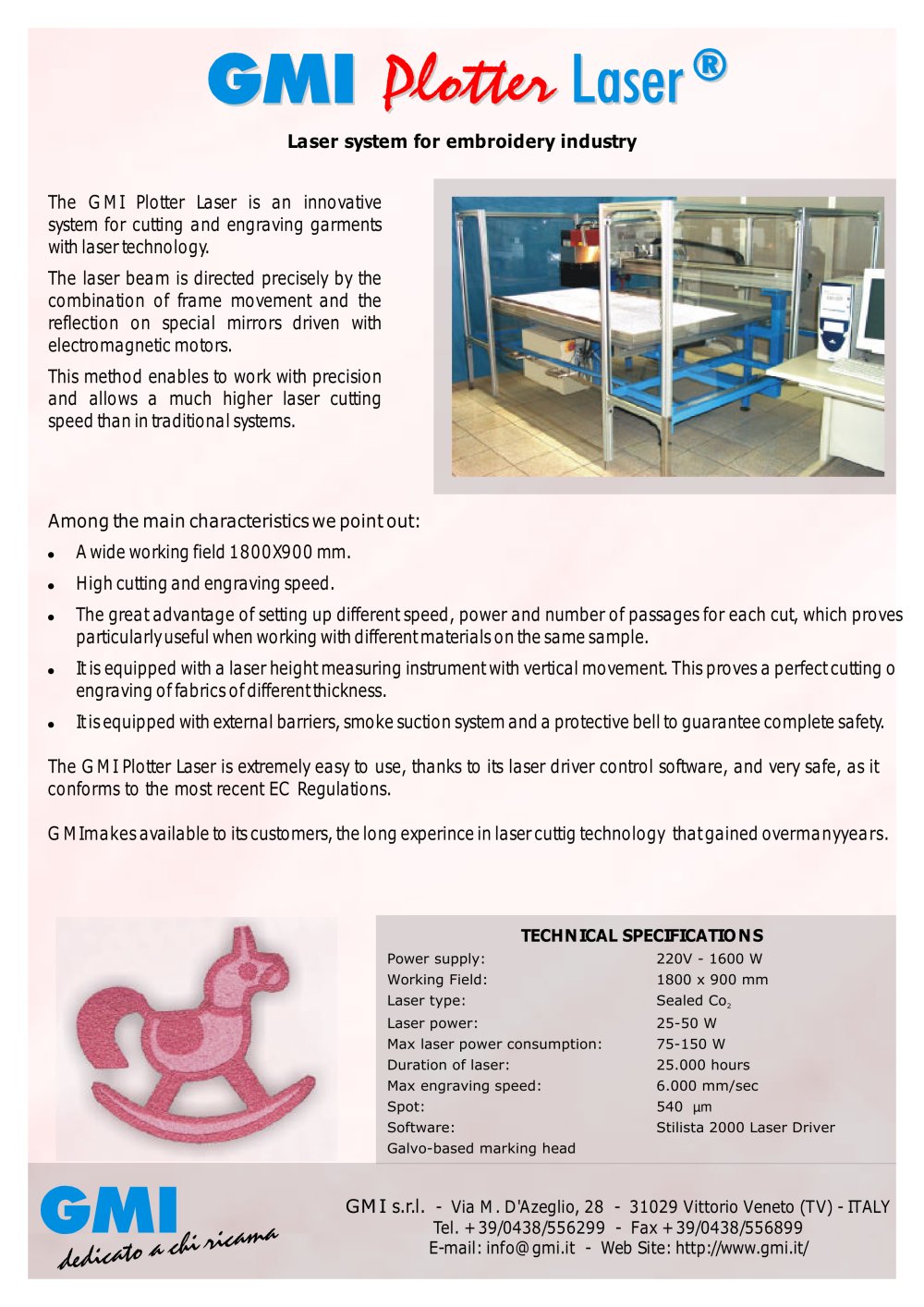

GMI PlotterLaser

Product catalog summary

Overview: The GMI Plotter Laser is an advanced system designed for cutting and engraving garments using laser technology. It combines frame movement and mirror reflection, driven by electromagnetic motors, to direct the laser beam with precision, offering higher cutting speeds than traditional methods.

Main Characteristics:

Wide working field of 1800x900 mm.
High cutting and engraving speed.
Ability to set different speeds, power, and number of passages for each cut, beneficial for working with various materials.
Equipped with a laser height measuring instrument for perfect cutting or engraving of fabrics with different thicknesses.
Includes external barriers, a smoke suction system, and a protective bell for complete safety.
User-friendly with laser driver control software and compliance with recent EC Regulations.

Technical Specifications:

Power supply: 220V - 1600 W
Working Field: 1800 x 900 mm
Laser type: Sealed CO₂
Laser power: 25-50 W
Max laser power consumption: 75-150 W
Laser duration: 25,000 hours
Max engraving speed: 6,000 mm/sec
Spot size: 540 µm
Software: Stilista 2000 Laser Driver
Galvo-based marking head

Achievable Works:

Engraving
Perfectly shaped emblems in minutes
Clean and precise cuts of different materials, with or without frames
Progressively numbered labels for exclusive productions

Contact Information: GMI s.r.l., Via M. D'Azeglio, 28, 31029 Vittorio Veneto (TV), ITALY. Tel: +39/0438/556299, Fax: +39/0438/556899, Email: [email protected], Website: www.gmi.it
