GMI D5000-D5200 Datasheets
GMI D5000-D5200 Datasheets
GM International, founded by Glisente Landrini, specializes in designing and manufacturing intrinsically safe products for hazardous environments, particularly in the Oil & Gas, petrochemical, and pharmaceutical industries. With over 40 years of experience, the company offers SIL-rated products globally.
GM International provides a wide range of intrinsically safe and SIL 3 certified devices, ensuring high safety and quality standards. Their products are used in various automation systems and are certified by international bodies such as ATEX, IECEx, UL/FM, and others.
- D5295 Relay Module: Suitable for safety-related circuits up to SIL 3, offering high process availability and compatibility with DCS/PLC systems. Features include load disconnection, fault detection, and Modbus RTU for monitoring.
- D5011 Repeater Power Supply: Provides a floating DC supply for 4-20 mA transmitters in hazardous areas, ensuring high accuracy and safety with SIL 3 certification.
- D5295: Operates at 24 Vdc, supports up to 5 A load, and includes diagnostic features like line and load short/open circuit detection.
- D5011: Offers 4-20 mA input/output, high accuracy, and three-port isolation, suitable for Zone 0/Div. 1 installations.
Both products are designed for extreme temperatures (-40 to +70 °C) and can be mounted on DIN-Rail systems. They feature robust isolation and diagnostic capabilities to ensure reliability in hazardous conditions.
GM International's products are engineered to meet stringent safety standards, providing reliable solutions for industries operating in hazardous environments. Their commitment to safety and quality is reflected in their extensive certifications and global installations.
- D5014: A SIL3 2/4-wire HART® transmitter power supply with two independent channels, supporting 4-20 mA active-passive input and source-sink output. It features high accuracy, short circuit protection, and in-field programmability.
- D5015: A SIL2 2/4-wire HART® transmitter power supply with options for source or sink output. It offers high accuracy and short circuit protection, suitable for safety-related systems requiring SIL2 level.
- D5016: A SIL3 2-wire active HART® current repeater with two independent channels, designed for high-risk industries. It supports bi-directional communication for HART® devices.
- D5212: A SIL2 2/4-wire transmitter power supply with four channels, offering duplication, inversion, and scaling output capabilities. It includes input operations such as sum, difference, maximum, and minimum.
- All modules are designed for installation in Zone 2/Division 2 and input from Zone 0/Division 1.
- They provide three-port isolation (Input/Output/Supply) and are compatible with HART® communication.
- Environmental conditions include operating temperatures from -40 to +70 °C and storage temperatures from -45 to +80 °C.
- Mounting is facilitated via DIN-Rail 35 mm, with options for power bus or custom terminal board.
GM International products are certified by leading notified bodies and conform to IEC61508:2010 for safety-related systems up to SIL3. The document emphasizes the importance of user verification and judgment in application suitability.
Each product has specific ordering codes and available accessories, such as bus connectors and mounting kits, to facilitate installation and integration.
- All modules are designed for DIN-Rail mounting and feature reverse polarity protection.
- They are certified to conform to IEC61508:2010 for safety-related systems up to SIL3.
- Each module includes detailed specifications for supply, input, output, isolation, and environmental conditions.
GM International's modules are engineered to provide reliable and safe operation in hazardous environments, meeting stringent safety standards and offering advanced features for monitoring and configuration.
- D5030: Relay output with high voltage/current rating, field open and short circuit detection, and in-field programmability via DIP switch.
- D5031: High-frequency transistor output, suitable for applications requiring fast response times.
- D5032: Similar to D5030 but with different contact ratings and mechanical/electrical life specifications.
- D5034: Line-fault transparent switch/proximity repeater with high accuracy and field fault mirroring to PLC NAMUR DI.
GM International is certified to conform to IEC61508:2010 for safety-related systems up to SIL3. The products have I.S. certificates from recognized Notified Bodies.
The document emphasizes that the data provided are descriptive and should be supplemented with technical specifications. Users are advised to refer to the instruction manual for detailed installation diagrams and further information.
1. Electrical Ratings: The document specifies various voltage and current ratings for different configurations, including In/Supply 2.5 kV, I.S. In/I.S. In 500 V, Out/Supply 500 V, and Out/Out 500 V.
2. Environmental Conditions: Operating temperature ranges from -40 to +70 °C, and storage temperature ranges from -45 to +80 °C.
3. Safety Description: The equipment is described as associated apparatus and non-sparking electrical equipment with specific voltage and current ratings at designated terminals.
1. Mounting: The equipment can be mounted on a DIN-Rail 35 mm, with or without Power Bus, or on a custom terminal board.
2. Dimensions: The dimensions are specified as Width 12.5 mm, Depth 123 mm, Height 120 mm.
3. Weight: The weight varies slightly between models, approximately 140 g for D5034D and 115 g for D5034S.
GM International is certified to conform to IEC61508:2010 part 1 clauses 5-6 for safety-related systems up to and including SIL3. The products have been granted I.S. certificates from reputable Notified Bodies.
1. D5036 Switch/Proximity Relay-Out Repeater: Suitable for SIL 2 level applications, with features like high voltage/current rating relay output, field open and short circuit detection, and in-field programmability.
2. D5037 Switch/Proximity Transistor-Out Repeater: Designed for SIL 2 level applications, featuring high frequency transistor output and field fault detection.
3. D5038 Line-Fault Transparent Switch/Proximity Repeater: Suitable for SIL 3 level applications, with line monitoring transparency and field fault universal mirroring to PLC DI.
Each product has specific ordering codes and available accessories, such as Bus Connector JDFT049 and Bus Mounting Kit OPT5096.
The document emphasizes that the data provided are descriptive and should be supplemented with technical specifications. The products are under constant development, and users are advised to verify the information and refer to the instruction manual for more details.
Highlighted features include:
- High accuracy and µP controlled A/D converter.
- Three-port isolation for input/output/supply.
- Fully programmable operating parameters and alarm functions.
- Support for various input types including millivolt, thermocouple, and RTD.
This document provides technical specifications and features of GM International's products designed for safe and efficient operation in hazardous and safe areas. The products include the D5263 Load Cell/Strain Gauge Bridge Repeater, D5264 Load Cell/Strain Gauge Bridge Converter, and D5202 Power Distribution with Diagnostics.
- Purpose: Acts as a transparent galvanic isolated interface between a weighing indicator in a safe area and load cells in a hazardous area.
- Features: Supports up to four 350 Ω load cells in parallel, provides a floating power supply, and repeats mV signal output.
- Specifications: 24 Vdc supply, 75 mA current consumption, 1.8 W power dissipation, and 2.5 kV isolation.
- Performance: High accuracy with calibration and linearity accuracy of ≤ ± 0.003 % and ≤ ± 0.002 % input FSR, respectively.
- Purpose: Converts mV signals from load cells into 0/4-20 mA signals for PLC/DCS systems in safe areas.
- Features: Supports Modbus RTU RS-485 for monitoring and configuration, and provides alarm outputs.
- Specifications: 24 Vdc supply, 90 mA current consumption, 2.1 W power dissipation, and 2.5 kV isolation.
- Performance: Calibration accuracy of ≤ ± 0.05 % FSR and linearity accuracy of ≤ ± 0.02 % FSR.
- Purpose: Protects power systems by limiting maximum supply current for D5000 modules and provides diagnostics.
- Features: Supports single or redundant 24 Vdc supply, replaceable fuses, and low internal dissipation.
- Specifications: 24 Vdc supply, capable of supplying current to approximately 40-50 D5000 modules, and includes SPDT relay for remote alarming.
All products conform to IEC61508:2010 for safety systems up to SIL3 and have I.S. certificates from recognized bodies.
Operating temperature range of -40 to +70 °C and storage temperature range of -45 to +80 °C.
Products are designed for DIN-Rail mounting with options for power bus or custom terminal boards.
The document outlines the electrical specifications for the D5000 - D5200 Series, including fault output and input voltages, as well as supply voltages. The environmental conditions specify operating temperatures from -40 to +70 °C and storage temperatures from -45 to +80 °C. The devices are mounted on a 35 mm DIN-Rail and weigh approximately 235 g. Connections are made via polarized plug-in disconnect screw terminal blocks.
GM International is certified to conform to IEC61508:2010 part 1 clauses 5-6 for safety-related systems up to SIL3. The products have I.S. certificates from recognized Notified Bodies.
The D5000 - D5200 Series features high channel density due to advanced circuit design and surface mount components. The modules are mounted on a 35 mm DIN-Rail and can be connected via a Power Bus system. The dimensions for the D5000 are 12.5 mm width, 123 mm depth, and 120 mm height, while the D5200 is 22.5 mm width, 123 mm depth, and 120 mm height.
The document provides detailed instructions for mounting and removing modules from the DIN-Rail and Termination Board. It includes diagrams for proper installation and removal techniques. The Power Bus system allows for easy connection and disconnection without removing the bus connector.
The document specifies the conductor cross-sections for solid and stranded wires, with and without ferrules, and provides stripping lengths and screwdriver sizes for terminal block connections.
The document mentions various approvals and certifications for the D5000 - D5200 Series, ensuring compliance with safety and operational standards.
The document emphasizes that the data provided are descriptive and should be supplemented with technical specifications. Users are advised to refer to the instruction manual for more detailed information.
G.M. International's D5000 Series products have received IS certifications from leading Notified Bodies, ensuring compliance with IEC 61508 and IEC 61511 standards for safety throughout the instrumented system lifecycle. Additionally, the products have Maritime Type Approval for use in maritime and offshore applications, certified by the Korean Register of Shipping and Det Norske Veritas.
The company's production quality system is certified to comply with the ATEX 94/9/EC Directive and ISO 9001/2008, ensuring high-quality standards through periodic reassessment of manufacturing processes.
For long-term storage, units should be kept in environments with temperatures between -10 to +30 °C and humidity levels of 0 to 60% to maintain package integrity. Avoid prolonged vibration and exposure to pollutants to prevent damage.
Products should be disposed of separately from other wastes to prevent environmental harm, following applicable laws and guidelines for recycling and waste management.
The D5000 and D5200 modules require minimal maintenance under normal conditions. Unauthorized repairs are prohibited as they may invalidate safety features. Defective units should be replaced and sent to authorized representatives for repair.
Proper heat dissipation is crucial for the longevity and reliability of electronic equipment. Various cabinet configurations are discussed:
- Closed Cabinets with Natural Convection: Suitable for dusty environments, with modest heat dissipation capabilities.
- Open Cabinets with Natural Convection: Require clean environments, offering medium heat dissipation.
- Open Cabinets with Forced Ventilation: High heat dissipation capability, requiring airflow calculations.
- Closed Cabinets with Forced Ventilation and Heat Exchanger: Suitable for high power dissipation in harsh environments.
- Air Conditioned Cabinets: Ideal for hot climates, maintaining cabinet temperature at or below ambient levels.
For optimal performance, install isolators with consideration for heat dissipation and airflow. Horizontal installation improves heat transport, and units with higher power dissipation should be placed at the top of the cabinet. Maintain a minimum distance of 5 cm between isolators and cable ducts to ensure proper ventilation.
Catalog excerpts
OVER 40 YEARS IN INTRINSIC SAFETY AND INDUSTRIAL ELECTRONICS Glisente Landrini President In 1970 Glisente Landrini founded Elcon Instruments, which has been acknowledged as an international leader in the design and manufacturing of intrinsically safe products and systems. Mr. Landrini started GM International to provide state of the art SIL rated products and services to support Intrinsically safe applications in Oil & Gas, petrochemical and pharmaceutical industries. The company was founded in 1993, but the core management’s experience remarkably exceeds over 40 years of qualified activity in...
Open the catalog to page 4
Safety, performance, and reliability OUR PRODUCTS, OUR COMMITMENT GM International designs, engineers and manufactures a complete range of intrinsically safe and SIL 3 certified devices that meet the stringest quality requirements, ensuring the highest production standards in intrinsically safe applications. Our products are used in automation packages such as DCS - ESD - FGS - BMS - HIPPS PLC - SCADA, in several industrial sectors: Oil & Gas, petrochemical, pharmaceutical, fertilizer, mining, food & beverages, marine. SOCIAL RESPONSIBILITY We design intrinsically safe instruments and SIL certified...
Open the catalog to page 5
CERTIFIED INTRINSICALLY SAFE PRODUCTS Highest levels of safety INTRINSICALLY SAFE PRODUCTS AND IEC61508:2010 SIL CERTIFICATIONS GM International products have been granted I.S. certificates from the most credited notified bodies in the world. Certificates are available for ATEX (Europe), IECEx (International), UL/FM (USA and Canada), EAC-EX (Russia TR CU), CCC (China), PESO (India), TIIS (Japan), INMETRO (Brazil), ECAS-Ex (UAE) All certificates are available for download from our website. GM International offers a wide range of products that have been proved to comply with the most severe quality...
Open the catalog to page 6
Product ListI.S.Barriers D5000 SERIES ANALOG INPUT Models N. Ch. L.M. Input Output It uplicator Alarm SIL Size Note Active Passive Source Sink D!5011 1 v2 - • - • - - - SJ 12,5 mm HART-Live Fault Trasparent DA014 1 A 2 - 4 L • • • -3 1 2,4 vnm HDRT - Line Fault Trasparent DAM15S 1 - P 4 • • • - 2 12,5 mm HART - Line Fault Trasparent DLO-P —2 i - 4 U e CS - PI 1M,5mm HAR/i LinvCuult 4rusparent ANALOG OUTPUT Mo2 els V.C/i. L.M. Input Output Daplteetor Alarm SIL S * e lDA-e Voltage free contact Relay Namur Relay Voltage free contact Solid state Relay with Resistence Solid state Relay with Resistence...
Open the catalog to page 7
Models N. Ch. L.M. Input Output Power supply Alarm SIL Size Note D5062S 1 - Vibration sensor 0 to -20 V Bus powered - 2 12,5 mm D5263S 1 - Load Cells/Strain gauges Load Cells/Strain gauges Bus powered - 2 22,5 mm D5264S 1 • Load Cells/Strain gauges 4-20 mA Bus powered • 2 22,5 mm Modbus D5202S - • - 24 V, 4 A Bus powered • 3 22,5 mm Power feed module D5203S - - - - Bus powered • - 22,5 mm Diagnostic Module for DIN-rail Safety Relays SAFETY RELAY INPUT Model N. Ch. Relay Load Contact High Pulse Rating Availability test NO Configurable 50 mA - - - 3 DIP Switch configurable IN SAFETY RELAY OUTPUT...
Open the catalog to page 8
Intrinsically Safe Isolators
Open the catalog to page 9
ANALOG INPUT
Open the catalog to page 10
www.gminternational.com Intrinsically Safe Isolators > Analog Input I.S. SIL3 2-Wire HART® Transmitter Power Supply The Repeater Power Supply D5011 module is a high integrity analog input interface suitable for applications requiring SIL 3 level in safety related systems for high risk industries. It provides a fully floating dc supply for energizing conventional 2 wires 4-20 mA transmitters located in Hazardous Area, and repeats the current in floating circuit to drive a Safe Area load. The circuit allows bi-directional communication signals, for HART® devices. SIL 3 / SC 3 Input from Zone 0/Div....
Open the catalog to page 11
FUNCTION DIAGRAM Additional installation diagrams may be found in Instruction Manual. Hazardous Area Functional Safety Management Certification: GM International is certified to conform to IEC61508:2010 part 1 clauses 5-6 for safety related systems up to and included SIL3. In addition, GM International products have been granted I.S. certificates from the most credited Notified Bodies in the world. Data specified in this document are merely descriptive of the products and should be integrated with relevant technical specifications. Our products are in constant development and the information...
Open the catalog to page 12
www.gminternational.com Intrinsically Safe Isolators > Analog Input I.S. SIL3 2/4-Wire HART® Transmitter Power Supply The Repeater Power Supply D5014 module is a high integrity analog input interface suitable for applications requiring SIL 3 level in safety related systems for high risk industries. It provides a fully floating dc supply for energizing conventional 2 wires 4-20 mA, active or passive, transmitters located in Hazardous Area, and repeats the current in floating circuit to drive a Safe Area load. The module supports output current duplication and it allows bi-directional communication...
Open the catalog to page 13
FUNCTION DIAGRAM Additional installation diagrams may be found in Instruction Manual. Hazardous Area Functional Safety Management Certification: GM International is certified to conform to IEC61508:2010 part 1 clauses 5-6 for safety related systems up to and included SIL3. In addition, GM International products have been granted I.S. certificates from the most credited Notified Bodies in the world. Data specified in this document are merely descriptive of the products and should be integrated with relevant technical specifications. Our products are in constant development and the information...
Open the catalog to page 14
www.gminternational.com Intrinsically Safe Isolators > Analog Input I.S. SIL2 2/4-Wire HART® Transmitter Power Supply The Repeater Power Supply D5015 module is a high integrity analog input interface suitable for applications requiring SIL 2 level in safety related systems for high risk industries. It provides a fully floating dc supply for energizing conventional 2 wires 4-20 mA, active or passive, transmitters located in Hazardous Area, and repeats the current in floating circuit to drive a Safe Area load. The circuit allows bi-directional communication signals, for HART® devices. SIL 2 / SC...
Open the catalog to page 15All GM International S.p.A. catalogs and technical brochures
Product Overview58 Pages
X1 SERIES4 Pages

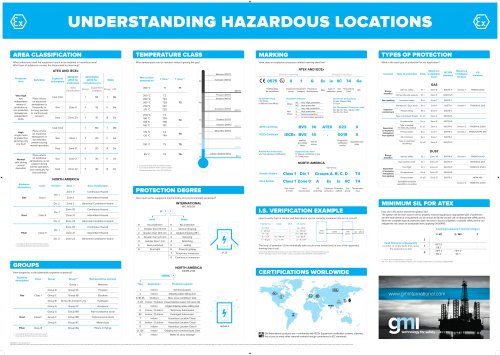

EX Poster2 Pages

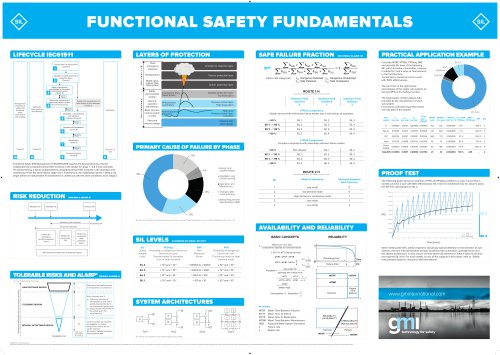

SIL Poster2 Pages
