Filter equipment Maxflow Compactfilter 503

Product catalog summary

Technical Specifications:

Filtration Performance: Up to 200 liters per minute.
Filter Porosity: Greater than 5 µm.
Dimensions:
- Tank Outside Diameter: 1575 mm
- Tank Width with Discharge Chute: 1690 mm
- Lower Edge Height of Discharge Chute: 830 mm
- Height with Closed Filter Head: 2300 mm
- Weight: 600 kg

System Description:

The Maxflow Compactsystem 1000 - 503 is designed for fine filtration of coolant oils used in metalworking processes. It features a proven automatic filter system with an integrated briquetting device, ensuring efficient filtration and waste management.

Options and Examples:

Examples include configurations with a coolant chiller system, lifting pump, and additional platform.
Available options include various filter media, a coolant chiller system, lifting pump, and additional platform.

Catalog excerpts

Filter equipment Maxflow Compactfilter 503-1

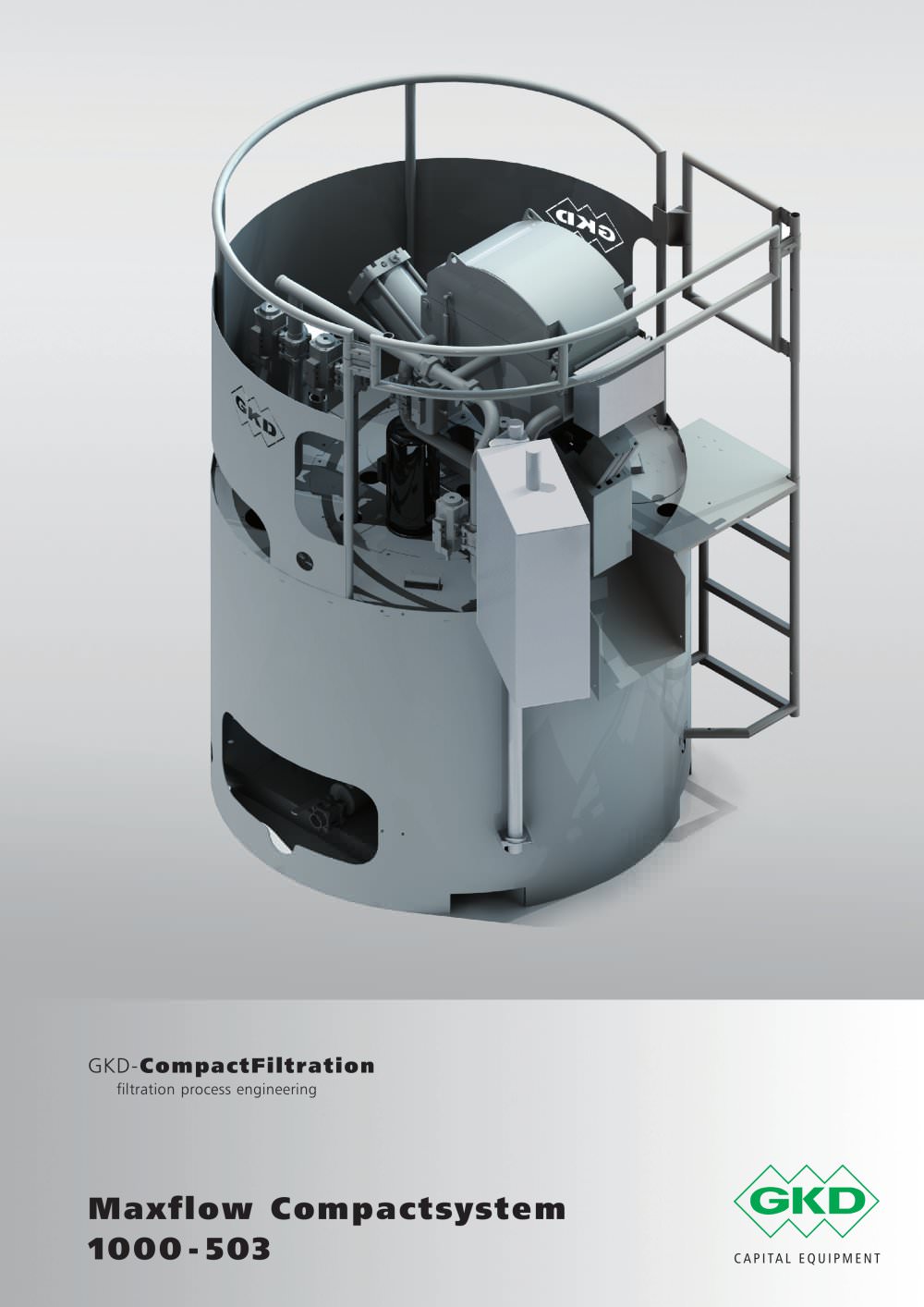

Maxflow Compactsystem 1000- 503 C A P I TAL EQUIPMENT GKD-CompactFiltration filtration process engineering

Open the catalog to page 1

Filter equipment Maxflow Compactfilter 503-2

GKD – Gebr. Kufferath AG Metallweberstr. 46 D-52353 Düren fon +49 (0) 24 21 / 803-0 fax +49 (0) 24 21 / 803 -141 e-mail: [email protected] www.gkd.de Maxflow Compactsystem 1000 - 503 Technische Daten: Filterleistung: bis 200 Liter pro Minute Filterfeinheit: > 5 ìm Abmessungen: Tank Außendurchmesser: 1575 mm Tank Breite mit Spänerutsche: 1690 mm Höhe Unterkante Spänerutsche: 830 mm Höhe mit geschlossenem Deckel: 2300 mm Gewicht: 600 kg Tanksystem 1000 Maxflow Compactfilter 503 Feinfiltration von Kühlschmierstoffen aus der Metallbearbeitung Fine filtration of coolant oils for metal working...
