AGS
AGS
The document introduces the new ABSOLUTE scale (AGS) by GIVI MISURE, designed for high-performance machines. This optical linear encoder features a glass measuring support and is part of GIVI MISURE's expanded product line.
Specifications
- Resolution and Accuracy: Offers resolutions up to 0.1 μm with an accuracy grade of ± 3 μm in the standard version and ± 1 μm in the high-accuracy version.
- Interface and Protocols: Includes a serial interface SSI-BiSS, with optional 1 Vpp analog signal. Supports SSI protocol and programmable resolutions, with high-speed serial data transfer. Compatible with Profi bus-DP, Profi net, CANopen, DeviceNet, ModBus, and DRIVE-CLiQ protocols through conversion gateways.
- Protection and Durability: Features IP 64 protection class against dust and liquids, with additional protection against polarity inversion and short circuits on output ports.
- Design and Application: Compact design suitable for limited installation spaces, particularly on CNC machines. Offers notable accuracy and signal stability even at high speeds, accelerations, and vibrations.
- Mechanical Structure: Robust and stable, with a measuring length up to 3,240 mm.
Conclusion
The AGS ABSOLUTE optical scale is a highly accurate and reliable solution for demanding applications, offering advanced features and compatibility with various industrial protocols.
Catalog excerpts
RIGA OTTICA ASSOLUTA ABSOLUTE OPTICAL SCALE The new ABSOLUTE scale for high-performance machines. La nuova riga ASSOLUTA per macchine ad elevate prestazioni. A B S O L U T E LY A C C U R AT E QUALITY AND INNOVATION SINCE 1979 Measuring and control systems
Open the catalog to page 1
GIVI MISURE’s line of optical linear encoder is now enriched with the new ABSOLUTE scale (AGS), with glass measuring support. La linea di righe ottiche GIVI MISURE si arricchisce della nuova AGS, riga ottica ASSOLUTA con supporto di misura in vetro. • Resolutions up to 0.1 μm. Accuracy grade ± 3 μm in the standard version and ± 1 μm in the high-accuracy version Risoluzioni no a 0,1 μm. Classe di accuratezza ± 3 μm nella versione standard e ± 1 μm nella versione high-accuracy • Serial interface SSI-BiSS (with or without 1 Vpp analog signal) Interfaccia seriale SSI-BiSS (con o senza segnale analogico...
Open the catalog to page 2All GIVI MISURE catalogs and technical brochures
GVS 5084 Pages

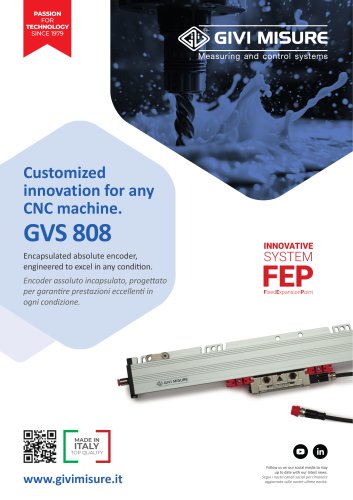

GVS 8084 Pages
