Overview: The document provides detailed specifications and features of GIMAT's horizontal ribbon mixers, designed for efficient mixing and filling processes in industrial settings. These mixers are constructed from thick carbon steel or stainless steel (AISI 304 or 316) and are available in volumes ranging from 340 to 3500 liters.

Specifications: The mixers feature a unique four-way ribbon design for rapid and homogeneous mixing. They are equipped with a direct transmission system using a gearmotor with right-angled axles and an elastic joint for torsional flexibility, ensuring high efficiency and quiet operation. The mixers can be controlled by a vector inverter for gradual startup and speed adjustment, even under full load conditions.

Design Features: The mixers include an airtight case with a high-speed shaft and pignon gear holder, supported by a bearing unit to handle radial loads. An optional hydrodynamic viscose joint can be installed for full-load startups and transmission protection. The ribbon supports use oscillating bearings and dust seals, with an automatic system to maintain optimal seal performance and reduce maintenance needs.

Additional Options: Special designs conforming to ATEX Directive 94/9/CE for explosive atmospheres (Zone 22 or 21 externally, Zone 21 or 20 internally) are available upon request. The mixers also feature hatches for cleaning and product loading, with a central discharge operated manually or pneumatically.

Technical Data: The document includes a table listing models (HMX0340 to HMX3500), their geometric and useful capacities, motor power requirements, and dimensions. Key features include ample hatches for cleaning, end support with temperature probe and rotation control, and a discharge valve with an electro-pneumatic actuator.

Engineering and Testing: The reduction unit bearing bell is tested using the Finite Element Method (FEM) to ensure durability and performance. The document highlights the importance of the elastic joint and end support on the motor side for efficient operation.

Catalog excerpts

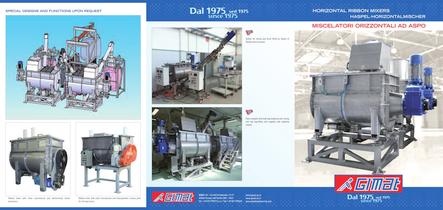

SPECIAL DESIGNS AND FUNCTIONS UPON REQUEST HORIZONTAL RIBBON MIXERS HASPEL-HORIZONTALMISCHER MISCELATORI ORIZZONTALI AD ASPO Station for mixing and drum filling by means of flexible spiral conveyor. Plant complete with bulk-bag emptying unit, mixing unit and bag-filling unit supplied with weighing system . Ribbon mixer with chain transmission and bidirectional elastic tensioners. Ribbon mixer with chain transmission and hydrodynamic viscous joint for full load starts. GIMAT srl - Via dell’Artigianato, n°1-17 40064 Ozzano dell’Emilia (BO) - ITALY Tel. + 39 051 799573 (r.a.)- Fax + 39 051 798260 [email protected] www.gimat.bo.it www.gimatengineering.com

Open the catalog to page 1

I miscelatori orizzontali ad aspo di GIMAT sono costruiti con lamiere di grosso spessore in acciaio al carbonio verniciato o in acciaio inox AISI 304 o 316 con trattamenti superficiali idonei all’impiego. Le volumetrie disponibili sono da 340 a 3500 litri utili con potenze variabili a seconda delle applicazioni. La miscelazione avviene in modo rapido e omogeneo grazie al particolare aspo a quattro vie e a quattro flussi incrociati. La trasmissione diretta con motoriduttore ad assi ortogonali e ruote coniche integrata con giunto elastico a flessibilità torsionale garantisce un alto rendimento...
