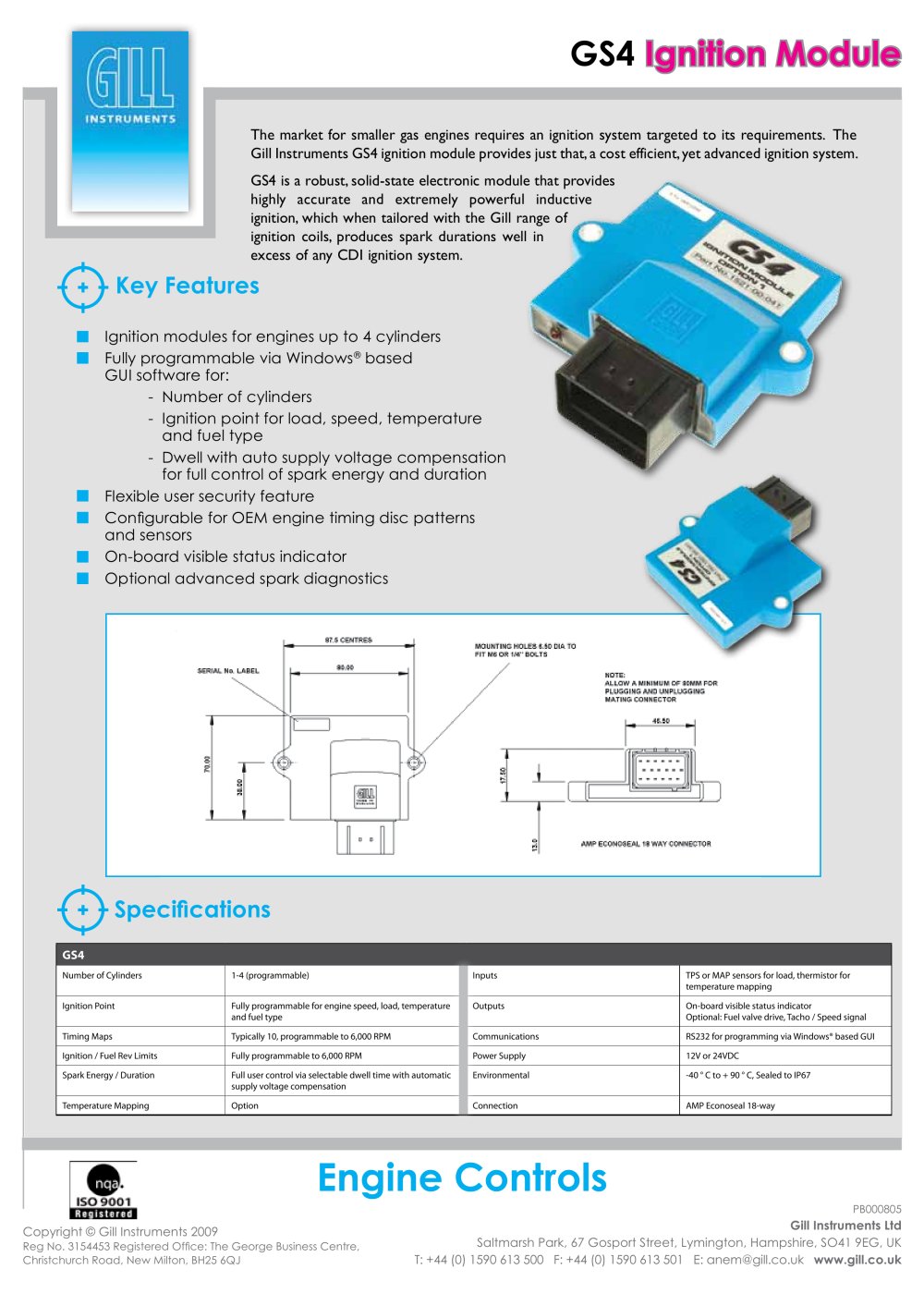

GS4 Ignition Module The market for smaller gas engines requires an ignition system targeted to its requirements. The Gill Instruments GS4 ignition module provides just that, a cost efficient, yet advanced ignition system. GS4 is a robust, solid-state electronic module that provides highly accurate and extremely powerful inductive ignition, which when tailored with the Gill range of ignition coils, produces spark durations well in excess of any CDI ignition system. Key Features Ignition modules for engines up to 4 cylinders Fully programmable via Windows ® based GUI software for: - Number of cylinders - Ignition point for load, speed, temperature and fuel type - Dwell with auto supply voltage compensation for full control of spark energy and duration Flexible user security feature Configurable for OEM engine timing disc patterns and sensors On-board visible status indicator Optional advanced spark diagnostics Specifications GS4 Number of Cylinders TPS or MAP sensors for load, thermistor for temperature mapping Ignition Point Fully programmable for engine speed, load, temperature and fuel type On-board visible status indicator Optional: Fuel valve drive, Tacho / Speed signal Timing Maps RS232 for programming via Windows® based GUI Ignition / Fuel Rev Limits Power Supply Spark Energy / Duration Full user control via selectable dwell time with automatic supply voltage compensation Temperature Mapping Engine Controls Copyright © Gill Instruments 2009 Reg No. 3154453 Registered Office: The George Business Centre, Christchurch Road, New Milton, BH25 6QJ Gill Instruments Ltd Saltmarsh Park, 67 Gosport Street, Lymington, Hampshire, SO41 9EG, UK T: +44 (0) 1590 613 500 F: +44 (0) 1590 613 501 E: anem@gill.co.uk www.gill.co.uk
