EC12 - control module

Product catalog summary

Overview: The EC12 Engine Control Module is a sophisticated engine management solution designed to provide advanced inductive ignition and spark diagnostics. It supports up to 12 cylinders, with the possibility of extending to 24 cylinders by linking two units. The module is fully programmable and offers robust construction, making it maintenance-free and suitable for various engine types, including CHP, generator set, and compressor engines.

Key Features:

Inductive Ignition: Provides highly accurate and powerful ignition, surpassing CDI systems in spark duration.
Programmability: Fully programmable via a Windows-based GUI, allowing customization for engine speed, load, temperature, and fuel type.
Diagnostics: Advanced spark diagnostics for real-time monitoring of spark plug voltage and duration.
Communication: CANBUS communication for integration with other engine control modules, enabling air/fuel and knock control.
Environmental Resilience: Operates in temperatures from -40°C to +90°C and is sealed to IP67 standards.

Specifications:

Number of Cylinders: Supports up to 12 cylinders, extendable to 24.
Ignition Point: Fully programmable for various engine parameters.
Timing Maps: Ten maps programmable up to 4,000 RPM.
Inputs and Outputs: Includes TPS or MAP sensors, fuel valve drive, and visible status indicators.
Power Supply: Automatically senses 12V or 24V DC.

Benefits: The EC12 module enhances engine efficiency, reduces emissions, lowers maintenance needs, and decreases operating costs. Its advanced diagnostics and programmability significantly reduce engine setup and development times.

Catalog excerpts

ADVANCED INDUCTIVE IGNITIONMAINTENANCE FREE ROBUST CONSTRUCTION FULLY PROGRAMMABLE ADVANCED DIAGNOSTICS UP TO 12 CYLINDERS CANBUS COMMUNICATIONSPARK DIAGNOSTICSCHP ENGINESGENERATOR SET ENGINES COMPRESSOR ENGINES > ENGINE CONTROLS

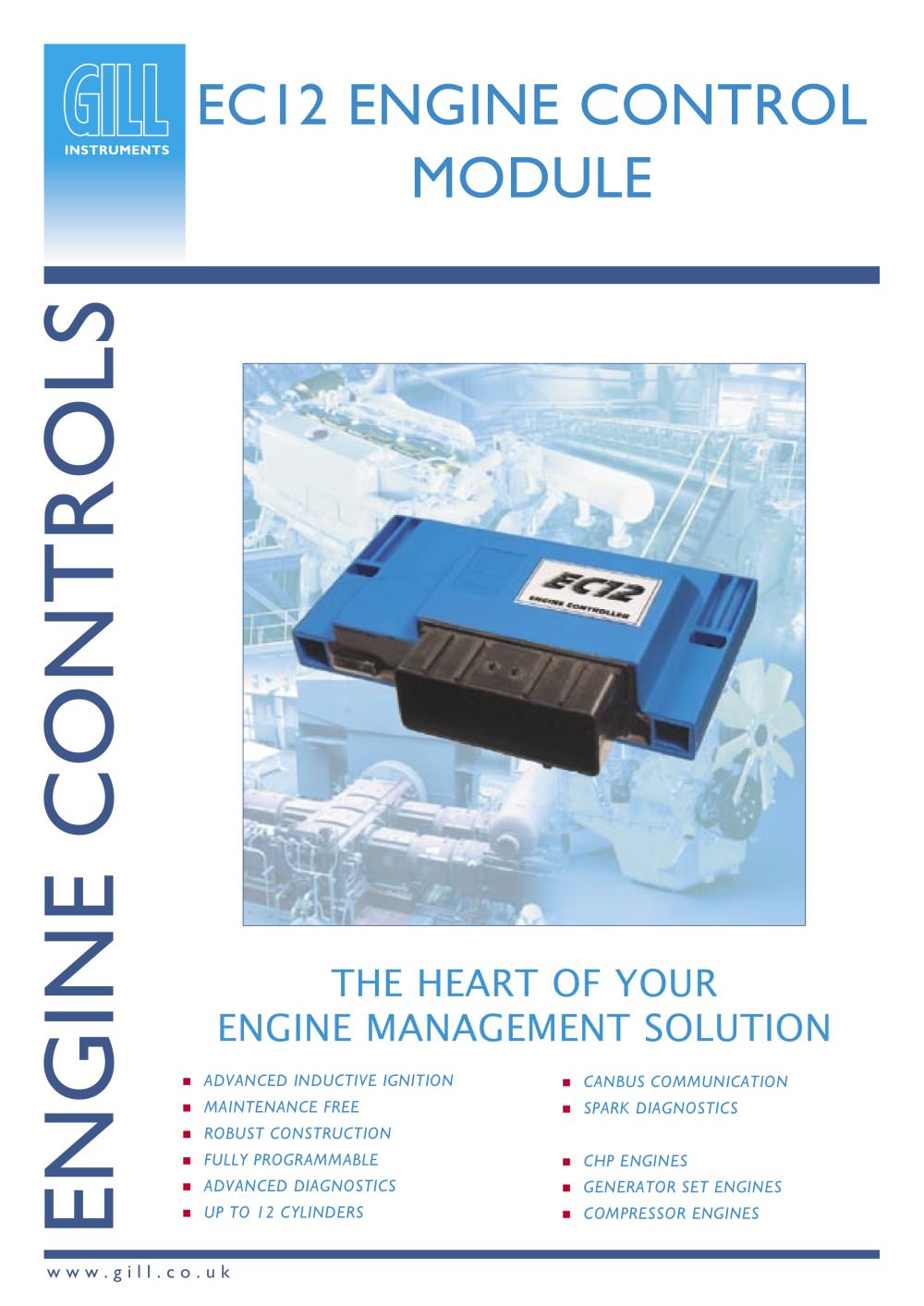

Open the catalog to page 1

The hub of your engine control system, EC12 combines state of the art inductive ignition with advanced spark diagnostics in addition to CANBUS communications to provide full access to air/fuel and knock control.EC12 is a robust, solid-state electronic module that provides highly accurate and extremely powerful inductive ignition, which when tailored with the Gill range of ignition coils, produces spark durations well in excess of any CDI ignition system.This power and accuracy enable the EC12 to control normally aspirated or turbo-charged engines, running on natural gas, biogas, LPG and CNG in...
