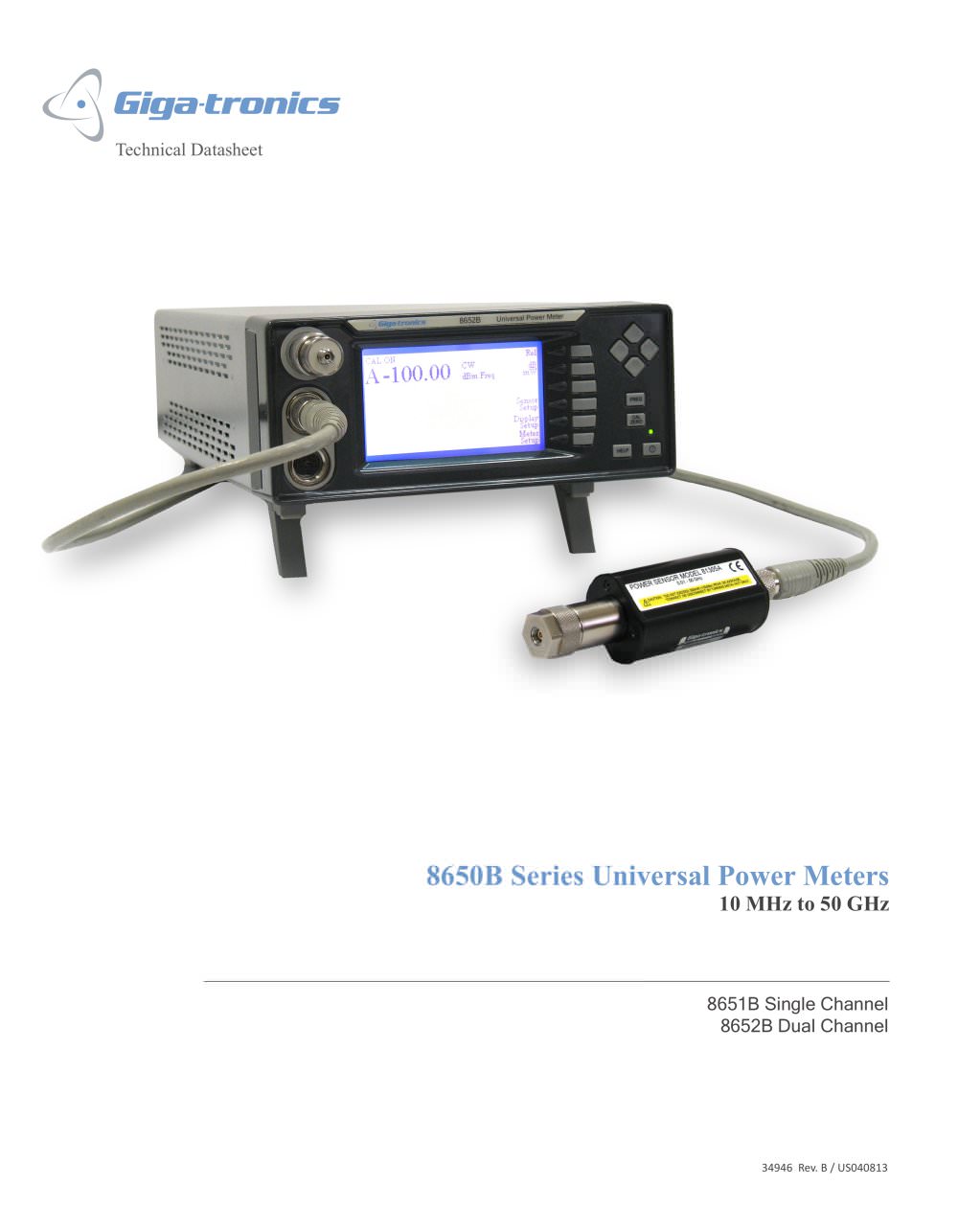

Technical Datasheet 8650B Series Universal Power Meters 8651B Single Channel 8652B Dual Channel

8650B Series Universal Power Meters The Giga-tronics 8650B Series Universal Power Meters have the extensive measurement capabilities and unique features required to test today’s sophisticated communications systems faster and more accurately. TDMA The 8650B can automatically measure the average power of pulse modulated signals or pulse signals that are amplitude modulated during the pulse ‘on’ period - such as TDMA signals. Using the exclusive Burst Average Power mode (BAP), the average power reading in the pulse burst is automatically measured between the 3 dB points. Therefore, the duty...

Universal Power Meter Giga-tronics 8650B Features and Specifications GPIB CW Measurement Speed (readings per second) Fast Buffered Mode_> 26,000 GPIB Modulated Measurement Speed (readings per second) Ethernet CW Measurement Speed (readings per second) > 300 Ethernet Modulated Measurement Speed (readings per second) > 150 Asynchronous Sample Rate 2.5-5 MHz Maximum Diode Sensor Video Bandwidth 20 MHz Maximum Instrument Video Bandwidth 10 MHz Maximum Single Sensor CW Dynamic Range 90 dB1 Maximum Single Sensor Modulation Dynamic Range Maximum Peak Power Sensor Rise Time 100 ns Automatic Time...

8650B Series Universal Power Meter The Features to do the Job - Faster, Easier and More Accurately CREST FACTOR The crest factor capability of the 8650B displays the ratio of the maximum peak power (peak hold) measurement to the average power measurement (in dB) from the time the feature is enabled until it is reset. The crest factor capability operates in the same manner as the peak hold capability: the display value holds at the maximum until it is reset. INCREDIBLE SPEED AND STATISTICAL ANALYSIS No other meter delivers the measurement speed available from the 8650B. Achieve over 1,750...

8650B Series Universal Power Meter Accuracy and Built-In Calibration ACCURACY OVER A 90 dB Range Giga-tronics has solved the problem that limited the use of diode sensors to below -20 dBm – the ‘square law’ region – by utilizing a patented built-in power sweep calibration system. The power sweep calibrator uses a 50 MHz amplitude controlled oscillator to step from -30 to +20 dBm in 1 dB increments. Each step is set using an internal thermistor – the standard for accuracy and traceability. Giga-tronics gives you thermistor accuracy plus diode speed for measuring signals over a full 90 dB...

8650B Series Universal Power Meter The Secret is the Sensors Giga-tronics power meter architecture provides for a broad choice of functional sensors. Just by changing a sensor, you can measure CW power, pulse power, and the peak and average power of TDMA, GSM and CDMA signals faster, more accurately, and over a wider Range. THE FASTEST CW MEASUREMENTS Giga-tronics 80300A and 81300A Series CW Power Sensors let you measure CW power from 10 MHz to 50 GHz at more than 1,750 readings per second over GPIB. Measure up to 90 dB2 with a single sensor, and select from a variety of high power sensors,...

8650B Series Universal Power Meter The Secret is the Sensors Sensor Measurement Capabilities Sensor Model Signal Type Amplitude Modulation Rate, Power Range Two-Tone Maximum Separation Between Carriers Pulse Modulation Burst with Modulation fm ≤ 40 kHz, > 200 µs Pulse Width; -40 to +20 dBm fm > 40 kHz, > 200 µs Pulse Width; -40 to -20 dBm fm ≤ 1.5 MHz, > 300 µs Pulse Width; -40 to +20 dBm fm > 1.5 MHz, > 300 µs Pulse Width; -40 to -20 dBm fm ≤ 10 MHz, > 100 µs Pulse Width; -30 to +20 dBm fm > 10 MHz, > 100 µs Pulse Width; -30 to -20 dBm

8650B Series Universal Power Meter by 2.15" high Liquid Crystal Display 0.38 mm pitch, and Cold Cathode Fluorescent Lamp (CCFL) back light for maximum detail and optimum Each sensor uses an EEPROM to store values ofcal factor. Entering the measurement frequency automatically calls up the correct cal factor. If the measurement frequency is between cal factor points, the meter automatically enters an interpolated value. Sensor Freq Compensatior The large display lets you see more information. And the display works in tandem with the meter controls to let you view menu selections and see your...

8650B Series Universal Power Meter The Cumulative Distribution Function (CDF) shows the percentage of time a signal is below a selected power level. The x axis displays the amount of power at the selected level, measured in dBm, and the y axis displays the percentage of time the power is at or below the power specified Cumulative Distribution Function (CCDF) reorients the CDF curve in accordance with the equation CCDF = 1-CDF for more accustomed viewing of a descending slope. Moving a cursor along the slope of the curve displays the power level in dBm and the corresponding percentage of...

8650B Series Universal Power Meter Giga-tronics CW Power Sensor Selection Guide Frequency Range / Power Range Maximum Power Power Linearity 4 (Frequency > 8 GHz) Low VSWR CW Power Sensors 80310A The K connector is electrically and mechanically compatible with the APC-3.5 and SMA connectors. Note: Use a Type N(m) to SMA(f) adapter (part no. 29835) for calibration of power sensors with Type K(m) connectors. 3 Use a Type N(m) to 2.4mm(f) adapter (part no. JRXC-01400) for calibration of power sensors with 2.4mm(m) connectors. For frequencies above 8 GHz add power linearity to system linearity....

8650B Series Universal Power Meter 9 Power coefficient equals < 0.01 dB/Watt (Average) Power coefficient equals < 0.015 dB/Watt (Average) Peak operating Range above CW maximum Range is limited to < 10% duty cycle

8650B Series Universal Power Meter Giga-tronics ModulationPower Sensor Selection Guide (fm ≤ 40 kHz) Frequency Range / Power Range Maximum Power Power Linearity 6 (Frequency > 8 GHz) 200 mW Modulation Power Sensors 80401A Power Linearity 6 (Frequency > 8 GHz) Low VSWR Modulation Power Sensors 80410A 1 W Modulation Power Sensors 80420A 5 W Modulation Power Sensors 7 80421A 25 W Modulation Power Sensors 8 80422A 50 W Modulation Power Sensors 8 80425A Giga-tronics ModulationPower Sensor Selection Guide (fm ≤ 1.5 MHz) Frequency Range / Power Range Maximum Power 200 mW Modulation Power Sensors...
