Motor control overview

Motor control overview

Motor control overview

Product catalog summary
Overview and Approvals
This section provides an overview of motor control components, including contactors and thermal overload relays, which are manufactured in accordance with IEC 60947-4-1 standards. Approvals from various organizations such as R.I.N.A., Lloyd's, DNV, UL, cULus, CSA, and BV are listed for different models.

Contactors
Contactors are available in various types and ratings, with both 3P and 4P versions. The document lists specific models like GHMC, GHMD, and GH15 series, detailing their performance ratings and available versions.

Mini-Contactors
Mini-contactors are smaller versions of standard contactors, designed for specific applications where space is limited. They maintain similar functionality and standards compliance.

Thermal Overload Relays
Thermal overload relays are used to protect motors from overheating. The document specifies different models such as RTD23E, RTD65, and RTD180, along with their setting ranges in amperes.

Manual Motor Starters
Manual motor starters like GHA25 and GHA32 are detailed, with ratings from 0.1 to 32 A. They provide functions for switching on/off and protection against short circuits, overloads, and phase failures.

Auxiliary Contacts and Accessories
Auxiliary contacts are available for front and side mounting, with various configurations like 1NO+1NC and 2NO+2NC. Accessories include mechanical interlocks and three-pole terminal shrouds.

Overall Dimensions
This section provides the dimensions for different motor control components, ensuring compatibility and proper installation in various setups.

Conformity to Specifications
The document emphasizes the conformity of contactors and thermal overload relays to international standards, ensuring reliability and safety in their application.
See more

Catalog excerpts

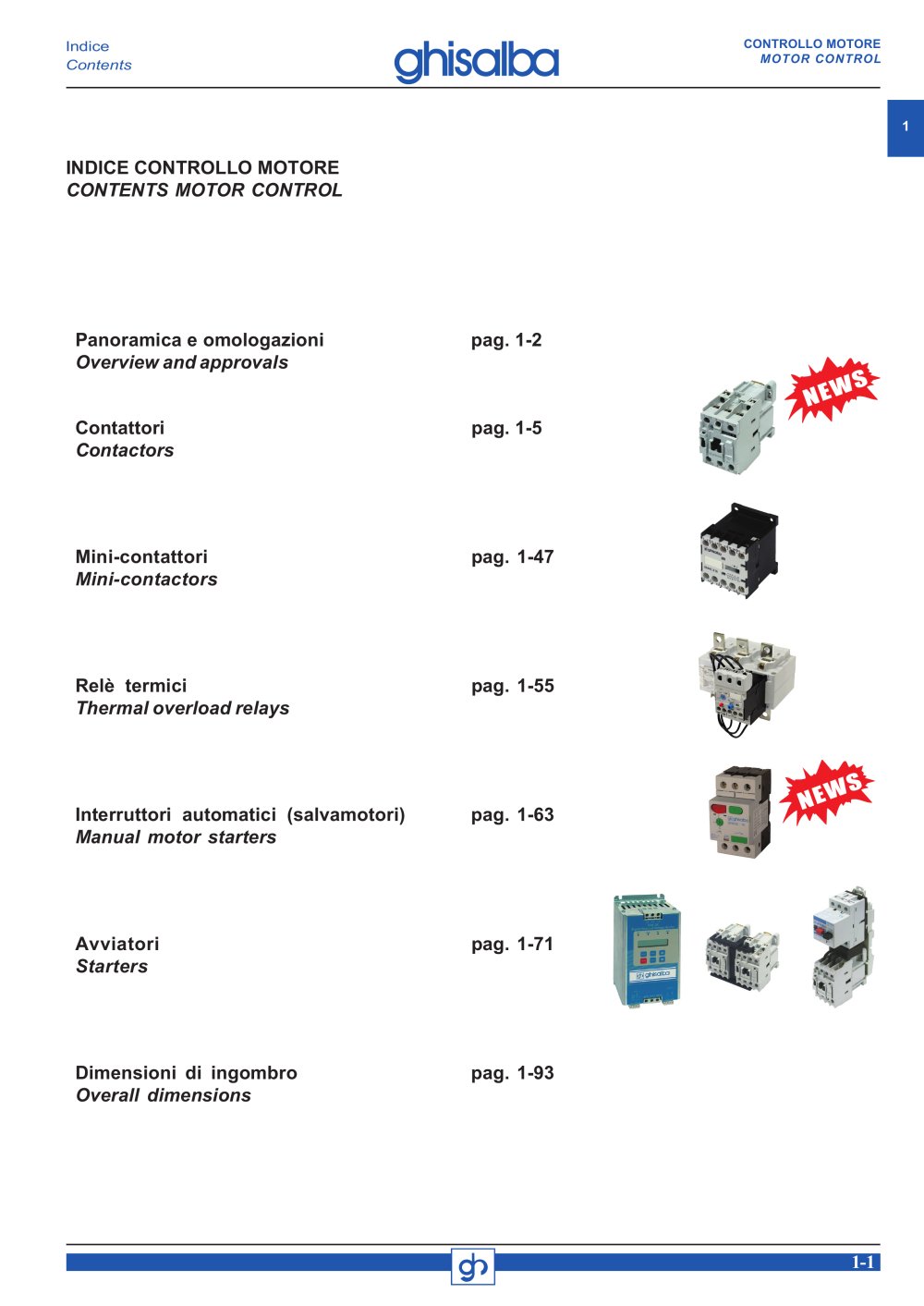

Motor control overview-1

111---1111-11 CONTROLLO MOTORE MOTOR CONTROL 1 Indice Contents Panoramica e omologazioni pag. 1-2 Overview and approvals Contattori pag. 1-5 Contactors Mini-contattori pag. 1-47 Mini-contactors Relè termici pag. 1-55 Thermal overload relays Interruttori automatici (salvamotori) pag. 1-63 Manual motor starters Avviatori pag. 1-71 Starters Dimensioni di ingombro pag. 1-93 Overall dimensions INDICE CONTROLLO MOTORE CONTENTS MOTOR CONTROL NNEWS NNEWSNNEWS

 Open the catalog to page 1
Motor control overview-4

CONTROLLO MOTORE MOTOR CONTROL 1-4 1 CONFORMITY TO SPECIFICATIONS Contactors and thermal overload relays are manufactured in accordance with the following standards: IEC 60947-4-1 International Electrotechnical Commission - International CEIEN60947-4-1 Comitato Elettrotecnico Italiano - Italy APPROVALS CONFORMITA' ALLE NORME I contattori e i relè termici sono costruiti in conformità alle seguenti normative: IEC 60947-4-1 International Electrotechnical Commission - Internazionale CEI EN60947-4-1 Comitato Elettrotecnico Italiano - Italia OMOLOGAZIONI (1) Valido esclusivamente accoppiato al minicontattore...

 Open the catalog to page 4
