Product catalog summary

General Information
The CNP series AC/DC converters are digitally controlled devices designed for powering direct current motors, offering both speed and torque control. They are available in two configurations: bi-directional (four quadrants) for the CNP R and unidirectional (two quadrants) for the CNP U. The converters support a current range from 10A to 3500A and operate with a three-phase power supply voltage from 200Vac to 690Vac.

Simplicity of Installation and Maintenance
The converters feature automatic cycle direction recognition, eliminating the need for sequential power phase connection. A control/programming keyboard facilitates quick calibration and parameter setting. An EPROM on the control card allows for parameter backup and restoration to factory defaults, simplifying maintenance.

Safety and Protections
The CNP series includes programmable electrical protections to ensure reliability. The "automatic switching to armature feedback" function maintains speed control in case of dynamo/encoder failure, preventing dangerous motor racing.

Technology and Performance
With innovative microprocessor technology, the CNP converters offer high performance and easy programming. Predictive control and high processing power provide exceptional speed and precision.

Technical Data
The converters are robustly designed with a metal structure ensuring EMC conformity and feature IP20 protection accessories. They are suitable for severe environmental conditions and include a backlit LCD display for motor control and speed regulation. The interface supports various analog and digital inputs/outputs, making them suitable for complex automation systems.

Communication
Optional cards enable communication with major control systems via RS485 and RS232 serial ports using MODBUS RTU protocol and PROFIBUS DP serial protocol.

Electrical Specifications
The converters support a range of input and output voltages and include protections against short circuits, overcurrent, and overvoltage for safe operation.

Environmental Specifications

Operating Temperature: 0°C to 40°C, with a 2% performance downgrade for each degree above 40°C, up to 50°C.
Storage Temperature: -25°C to 65°C.
Ambient Humidity: 20% to 90% without condensation or water spray.
Maximum Altitude: 1000 meters above sea level, with a 1% performance downgrade for every 100 meters above 1000 meters.

Communication Specifications

RS 232/485: Optional multidrop, MODBUS RTU protocol, maximum transmission speed of 115.2 Kbps, no parity.
Profibus DP: Optional, maximum transmission speed of 12 Mbps.
Usage: Connection to terminals, microprocessor cards, PCs, PLCs.

AC/DC Converters

Overload Capacity: 150% of nominal current for 60 seconds.
Power Supply: Three-phase input power supply ranging from 200-500 Vac.
Control Power Supply: 200-240 Vac single phase or 380-500 Vac single phase or 24 Vcc.

Technical Data

Nominal Current: Various values depending on the model, ranging from 10A to 3000A.
Power Losses: Varying from 30W to 10500W depending on the model.
Dimensions: Control unit dimensions are 214x244x440 mm, and power unit dimensions vary by model.

Catalog excerpts

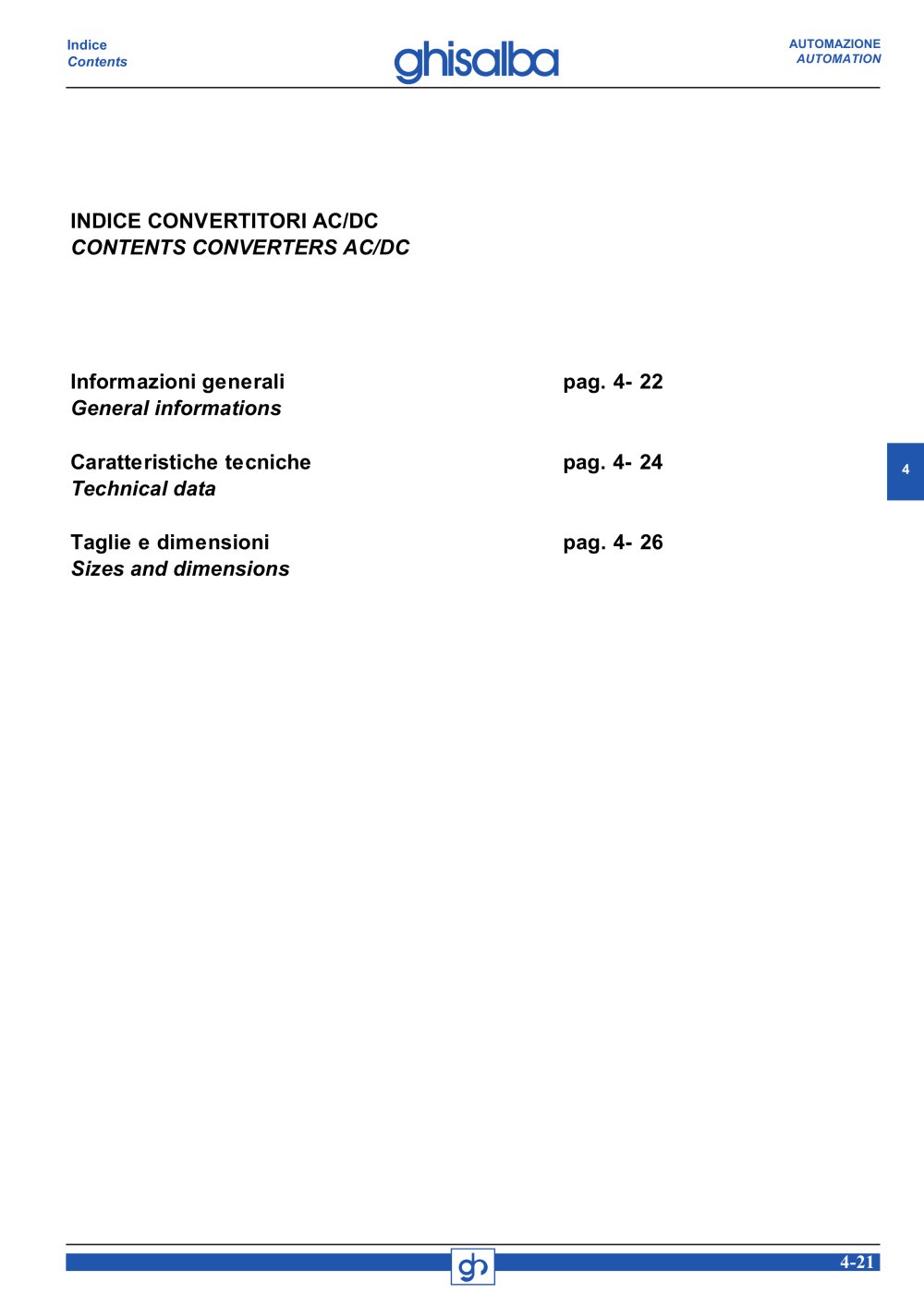

111-4--222-2121111 AUTOMAZIONE AUTOMATION 4 Indice Contents INDICE CONVERTITORI AC/DC CONTENTS CONVERTERS AC/DC Informazioni generali pag. 4- 22 General informations Caratteristiche tecniche pag. 4- 24 Technical data Taglie e dimensioni pag. 4- 26 Sizes and dimensions

Open the catalog to page 1

CONVERTITORI AC/DC CONVERTERS AC/DC 4-22 4 Semplicità di messa in servizio e anutenzione I convertitori CNP possono essere alimentati con tensioni diverse tra controllo e potenza. Grazie al “riconoscimento automatico del senso ciclico” non è più necessario prestare attenzione al collegamento sequenziale delle fasi d’alimentazione elettrica. Grazie alla tastiera di controllo/programmazione è possibile in pochi minuti avviare le procedure di taratura automatica ed impostare i parametri di funzionamento. La presenza dell’EPROM sulla scheda di controllo rende la manutenzione del programma semplice...

Open the catalog to page 2

111-4--222-2323333 AUTOMAZIONE AUTOMATION 4 Caratteristiche tecniche Technical data Robustezza e design I convertitori della serie CNP sono progettati con un design moderno e funzionale. La struttura completamente metallica, garantisce una robustezza e una conformità EMC elevata, inoltre gli accessori per la protezione in grado IP20 e per il montaggio in foro passante (separazione dei canali di ventilazione tra controllo e potenza) permettono l’applicazione dei convertitori anche nelle più severe condizioni ambientali. Strength and design The converters of the CNP series have been developed with...

Open the catalog to page 3

CONVERTITORI AC/DC CONVERTERS AC/DC 4-24 4 Caratteristiche tecniche Tecnical data CARATTERISTICHE CONVERTITORE CONVERTER SPECIFICATIONS TIPO DI CONTROLLO CNPU convertitore full-digital trifase totalcontrollato, unidirezionale rigenerativo, 2 quadranti, eccitazione controllata. CNPR convertitore full-digital trifase totalcontrollato, bidirezionale rigenerativo, 4 quadranti, eccitazione controllata. ISOLAMENTO ELETTRICO Potenza e controllo sono isolati elettricamente. RAFFREDDAMENTO Naturale fino a CNP.70, con ventilatore autoalimentato fino a CNP Gr.2, con ventilatore alimentato a 200 ÷ 240Vac...

Open the catalog to page 4

111-4--222-2525555 AUTOMAZIONE AUTOMATION 4 CARATTERISTICHE ELETTRICHE ELECTRICAL SPECIFICATIONS INGRESSO TENSIONE COMANDO 200 ÷ 240 Vac monofase + 10% -20% 380 ÷ 500 Vac monofase + 10% -20% 24 Vcc +15% -10% livellata TENSIONE POTENZA 10 ÷ 440 Vac max trifase +10% 10 ÷ 500 Vac max trifase +10% 10 ÷ 600 Vac max trifase +10% 10 ÷ 690 Vac max trifase +10% TENSIONE CAMPO 30 ÷ 240 Vac max monofase +10% 300 ÷ 500 Vac max monofase +10% FREQUENZA 50 ÷ 60 Hz +/-10% INPUT CONTROL VOLTAGE 200 ÷ 240 Vac single phase + 10% -20% 380 ÷ 500 Vac single phase + 10% -20% 24 Vcc +15% -10% levelled POWER VOLTAGE...

Open the catalog to page 5
