Taking a bite out of plastics GETECHA central granulatorsRS 2400-RS 30000
1 / 2 PagesView full catalog
Taking a bite out of plastics GETECHA central granulatorsRS 2400-RS 30000
Product catalog summary
Overview: This document provides technical specifications and features of GETECHA's central granulators, specifically the RS 2400 and RS 30000 series. These granulators are designed for efficient plastic processing with a focus on easy maintenance, reliability, and high productivity.
Key Features:
- Fast, Economical Cleaning: The granulators feature an easy-to-open hopper and grinding chamber, quick-release locking devices, and tool-free screen removal, ensuring all components are easily accessible.
- Individually Usable: Various rotor variants and wear-protection packages are available, along with an optical display of operational status and a compact, modular design.
- Reliable Operation: Features include an external rotor bearing with a high safety factor, a continuous cutting circle for consistent granulate quality, and a segmented rotor design for optimal cutting force distribution.
- High Productivity: The granulators support continuous throughputs of up to approximately 500 kg/h, with pre-adjustable blades and easy maintenance.
Technical Specifications:
- RS 2400 Series: Includes models RS 2402, RS 2404, and RS 2406 with motor power ranging from 4.0 kW to 7.5 kW, and throughput between 60 – 220 kg/h depending on the model.
- RS 30000 Series: Includes models RS 30040, RS 30060, and RS 30090 with motor power ranging from 11 kW to 22 kW, and throughput between 200 – 540 kg/h depending on the model.
- All models have a standard screen size of 8 mm, round, and require an electrical connection of 3 x 400 V + N, 50 Hz.
Disclaimer: GETECHA reserves the right to change product specifications without prior notice and assumes no liability for the completeness and correctness of the information provided.
See more
Catalog excerpts

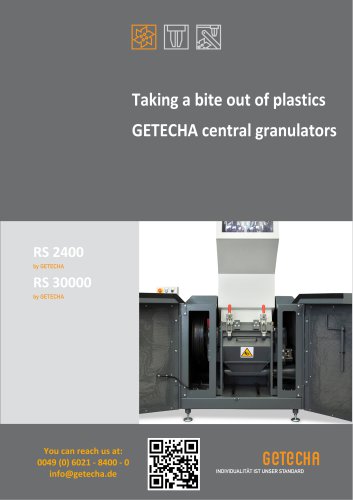

Taking a bite out of plastics GETECHA central granulators
Open the catalog to page 1
Fast, economical cleaning * Easy-to-open hopper and grinding chamber * Quick-release locking devices * All components easily accessible * Tool-free screen removal * Smooth surfaces, machined on all sides Individually useable * Various rotor variants and wear-protection packages available * Optical display of operational status * Compact, modular design * Additional equipment for virtually all types of applications Reliable in operation * External rotor bearing with high safety factor * Continuous cutting circle guarantees consistently good granulate quality * Optimal distribution of cutting forces...
Open the catalog to page 2All GETECHA catalogs and technical brochures
Archived catalogs

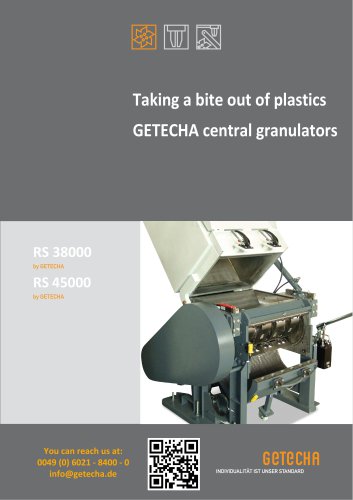

RS 38000-E RS 45000-E2 Pages
RS 2400-E RS 30000-E2 Pages
