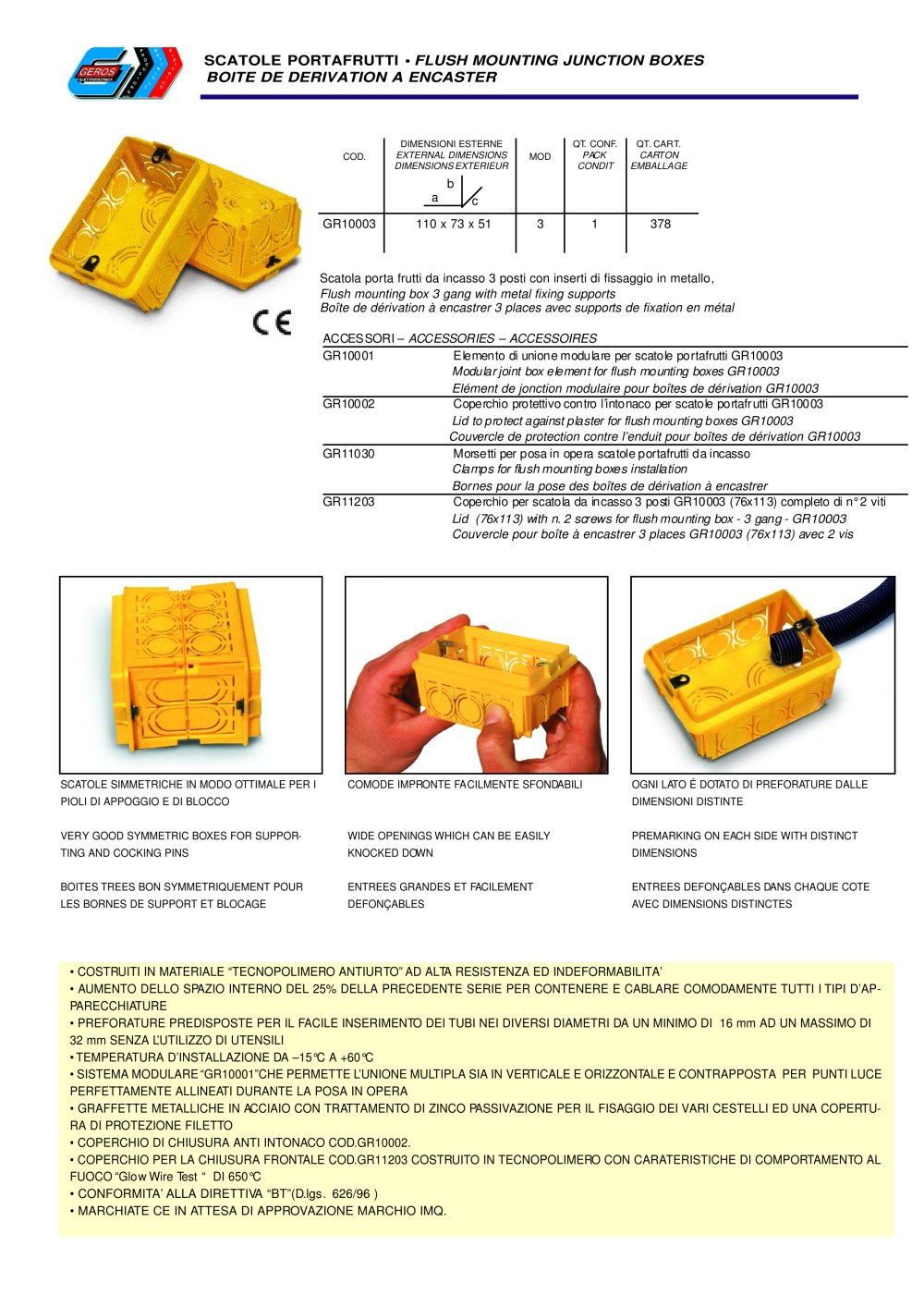

F LUSH MOUNTING JUNCTION BOXES
1 / 3 PagesView full catalog
F LUSH MOUNTING JUNCTION BOXES
Product catalog summary
Specifications:
- Constructed from high-resistance, shockproof technopolymer material.
- 25% increase in internal space compared to the previous series for easier cabling of all types of equipment.
- Pre-marked perforations for easy insertion of tubes with diameters ranging from 16 mm to 32 mm without tools.
- Installation temperature range from -15°C to +60°C.
- Modular system "GR10001" allows multiple vertical and horizontal combinations for perfect alignment during installation.
- Steel metal clips with zinc passivation treatment for securing various baskets and thread protection cover.
- Anti-plaster closing lid (Code GR10002).
- Front closing lid (Code GR11203) made from technopolymer, resistant to heat up to 650°C (Glow Wire Test).
- Conforms to the "BT" directive (D.lgs. 626/96).
- CE marked, awaiting IMQ mark approval.
- Flush mounting junction boxes available in various module configurations (3, 4, 5 modules).
- Protective lids and modular joint elements available for different configurations.
- External dimensions for various models provided, e.g., 110 x 73 x 51 mm for certain models.
