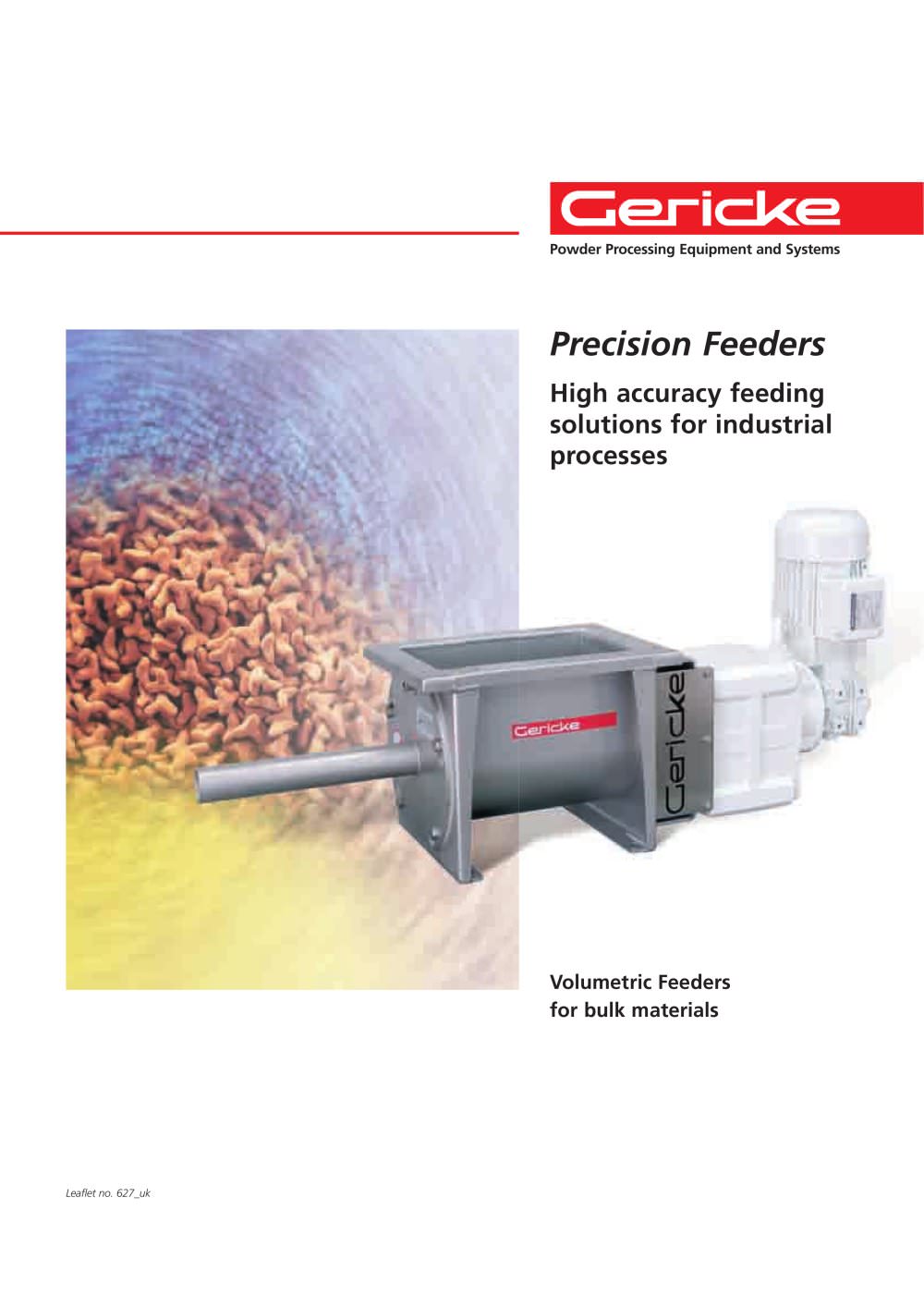

Catalog excerpts
Proven designs with thousands of running applications. > ericke volumetric feeders are designed for throughputs from 0.05 to 50,000 litres per hour for most dry solids and liquid applications. Gericke֒s range of feeders are based upon a robust modular design which are used in almost all processing applications including: - Chemical- Foods - Pharmaceutical - Construction Minerals - Plastics - Detergents > ericke offer cost effective feeding solutions for most powders, granules, fibres. flavours, pigments and liquids. Added Benefit: > GLD 87 VR; Compact feeder suitable for a wide range of...
Open the catalog to page 2The feed rate is measured by volume against time. The feedrate or batch weight is regu- lated by the process controller. > ccurate metering of bulk solids is achieved using a spiral helix, rotary valve, rotating agitator, vibrating tray or cylindrical stator. Even in the volumetric mode, the metering rate remains constant under the condition of a repeatable fill level within of the selected feeding tool and an even bulk density of the powder. A reliable volumetric device is essential for a high accuracy gravi- metric weigh feeder. > Batch feeding sing a gravimetric feeder with load cells, a...
Open the catalog to page 3Universal Feeder for highest accuracy, homogeneity and distribution of bulk materialsApplication: Advantages: Capacity range*: Medium to high feed rates, very difficult materials, highest feeding accuracy batch weighing & feeding station (GAC 233F) Feeding tool and homogeniser are concentrically aligned with large product entry suitable for difficult products 1,327.000 l/h > Type: GAC 207, GAC 232; GAC 233 F (with separate helix for coarse and trickle feeding) GPD 100GLD 87GDU 451GAC 207 Universal feeder, minimal product retention, used for poor flowing materialsApplication: Advantages:...
Open the catalog to page 4Discharge and feeding device for very poor flowing products. A rotating paddle sweeps the product towards the outlet valves. An adjustable valve regulates the feed rateApplication: Discharge from silos or hoppers, refilling loss-in-weight feeders, component feeding Advantages: Capacity range*: > Discharge without segregation, feed-distribution (1 Җ 4 outlets) and shut off valve combined into one device 0,240.000 l/h > Type: RA 500, RA 800, RA 1200, RAS (RAS Type for over/under pressures) > Vibro feederRA with 1֖4 outletsKAD discharge and feeding device Discharge and feeding deviceAn...
Open the catalog to page 5(salt, corn, sugar) - flushing (carbonates, fly ash, gypsum) - fluidisable (cocoa) - cohesive (Ti0 - Mounting (supported or hinged) - Number of feeders - Headroom - Feed distance - Variable pitch- Full flight screw - Vibro feeder- Extended feed tool- Fluidisation - Rotating bin discharger - Capacity - Operation mode (batch/continuous) - Pressure rating - Accuracy - Level of automation- free flowing > 2 , stearates) - adhesive (carbon black, pigments) - abrasive (quartz sand, silicon carbide) - compressible (chalk) - fragile (flakes, instant coffee) > - Round spiral- Square helix - Helix...
Open the catalog to page 6Gericke feeders are designed using a modular system customised to the specific require- ments of the appli- cation. The flexibil- ity of the Gericke equipment range offers simplified system design and greater added value. Special designs for agitators and homogenisers Surface finish and coatings; EGPDFE, Bead blast, electro- polished Variable feed tool lengths Shaft seals: stuffing box, PTFE lip seals, air purge glands AR outlet for vertical discharge > Type AR vertical outlet connection ARFE outlet, flanged with end bearing ARFG outlet with GranuflowӔ flow control AGP shut off valve with...
Open the catalog to page 7Activated Charcoal 0.21 Acrylic Resin (Fibres) 0.14 Acrylic Resins (Granulated) 0.61 Additives 0.20.4 Adipic Acid 0.62 Aerosil 0.046 Aluminium Chloride 0.59 Aluminium Flakes 1.30 Aluminium Fluoride 1.22 Aluminium Oxide 0.90 Aluminium Powder 1.30 Aluminium Silicate 0.54 Aluminium Sulphate 0.90 Ammonium Nitrate 0.62 Ammonium Phosphate 0.83 Antimony Oxide 0.69 Apple Pectin 0.51 Ascorbic Acid 0.55 Nuts 0.41 Nylon (Fibres) 0.16 Nylon (Flakes) 0.52 Nylon (Granules) 0.57 Nylon (Powder) 0.63 Oat Cream Powder 0.57 Oat Flakes 0.45 Oat Flour 0.39 Onion (Chopped) 0.24 Onion(Powder) 0.41 Ores 1.4֖2.6...
