Batch Mixing

Batch Mixing
2Pages

Catalog excerpts

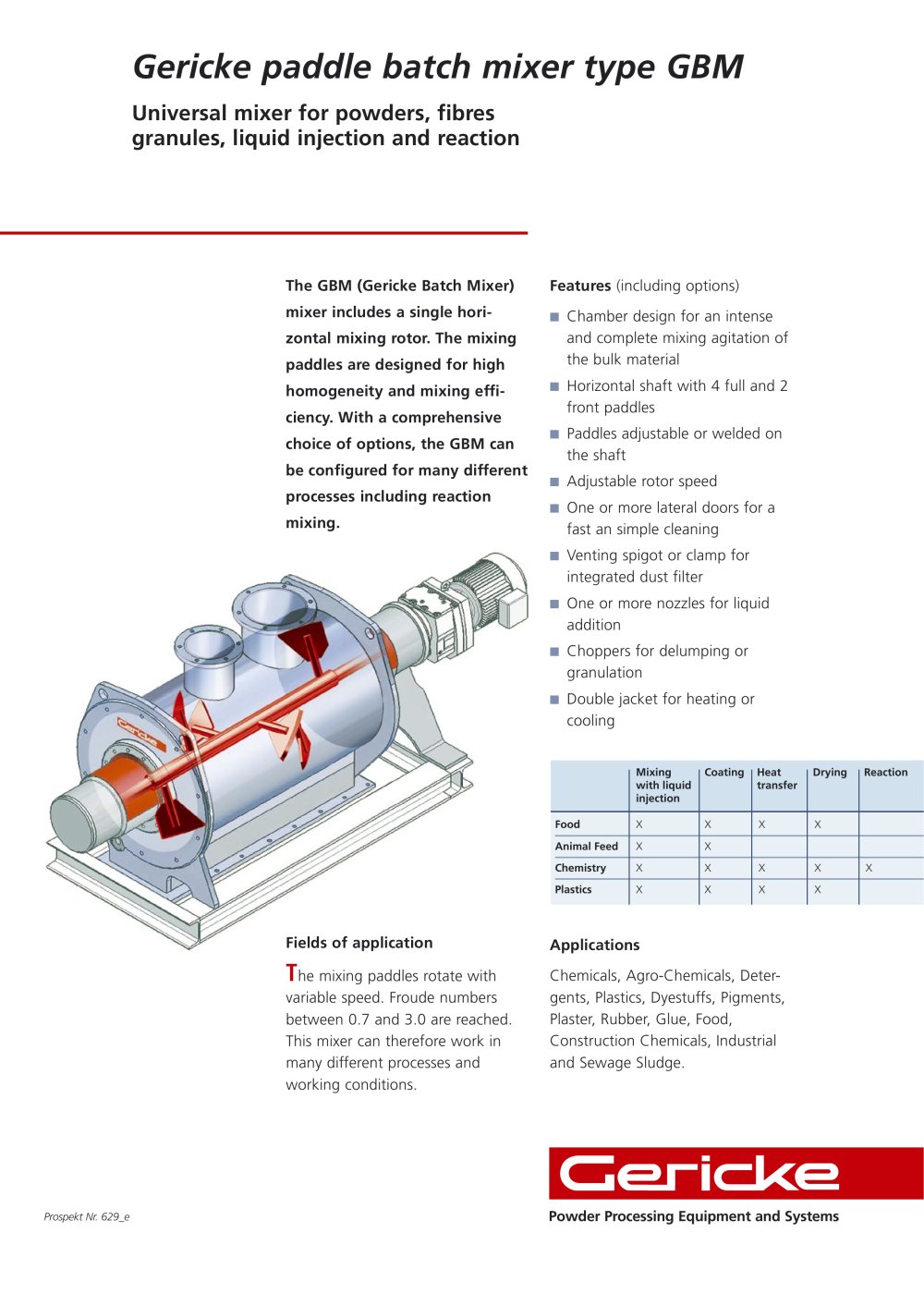

Universal mixer for powders, fibres granules, liquid injection and reaction Fields of application The mixing paddles rotate with variable speed. Froude numbers between 0.7 and 3.0 are reached. This mixer can therefore work in many different processes and working conditions. Features (including options) ¡ Chamber design for an intense and complete mixing agitation of the bulk material ¡ Horizontal shaft with 4 full and 2 front paddles ¡ Paddles adjustable or welded on the shaft ¡ Adjustable rotor speed ¡ One or more lateral doors for a fast an simple cleaning ¡ Venting spigot or clamp for integrated dust filter ¡ One or more nozzles for liquid addition ¡ Choppers for delumping or granulation ¡ Double jacket for heating or cooling Gericke paddle batch mixer type GBM The GBM (Gericke Batch Mixer) mixer includes a single horizontal mixing rotor. The mixing paddles are designed for high homogeneity and mixing efficiency. With a comprehensive choice of options, the GBM can be configured for many different processes including reaction mixing. Applications Chemicals, Agro-Chemicals, Detergents, Plastics, Dyestuffs, Pigments, Plaster, Rubber, Glue, Food, Construction Chemicals, Industrial and Sewage Sludge. Mixing Coating Heat Drying Reaction with liquid transfer injection Food X X X X Animal Feed X X Chemistry X X X X X Plastics X X X X Powder Processing Equipment Prospekt Nr. 629_e and Systems

Open the catalog to page 1

Powder Processing Equipment and Systems Integrated batch mixing solutions Rotor with paddle; “Tulip“-type delumper Working principle The rotating paddles divide and blend sequentially the mass of product and generate a quick and intense movement of each particle through the mixing chamber (convection). Due to the defined angle of the paddles, the mixer shows an excellent axial and radial dispersion. Using choppers, additional energy is applied to the product to break up lumps and ensure the dispersion of any agglomerates or liquids. They are also used for granulation processes as well. The...

Open the catalog to page 2
