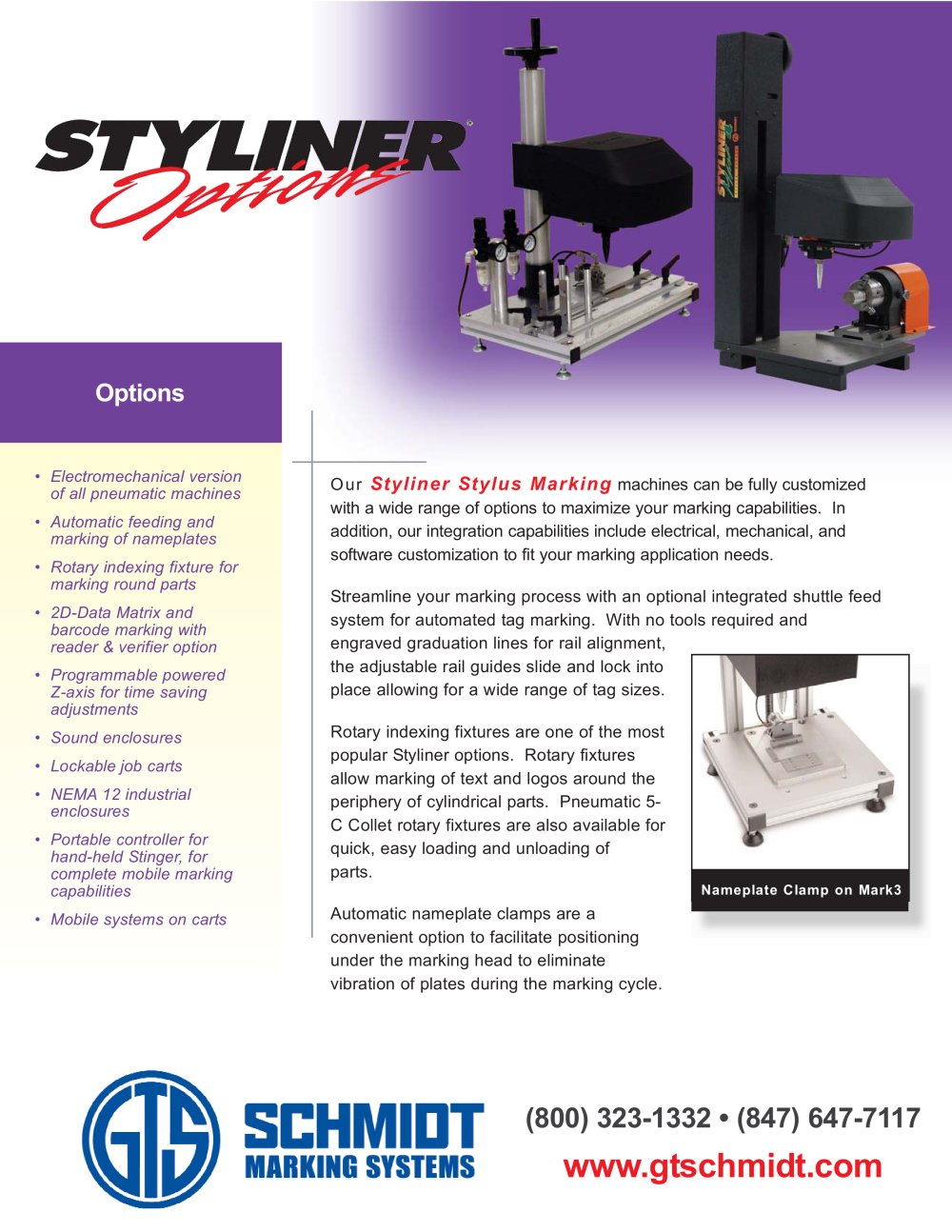

Styliner Dot Matrix Marker Options
2Pages

Electromechanical versionof all pneumatic machines ?Automatic feeding andmarking of nameplates?Rotary indexing fixture formarking round parts?2D-Data Matrix andbarcode marking with reader & verifier option?Programmable poweredZ-axis for time saving adjustments?Sound enclosures ?Lockablejob carts ?NEMA12 industrialenclosures?Portable controller forhand-held Stinger, for complete mobile marking capabilities?Mobile systems on carts Our > machines can be fully customizedwith a wide range of options to maximize your marking capabilities. In addition, our integration capabilities include electrical, mechanical, and software customization to fit your marking application needs. Streamline your marking process with an optional integrated shuttle feedsystem for automated tag marking. With no tools required and engraved graduation lines for rail alignment, the adjustable rail guides slide and lock into place allowing for a wide range of tag sizes.Rotary indexing fixtures are one of the mostpopular Styliner options. Rotary fixtures allow marking of text and logos around the periphery of cylindrical parts. Pneumatic 5- C Collet rotary fixtures are also available for quick, easy loading and unloading of parts.Automatic nameplate clamps are aconvenient option to facilitate positioning under the marking head to eliminate vibration of plates during the marking cycle. > Nameplate Clamp on Mark3

Multi-head Styliner marking station Amanufacturer of oil drill rock bit cones was looking for a marking solution that would increase their production rate and reduce operator physical labor. Their challenge was to incorporate a piece of equipment capable of handling their wide range of part sizes, and to simultaneously place individual marks in three different locations on each part. So the engineering team at Schmidt Marking Systems developed a one-of-a-kind adjustable, programmable, multi-head marking station.Portability was required to meet the needs of anautomotive manufacturer for...
