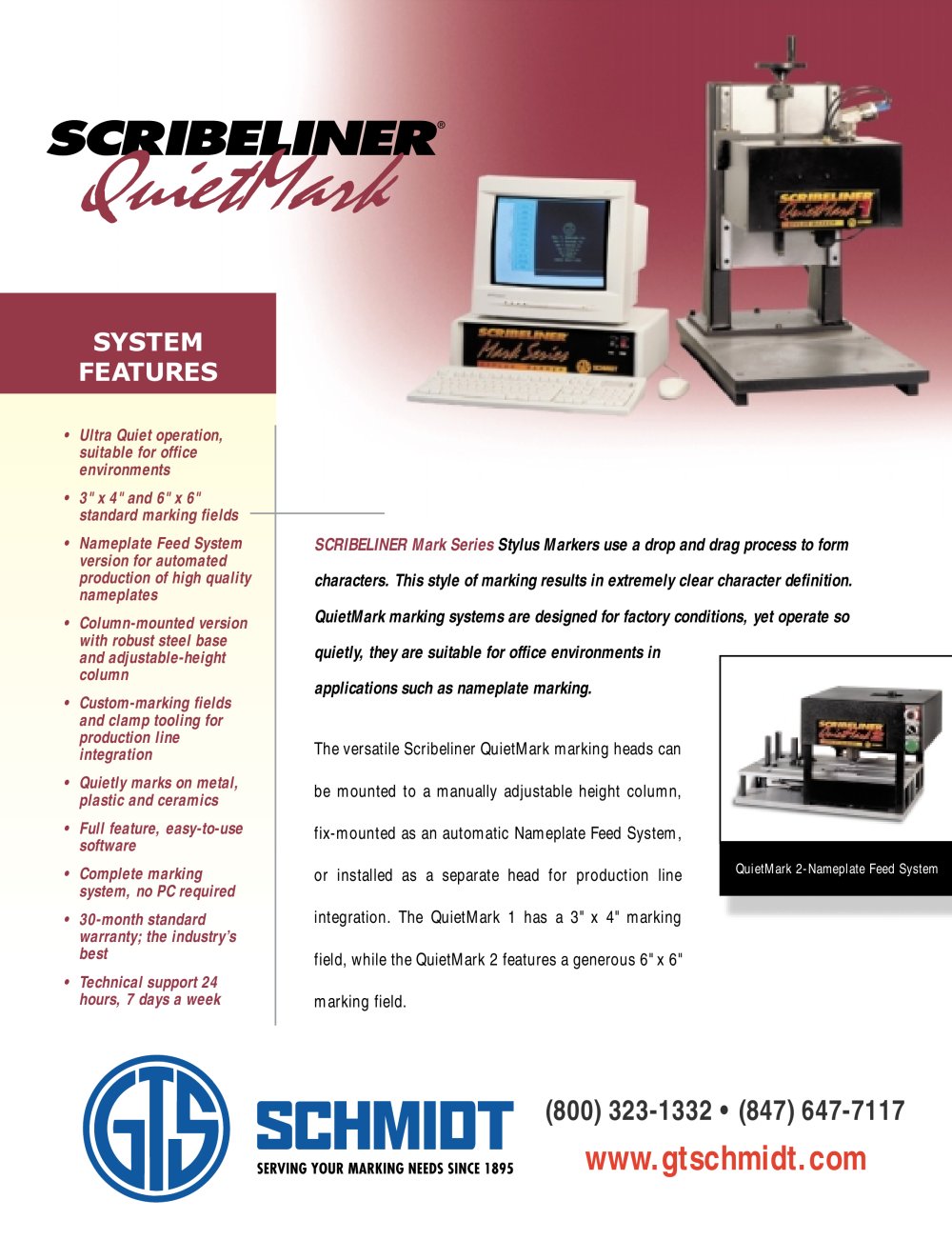

SCRIBELINER Mark Series

Product catalog summary

Overview: The Scribeliner Mark Series Stylus Markers utilize a drop and drag process for character formation, ensuring clear character definition. The QuietMark marking systems are designed for both factory and office environments, suitable for applications like nameplate marking.

Specifications:

QuietMark 1: 3" x 4" marking field.
QuietMark 2: 6" x 6" marking field.
Ultra-quiet operation suitable for office use.
Custom marking fields and clamp tooling available.
Electrical Service: 110VAC; Pneumatic Service: 85 psi, 2-3 SCFM average.
Stylus Type: Drop and drag style with carbide tip.
Character Height: Variable from .040" to marking field limit.
Marking Speed: 3 characters per second.
Warranty: 30-months on parts and workmanship.

System Features:

Complete marking system, no PC required.
Full-feature, easy-to-use software.
Technical support available 24/7.
Menu-driven WYSI/WYG operation.
Variable speed, character size, and marking depth.
Five standard fonts with AutoCad image import capabilities.
Automatic date/time codes and serial marking.
Full password security for up to 16 users.

Options:

Custom parts fixture and magnetic clamp fixture.
Nameplate holding clamp and shuttle feed system with de-stacker.
Additional fonts and StyleWrite for Windows operating software.
Bar code scanner compatibility.

Applications: The Scribeliner QuietMark marking heads are suitable for integration into production lines, with custom-engineered marking fields and clamp tooling designed for high production and ergonomic use, such as in automotive applications.
