LASER MARKING SYSTEMS

Product catalog summary

Overview
Schmidt’s MicroLase Systems represent a significant advancement in industrial laser marking, offering a fast, flexible, and efficient method for permanently marking a wide range of materials including metals, glass, plastics, ceramics, silicon, and organics. These systems are widely used for part identification, traceability, and non-marking applications such as cutting and drilling.

System Accessories
The systems come with various accessories to enhance functionality, including powered and programmable Z-Axis, rotary indexing tables, 2D data matrix and barcode reading and verifying, scanners, cameras, fume extractors, additional side doors, nameplate feed systems, X-Y tables, 5-C collet and 3 jaw chuck rotary indexers, multiple lens sizes, light curtains, and manual and powered doors.

Applications
Schmidt lasers are used across multiple industries such as automotive, aerospace, dental, medical, energy, solar, jewelry, electronics, and machine tools. They are suitable for both marking and non-marking applications, providing capabilities like engraving, ablating, foaming, and annealing.

Technical Specifications
The laser systems operate at a wavelength of 1064 nm using Nd:YVO4 as the laser medium. They offer average output power options of 6W, 10W, 20W, and 60W, with pulse repetition rates ranging from 10 kHz to 300 kHz. Beam quality varies with M2 values from less than 2 to less than 6, and cooling methods include air and internal water cooling.

Scanning Heads
Focusing lens options range from 110 mm to 420 mm, with corresponding working areas from 60 x 60 mm to 290 x 290 mm and working distances from 118 mm to 493 mm.

Compliance and Support
Schmidt laser systems can be integrated into various setups, including tabletop marking systems and automated manufacturing cells. They can be operated in a Class I certified enclosure or a Class 4 environment with protective eyewear. The company is ISO 9001:2000 certified and provides support for a wide range of customers.

Catalog excerpts

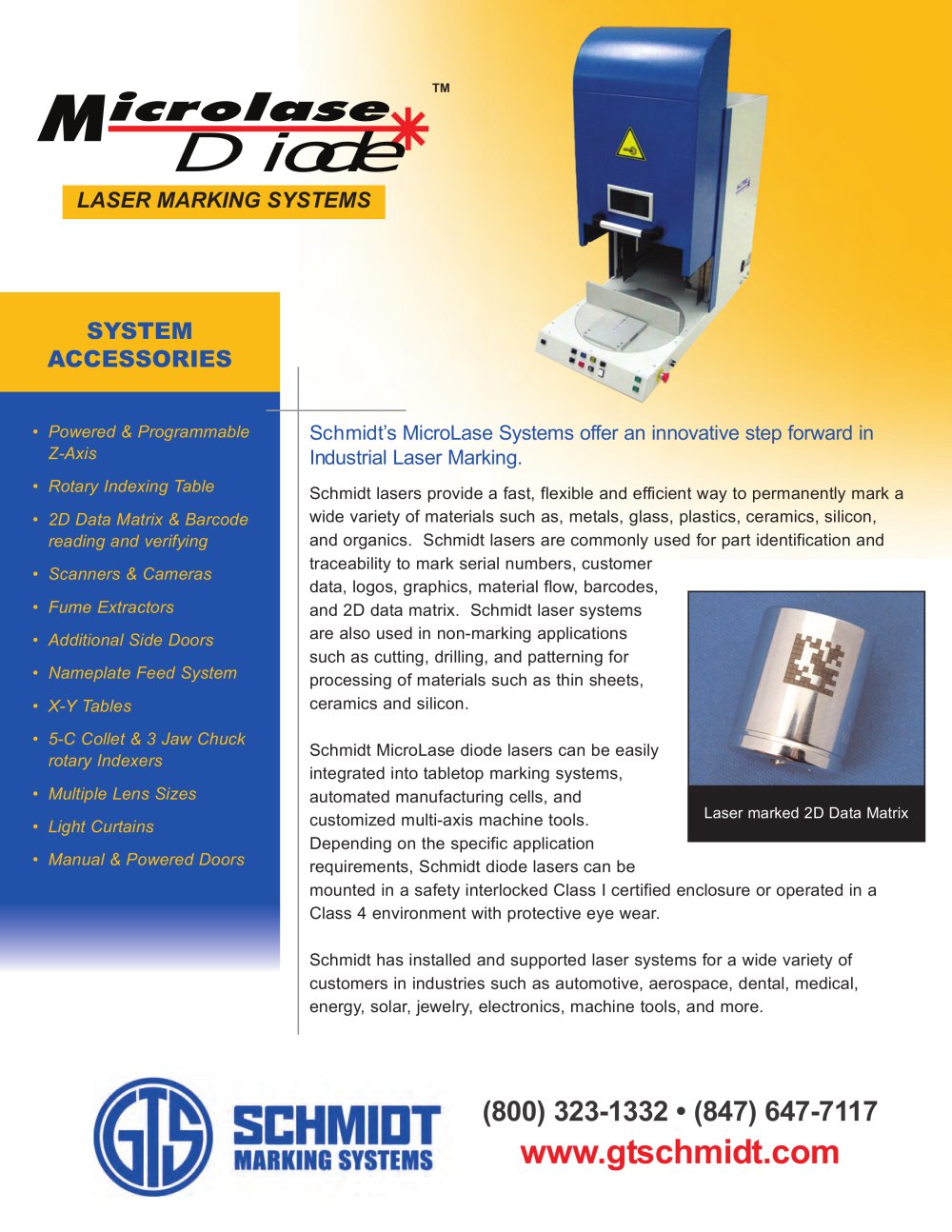

Powered & ProgrammableZ-Axis?Rotary Indexing Table ?2D Data Matrix & Barcodereading and verifying?Scanners & Cameras ?Fume Extractors ?Additional Side Doors ?Nameplate Feed System ?X-YTables ?5-C Collet & 3 Jaw Chuckrotary Indexers?Multiple Lens Sizes ?Light Curtains ?Manual & Powered Doors > Schmidt lasers provide a fast, flexible and efficient way to permanently mark awide variety of materials such as, metals, glass, plastics, ceramics, silicon, and organics. Schmidt lasers are commonly used for part identification and traceability to mark serial numbers, customer data, logos, graphics, material flow, barcodes, and 2D data matrix. Schmidt laser systems are also used in non-marking applications such as cutting, drilling, and patterning for processing of materials such as thin sheets, ceramics and silicon.Schmidt MicroLase diode lasers can be easilyintegrated into tabletop marking systems, automated manufacturing cells, and customized multi-axis machine tools. Depending on the specific application requirements, Schmidt diode lasers can be mounted in a safety interlocked Class I certified enclosure or operated in a Class 4 environment with protective eye wear.Schmidt has installed and supported laser systems for a wide variety ofcustomers in industries such as automotive, aerospace, dental, medical, energy, solar, jewelry, electronics, machine tools, and more. > Laser marked 2D Data Matrix
