Polarization Synthesizer/Analyzer – PolaFlex™

Polarization Synthesizer/Analyzer – PolaFlex™
2Pages

Catalog excerpts

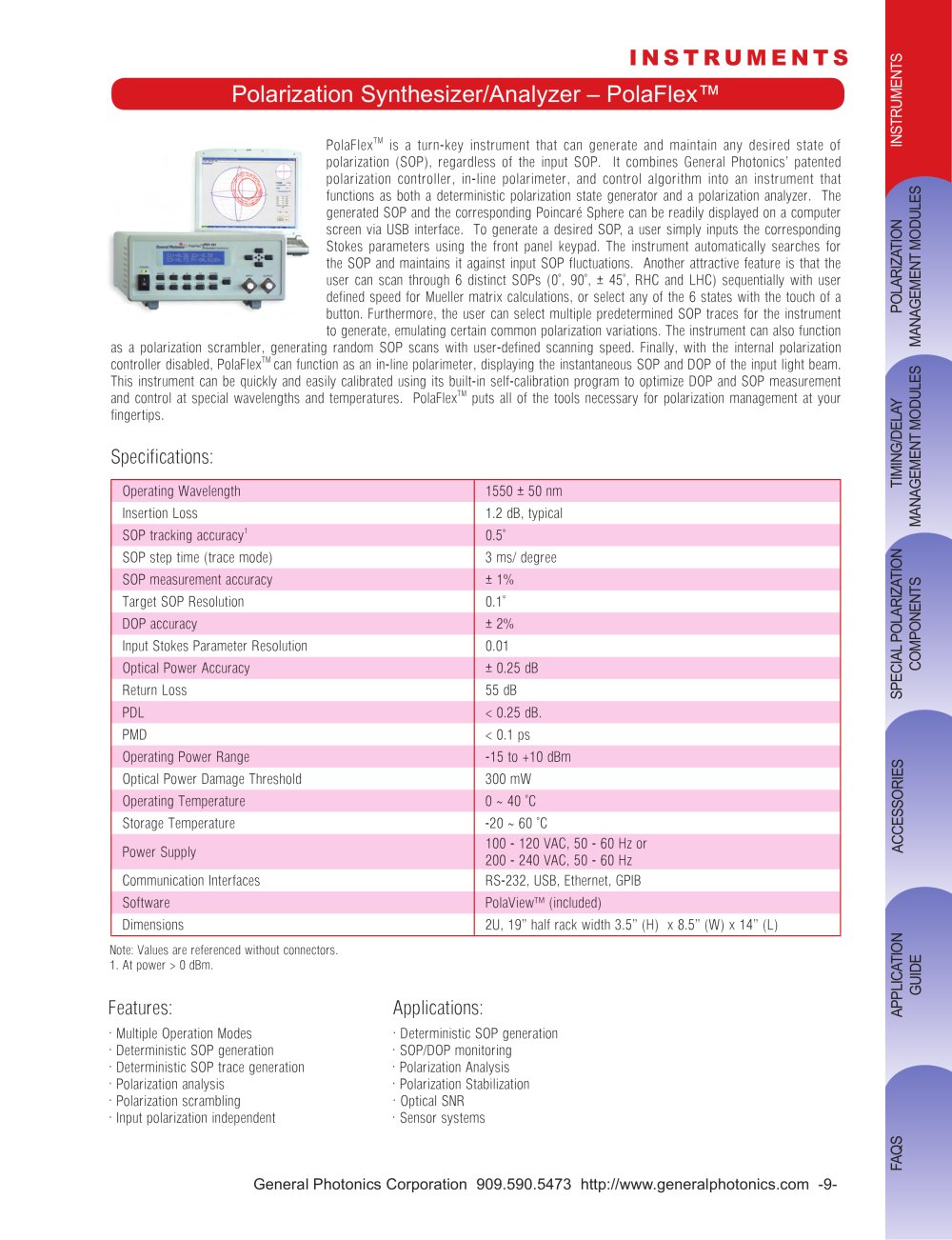

Polarization Synthesizer/Analyzer – PolaFlex™ - 1

SPECIAL POLARIZATION INSTRUMENTS COMPONENTS APPLICATION ACCESSORIES GUIDE FAQS TIMING/DELAY MANAGEMENT MODULES POLARIZATION MANAGEMENT MODULES General Photonics Corporation 909.590.5473 http://www.generalphotonics.com -9- Specifications: Operating Wavelength 1550 ± 50 nm Insertion Loss 1.2 dB, typical SOP tracking accuracy1 0.5° SOP step time (trace mode) 3 ms/ degree SOP measurement accuracy ± 1% Target SOP Resolution 0.1° DOP accuracy ± 2% Input Stokes Parameter Resolution 0.01 Optical Power Accuracy ± 0.25 dB Return Loss 55 dB PDL < 0.25 dB. PMD < 0.1 ps Operating Power Range -15 to +10 dBm Optical Power Damage Threshold 300 mW Operating Temperature 0 ~ 40 °C Storage Temperature -20 ~ 60 °C Power Supply 100 - 120 VAC, 50 - 60 Hz or 200 - 240 VAC, 50 - 60 Hz Communication Interfaces RS-232, USB, Ethernet, GPIB Software PolaView™ (included) Dimensions 2U, 19” half rack width 3.5” (H) x 8.5” (W) x 14” (L) Note: Values are referenced without connectors. 1. At power > 0 dBm. Features: Applications: . Multiple Operation Modes . Deterministic SOP generation . Deterministic SOP generation . SOP/DOP monitoring . Deterministic SOP trace generation . Polarization Analysis . Polarization analysis . Polarization Stabilization . Polarization scrambling . Optical SNR . Input polarization independent . Sensor systems PolaFlexTM is a turn-key instrument that can generate and maintain any desired state of polarization (SOP), regardless of the input SOP. It combines General Photonics’ patented polarization controller, in-line polarimeter, and control algorithm into an instrument that functions as both a deterministic polarization state generator and a polarization analyzer. The generated SOP and the corresponding Poincaré Sphere can be readily displayed on a computer screen via USB interface. To generate a desired SOP, a user simply inputs the corresponding Stokes parameters using the front panel keypad. The instrument automatically searches for the SOP and maintains it against input SOP fluctuations. Another attractive feature is that the user can scan through 6 distinct SOPs (0°, 90°, ± 45°, RHC and LHC) sequentially with user defined speed for Mueller matrix calculations, or select any of the 6 states with the touch of a button. Furthermore, the user can select multiple predetermined SOP traces for the instrument to generate, emulating certain common polarization variations. The instrument can also function as a polarization scrambler, generating random SOP scans with user-defined scanning speed. Finally, with the internal polarization controller disabled, PolaFlexTM can function as an in-line polarimeter, displaying the instantaneous SOP and DOP of the input light beam. This instrument can be quickly and easily calibrated using its built-in self-calibration program to optimize DOP and SOP measurement and control at special wavelengths and temperatures. PolaFlexTM puts all of the tools necessary for polarization management at your fingertips. I N S T R U M E N T S Polarization Synthesizer/Analyzer – PolaFlex™

Open the catalog to page 1

Polarization Synthesizer/Analyzer – PolaFlex™ - 2

INSTRUMENTS SPECIAL POLARIZATION ACCESSORIES COMPONENTS APPLICATION FAQS GUIDE TIMING/DELAY MANAGEMENT MODULES POLARIZATION MANAGEMENT MODULES - 10- General Photonics Corporation 909.590.5473 http://www.generalphotonics.com Typical Performance Data: Polarization stabilization Fig. 1 Input polarization pattern: saw wave scramble at 5 Hz, taken over 20 sec. Fig. 2 Output polarization stabilized by PSY-101 against the same polarization scrambled input, taken over 20 sec. Special polarization state/trace generation Figure 3. Poincaré sphere pole state generation Figure 4. Trace scans Scrambling...

Open the catalog to page 2
