Fiber Optic Depolarizer

Fiber Optic Depolarizer
2Pages

Catalog excerpts

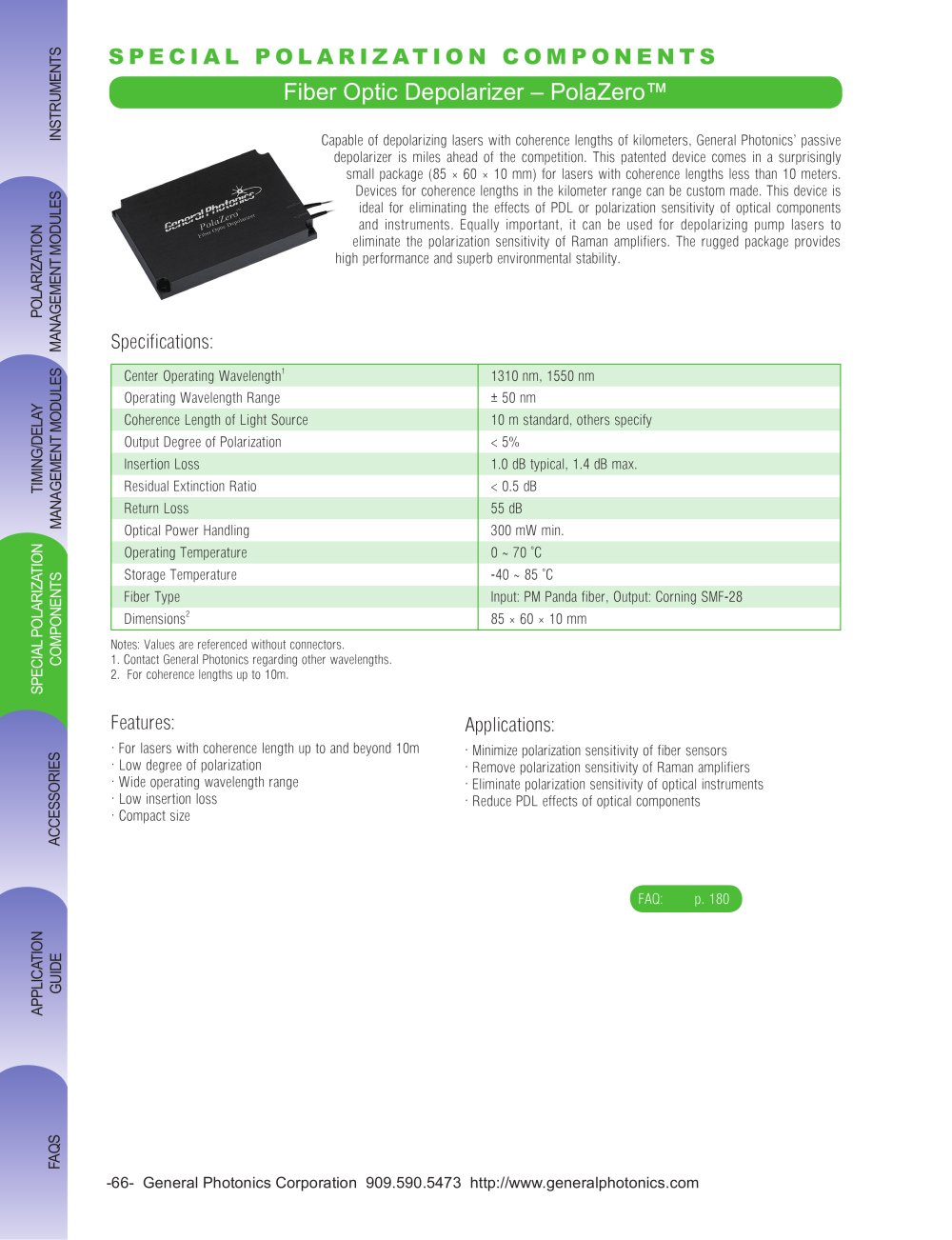

INSTRUMENTS SPECIAL POLARIZATION ACCESSORIES COMPONENTS APPLICATION FAQS GUIDE TIMING/DELAY MANAGEMENT MODULES POLARIZATION MANAGEMENT MODULES - 66- General Photonics Corporation 909.590.5473 http://www.generalphotonics.com Capable of depolarizing lasers with coherence lengths of kilometers, General Photonics’ passive depolarizer is miles ahead of the competition. This patented device comes in a surprisingly small package (85 × 60 × 10 mm) for lasers with coherence lengths less than 10 meters. Devices for coherence lengths in the kilometer range can be custom made. This device is ideal for eliminating the effects of PDL or polarization sensitivity of optical components and instruments. Equally important, it can be used for depolarizing pump lasers to eliminate the polarization sensitivity of Raman amplifiers. The rugged package provides high performance and superb environmental stability. Specifications: Center Operating Wavelength1 1310 nm, 1550 nm Operating Wavelength Range ± 50 nm Coherence Length of Light Source 10 m standard, others specify Output Degree of Polarization < 5% Insertion Loss 1.0 dB typical, 1.4 dB max. Residual Extinction Ratio < 0.5 dB Return Loss 55 dB Optical Power Handling 300 mW min. Operating Temperature 0 ~ 70 °C Storage Temperature -40 ~ 85 °C Fiber Type Input: PM Panda fiber, Output: Corning SMF-28 Dimensions2 85 × 60 × 10 mm Notes: Values are referenced without connectors. 1. Contact General Photonics regarding other wavelengths. 2. For coherence lengths up to 10m. Features: . For lasers with coherence length up to and beyond 10m . Low degree of polarization . Wide operating wavelength range . Low insertion loss . Compact size Fiber Optic Depolarizer – PolaZero™ SPECIAL POLARIZATION COMPONENTS Applications: . Minimize polarization sensitivity of fiber sensors . Remove polarization sensitivity of Raman amplifiers . Eliminate polarization sensitivity of optical instruments . Reduce PDL effects of optical components FAQ: p. 180

Open the catalog to page 1

SPECIAL POLARIZATION INSTRUMENTS COMPONENTS APPLICATION ACCESSORIES GUIDE FAQS TIMING/DELAY MANAGEMENT MODULES POLARIZATION MANAGEMENT MODULES General Photonics Corporation 909.590.5473 http://www.generalphotonics.com -67- Typical Performance Data: Figure 1. Degree of Polarization (DOP) as function of wavelength and temperature. Dimensions: Ordering Information: See pages 40, 42 and 44 for polarization scramblers Fiber Optic Depolarizer – PolaZero™ SPECIAL POLARIZATION COMPONENTS Visit our online store at www.generalphotonics.com for detailed configuration information, pricing, and...

Open the catalog to page 2
