Bare Fiber Adapter

Bare Fiber Adapter
1Pages

Catalog excerpts

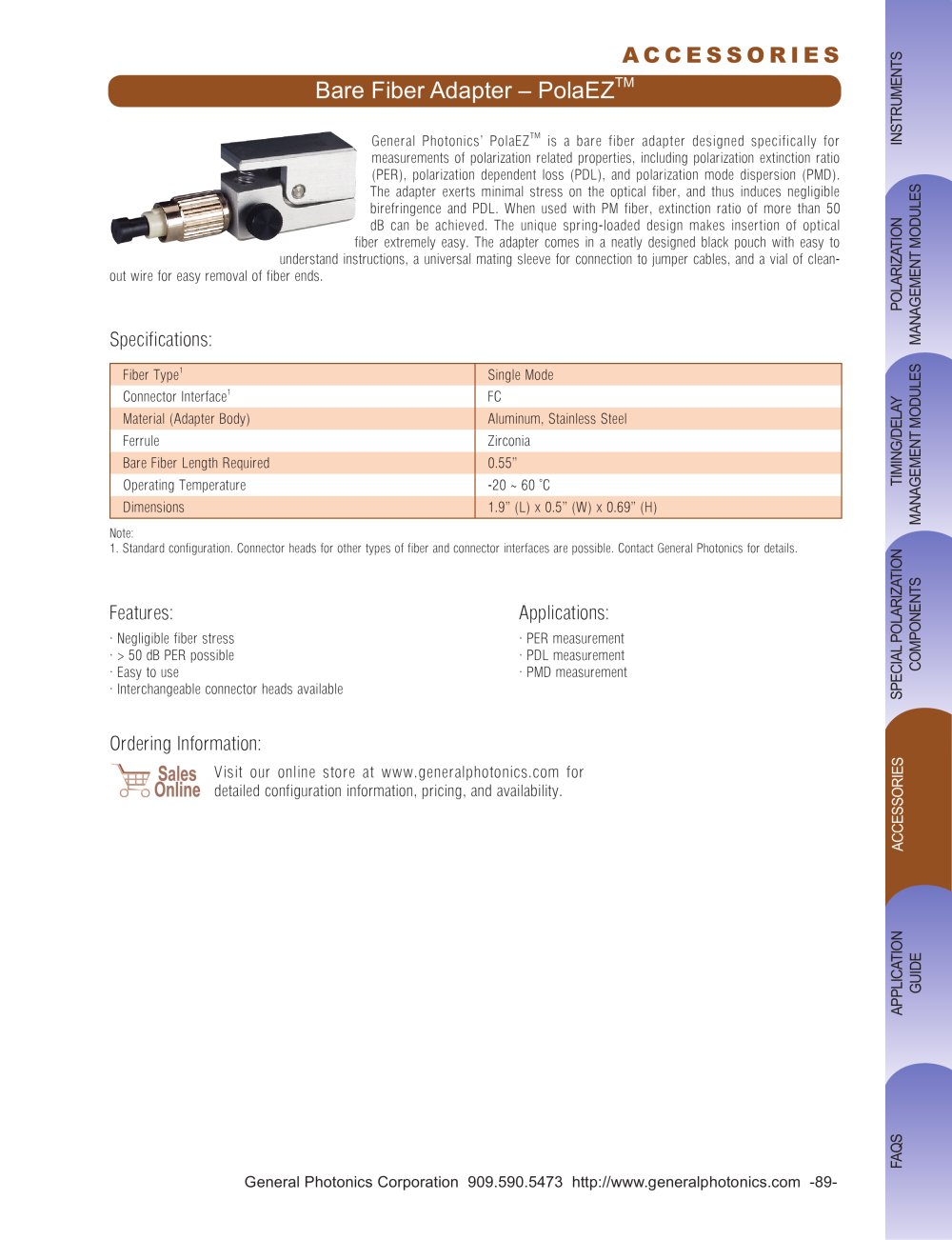

SPECIAL POLARIZATION INSTRUMENTS COMPONENTS APPLICATION ACCESSORIES GUIDE FAQS TIMING/DELAY MANAGEMENT MODULES POLARIZATION MANAGEMENT MODULES General Photonics Corporation 909.590.5473 http://www.generalphotonics.com -89- General Photonics’ PolaEZ™ is a bare fiber adapter designed specifically for measurements of polarization related properties, including polarization extinction ratio (PER), polarization dependent loss (PDL), and polarization mode dispersion (PMD). The adapter exerts minimal stress on the optical fiber, and thus induces negligible birefringence and PDL. When used with PM fiber, extinction ratio of more than 50 dB can be achieved. The unique spring-loaded design makes insertion of optical fiber extremely easy. The adapter comes in a neatly designed black pouch with easy to understand instructions, a universal mating sleeve for connection to jumper cables, and a vial of cleanout wire for easy removal of fiber ends. Specifications: Fiber Type1 Single Mode Connector Interface1 FC Material (Adapter Body) Aluminum, Stainless Steel Ferrule Zirconia Bare Fiber Length Required 0.55” Operating Temperature -20 ~ 60 °C Dimensions 1.9” (L) x 0.5” (W) x 0.69” (H) Features: . Negligible fiber stress . > 50 dB PER possible . Easy to use . Interchangeable connector heads available Applications: . PER measurement . PDL measurement . PMD measurement Note: 1. Standard configuration. Connector heads for other types of fiber and connector interfaces are possible. Contact General Photonics for details. Bare Fiber Adapter – PolaEZTM ACCESSORIES Ordering Information: Visit our online store at www.generalphotonics.com for detailed configuration information, pricing, and availability.
